Pneumatic Spiders are utilized to grip drill pipe, tubing and casing in oil well drilling and repairing.
API 7K Model C CHD E tubing pneumatic spider with slip
Description

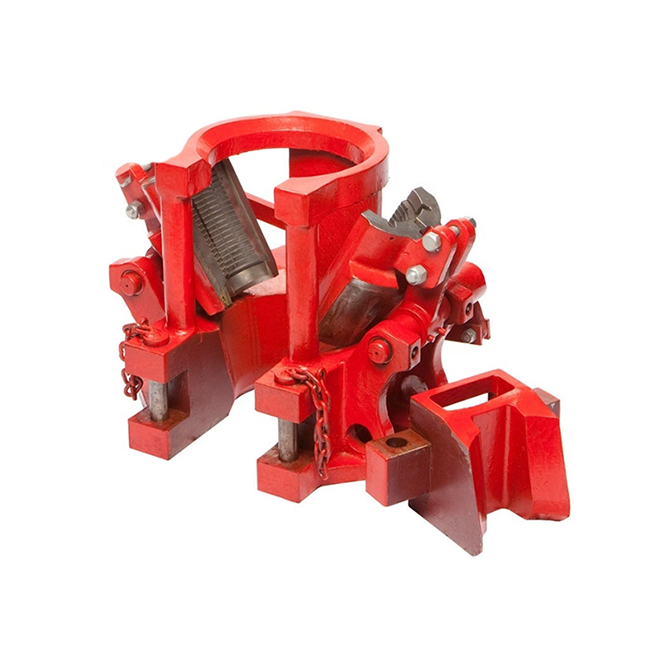

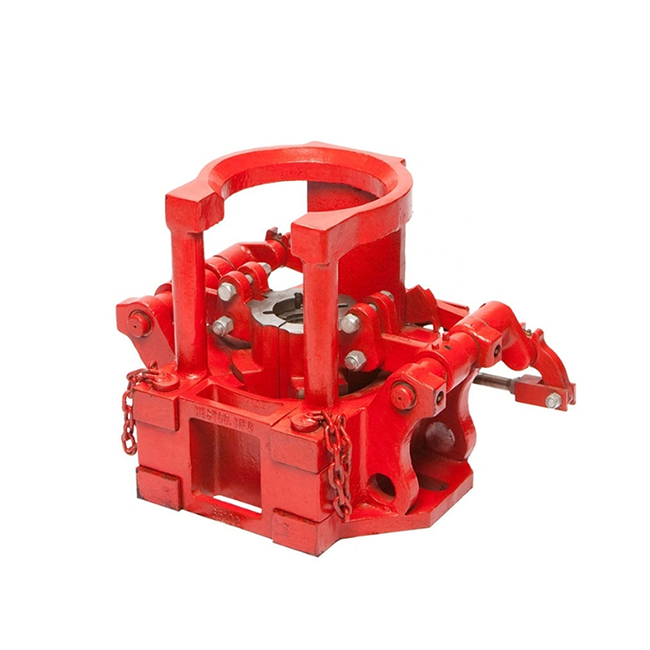

API 7K Model C CHD E tubing pneumatic spider with slip
The Pneumatic Tubing Spider is used for oil well drilling and workover servicing operations. The spider allows the cable pass through during operation. Conforms to API standard. INCLUDE: Type C, CHD, E, and F Designed for heavy duty use. It has a size range of 1.315″ through 5 1/2″ by changing out slip bodies and inserts. It is made of high alloy heat treated steel for strength and resistance to wear.
Features:
**The Pneumatic Spiders are utilized to handle drill pipe and tubing in oil well repairing
**Rated Load Capacity: 80Tons, 120 Tons, 125 Tons,175 Tons
**High Performance, Competitive price
| Model | OD of the tubulars | specification of the slip bodies | Rated Capacity |
|---|---|---|---|
| C | 1.315-31/2 | 31/2 | 80tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| CHD | 1.315-31/2 | 31/2 | 120tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| HD | 1.315-31/2 | 31/2 | 125tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| E | 23/8-31/2 | 31/2 | 175tons |
| 4-51/2 | 51/2 | ||
| 51/2-7 | 7 | ||
| 75/8 | 75/8 (Integral) |
