Description

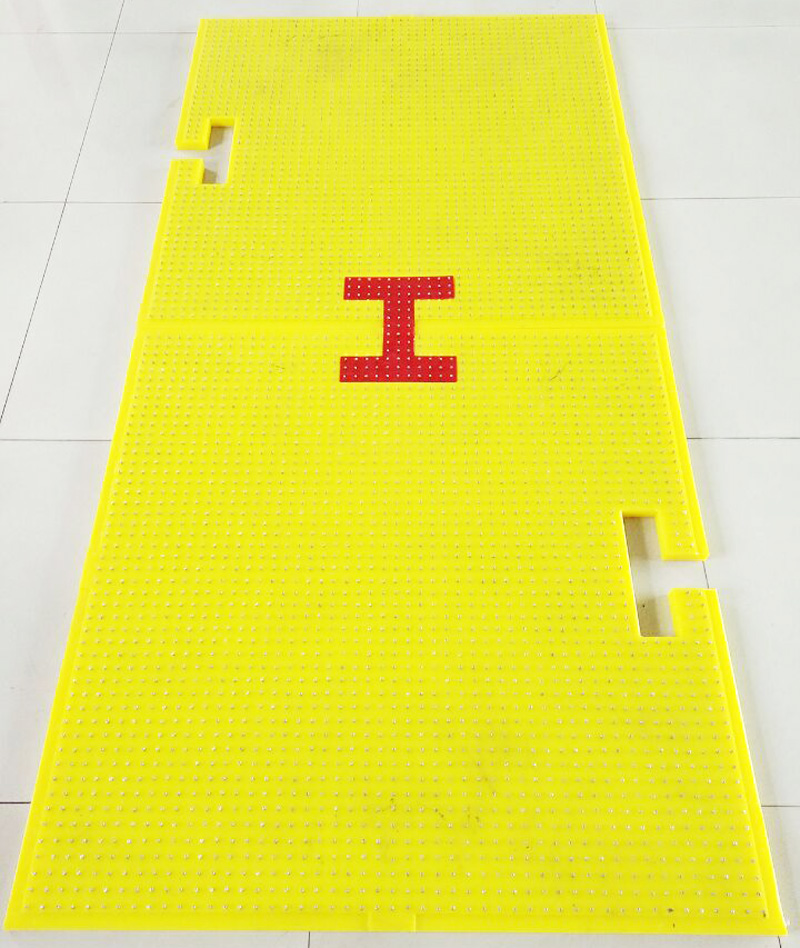

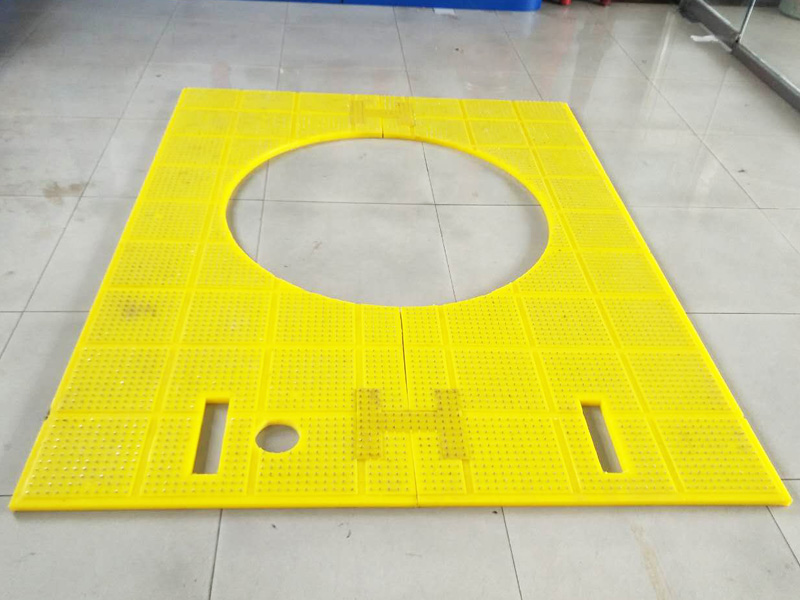

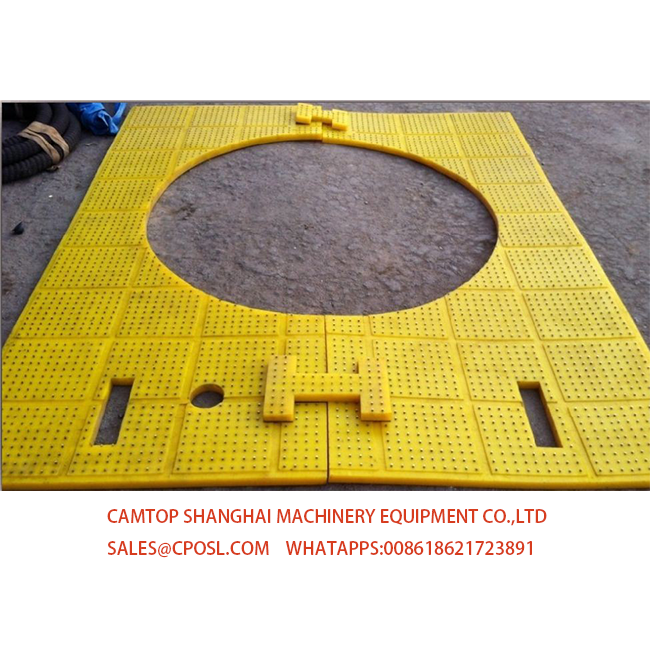

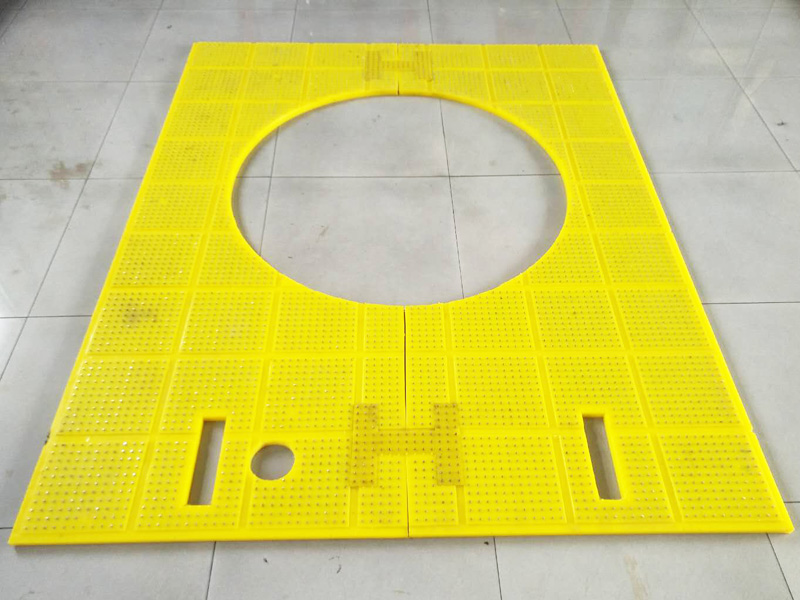

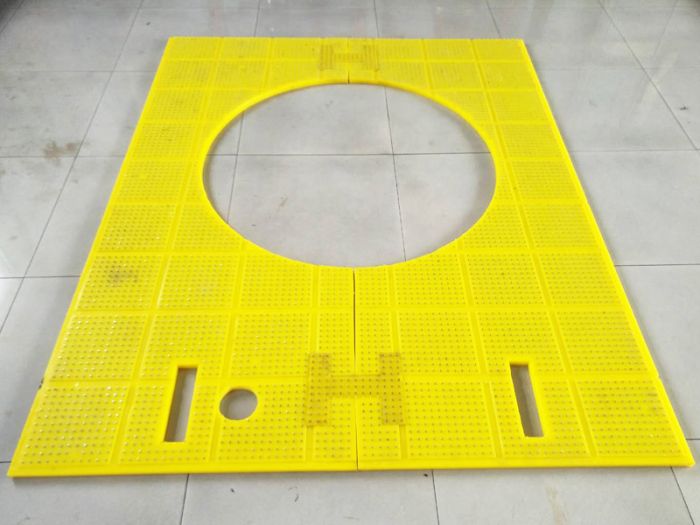

CUSTOM ROTARY DRILLING PLATFORM ANTI-SLIP MAT

General Description:

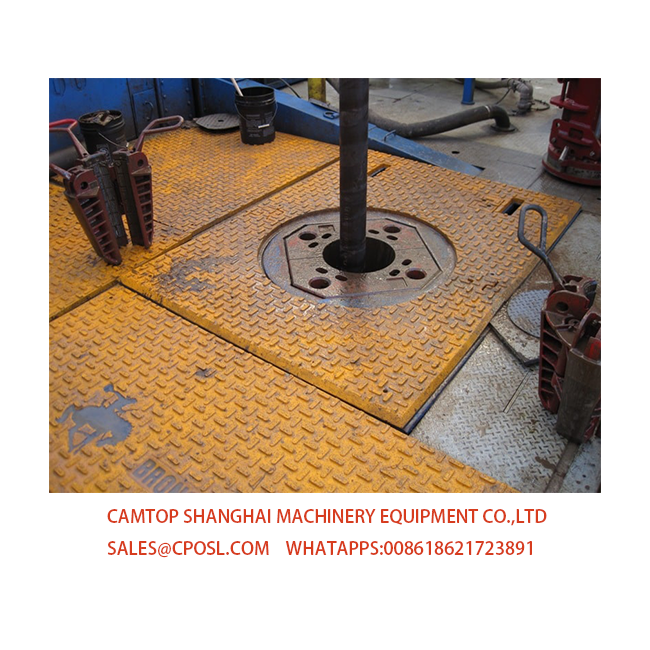

Our anti-slip rotary mats are manufactured to cover all types of rotary tables, available in both standard and custom applications these mats with offer superb level of grip and traction in what is deemed a notoriously hazardous area.

Each mat is manufactured using a custom-blended Polyurethane system, they offer excellent chemical and fire resistance, the high traction surface is supplied by a combination of stainless-steel studs and high friction gritted polyurethane coatings.  Molded channels within the surface of the mat surface allows for positive drainage and fluid run off.

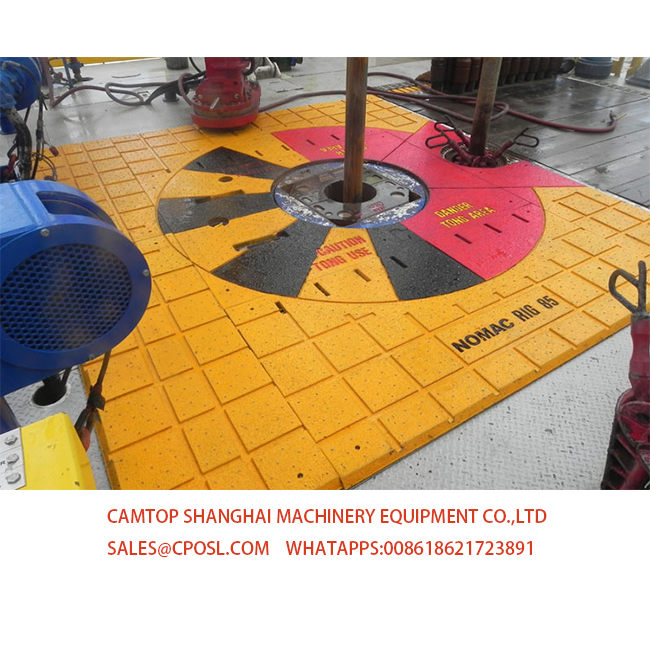

Mats can be supplied any color and can incorporate various safety/hazard identification messages.

Specification:

Item
Parameters
Break Strength / MPA
50
Elongation at Break. %
550
Hardness ( Shore A )
93 +/- 3
Tearing Strength.Kn/m
105.0
Rebounding. %
20
Model Length. mm Width. mm Diameter of Center Bore. mm Width/mm
ZP – 175 1690 1280 780 30
ZP – 205 2000 1490 830 30
ZP – 275 2100 1670 1050 30
ZP – 375 2205 1810 1290

Rotary Table Mate Feature:

  1. Good anti-slip effect made by high pure polyurethane raw materials.
  2. Superior wear abrasive effect makes the slip mats long service life and safe usage.
  3. Neatly arranged nails and PU protrusions make the rig mat not only anti-skid, but have good sewage discharge effect.
  4. Nails made by Carbon/Stainless steel with good anti-corrosion and high strength can be used for long time.
  5. Solid or hollow steel nails can be choose as different weight requirements on the oil drill platform.
  6. The high temperature and anti-flammable PU raw materials helps for the extreme oil extraction environment.
  7. Warning yellow color helps the construction site obviously so that can easily found and safe enough.
  8. PU plate surface is smooth enough without water absortion so the oil and water or other liquid can be easily removed from the plate, so the construction places always clean and safe enough.
  9. We have the most professional engineering and design or modify your drawing as the exactly requirements.
  10. Accurate size as customers desire so that the anti-Slip Rotary Table Mat is easily installation
