AISI 4130 Crosses are available in a full ranges of sizes and with standard pressure ratings of 5,000 psi and 10,000 psi. All Marcore long sweep manifold fittings, including crosses, are manufactured in the China to stringent quality standards.
AISI 4130 Long Sweep Full Flow Cross
Description
AISI 4130 Long Sweep Full Flow Cross

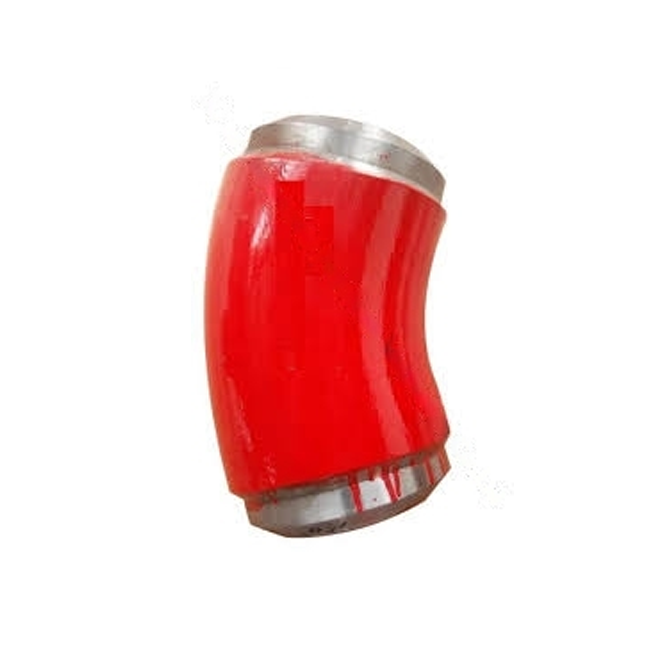

High Pressure Long Sweep Manifold Fittings are manufactured from wrought steel. All fitting are manufactured from AISI 4130 wrought steel forgings.Crosses and Tees are closed die forged to ensure they have a well defined and correctly contoured grain flow, high integrity and uniformity of shape. Elbows (90 degree and 45 degree) are produced from tubulars or hollow bar, hot formed on purpose-made bending machines or forged in closed dies.
| NB: Long Sweep Full Flow Cross | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 2″ XXS | 16 | 8 | 8 | 1.5 | 2.37 | 4.5 |
| 3″ XXS | 16 | 8 | 8 | 2.3 | 3.5 | 4.5 |
| 4″ XXS | 22 | 11 | 11 | 3.15 | 4.5 | 5.56 |
| 5″ XXS | 24 | 12 | 12 | 4.06 | 5.56 | 6.63 |
| 6″ XXS | 30 | 15 | 15 | 4.9 | 6.63 | 7.75 |
| 5.5″ OD x 3.0″ ID | 24 | 12 | 12 | 3.06 | 5.5 | 6.63 |
| 6.75 OD x 5.00″ ID | 30 | 15 | 15 | 5 | 6.75 | 7.75 |
