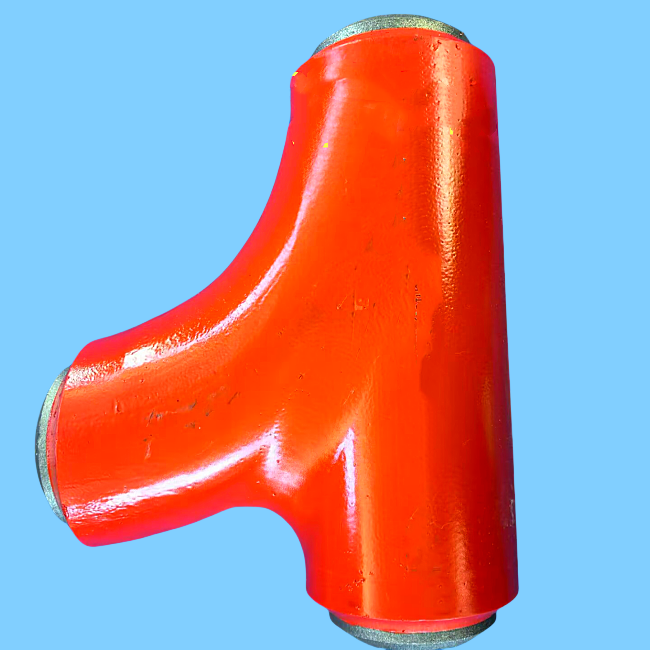

AISI 4130 2″,3″,4″5, SCH160, XXS Long Sweep tee

What is AISI 4130 Long Sweep Tees ?

The AISI 4130 Long Sweep Tee is utilized in various applications due to its cryogenic and high-temperature resistance as well as its suitability for high-pressure environments. It is commonly used in the manufacturing of Choke and Kill manifolds, Control Panels, Mud Manifolds, and Cement Manifolds, along with the production of Mud / Gas Separators, Pipe Line End Terminations, Manifold Equipment’s, and in the Oil & Gas and Oil Exploration industries. Additionally, it finds applicability in Christmas Tree Equipments, Well Test Equipments, Rig Projects, Pipe Line end Manifolds, Pipe Line end Terminations, Subsea Wellhead, Mudline Suspension System, and various other areas. The products from Camtop Shangah Machinery Co., Ltd are manufactured using superior quality raw materials to meet the requirements of their clients, with a focus on ensuring high product quality and providing excellent customer service.

Specification For 4130 Long Sweep Tees

• Service Class: Standard or Sour Service
• Material: AISI 4130
• Weld Ends: ANSI B16.25
• BW Tolerance: ANSI B16.9
• Material Yield Strength: 85,000 PSI minimum
• Material Tensile Strength: 105,000 PSI minimum
• Operating temperature: -46 to + 180°C (API temperature class L to X)
