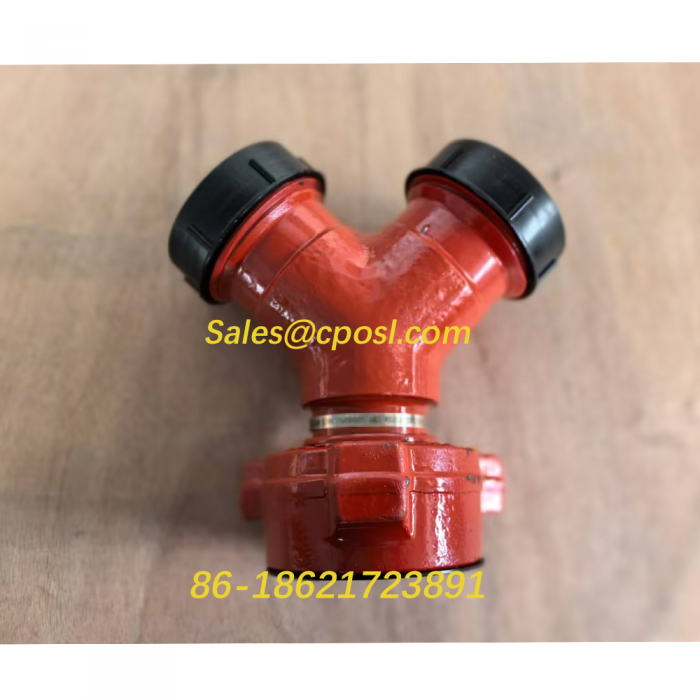

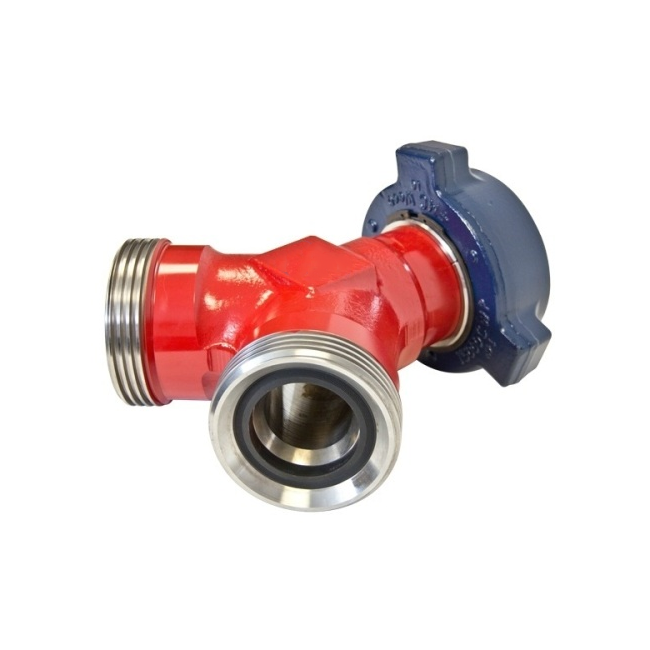

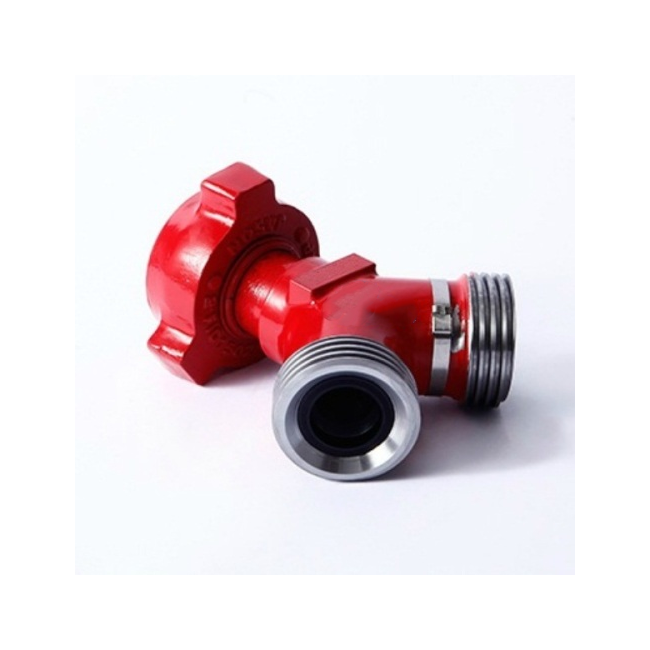

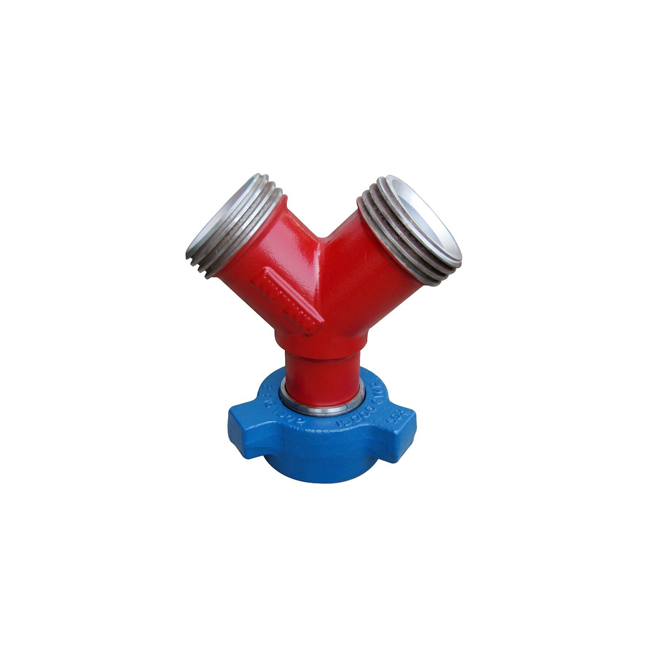

High Quality Y Type Joint Integral Fittings with Hammer Union 2′ ′ 3′ ′

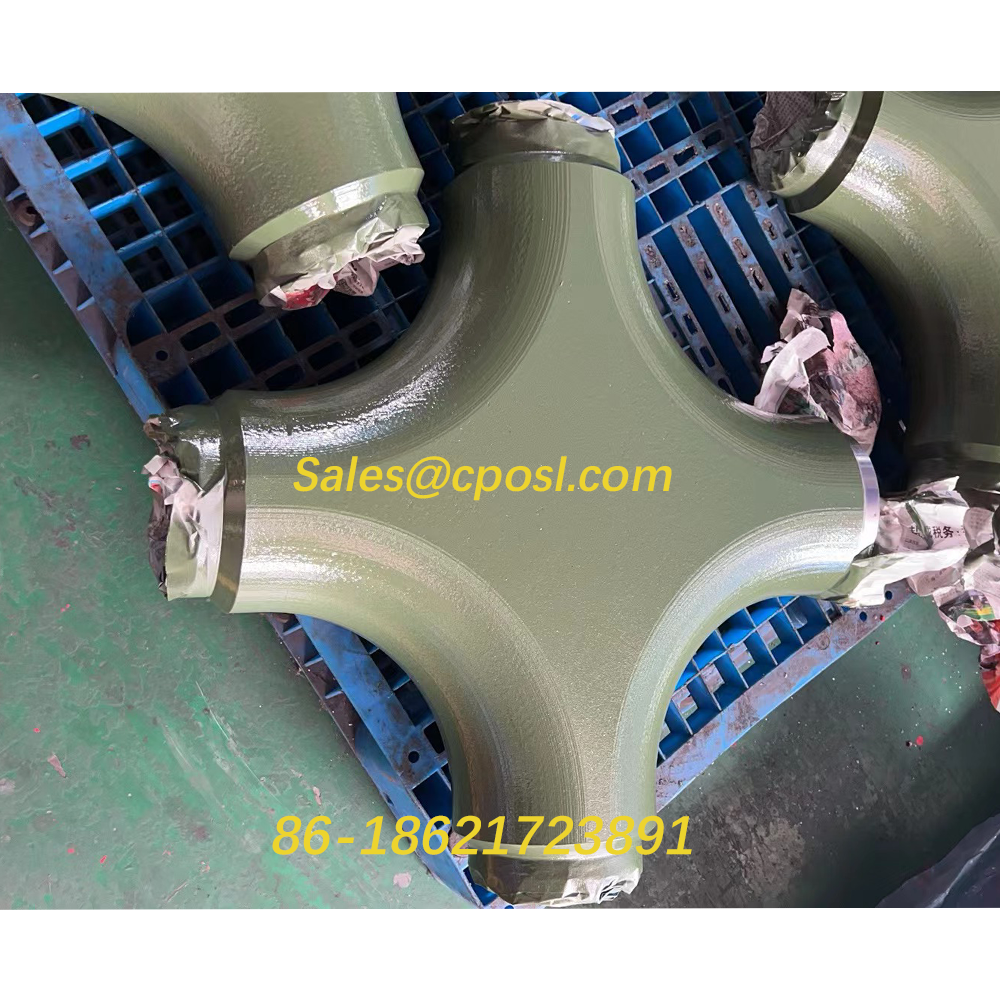

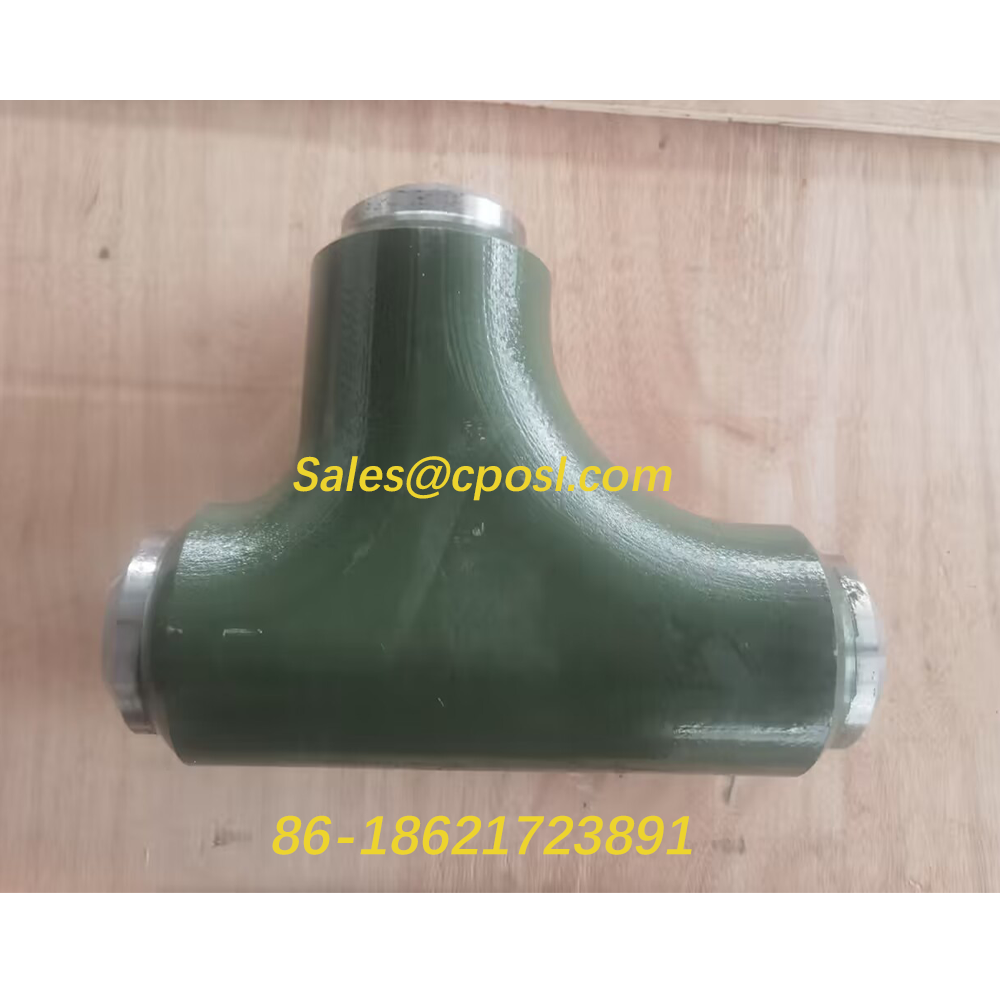

Integral Fittings including tees, crosses, elbows and crossovers, widely used for connection units in hard plumbing applications. We offer a variety of high pressure integral union configurations and pressure ratings in forged Integral Fittings. Our products are manufactured from forged alloy steel. Our Integral Fittings are great for applications where an intersecting flow is needed. We could provide these with carious end connections, and meet the demand of standard or sour gas service.

Features:

* Our Integral Fittings are made from high grade steel, fully heat treated and hardened to ensure superior mechanical properties,
* These products can be manufactured with various end connections.
* Our Integral Fittings are suitable for both standard and sour gas service.
* Each of our Integral Fitting is made from high alloy forged steel that is heat treated for long lasting performance.

Product Name	Specification	Working Pressure	Type of Connection	Weight	Use Condition
		psi		kg
Y- Type-Joint	2”	6000	FIG602 (M*F*F)	12.2
			FIG602 (F*F*F)	10.0
	3”		FIG602 (M*F*F)	33.5
			FIG602 (F*F*F)	28.5
	2”	10000	FIG1002 (M*F*F)	121.7
			FIG1002 (F*F*F)	10.5
	3”		FIG1002 (M*F*F)	35.2
			FIG1002 (F*F*F)	30.5
	2”	15000	FIG1502 (M*F*F)	12.7
			FIG1502 (F*F*F)	10.5	standard
	3”		FIG1502 (M*F*F)	35.2
			FIG1502 (F*F*F)	30.5
