4130 Long Sweep Elbows (90°)

Camtop forged long sweep fittings are designed with a minimum 2D bend radius. They are suitable for full-flow applications such as cement and mud systems, where a minimum pressure drop is required.

Long sweep elbows and tees are availalbe with independent design review, and are fully in compliance with ABS/CDS rules and DNVGL OS-E101 rules.

Description

4130 Long Sweep Elbows (90°)



Camtop  offer a full range of long sweep elbows from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. RBV Energy standard specification for our 4130 long sweep elbows is as follows:

  • Service Class: Standard or Sour Service
  • Material: AISI 4130
  • Weld Ends: ANSI B16.25
  • BW Tolerance: ANSI B16.9
  • Material Yield Strength: 85,000 PSI minimum
  • Material Tensile Strength: 105,000 PSI minimum
  • Operating temperature: -46 to + 180°C (API temperature class L to X)

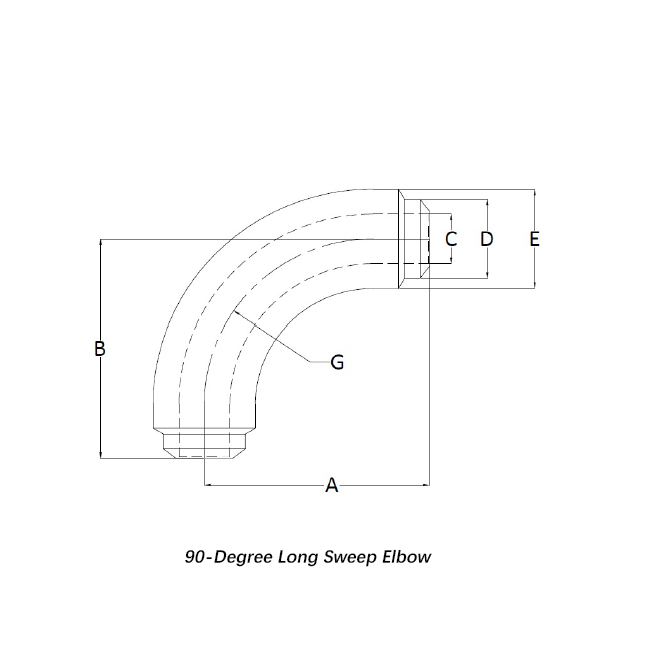

Size D A R C Weight (kgs)
2″ NB SCH XXS 60.3 203 150 53 14
3″ NB SCH XXS 88.9 203 150 53 20
4″ NB SCH XXS 114.3 280 210 70 39
5″ NB SCH XXS 141.3 305 240 65 57
6″ NB SCH XXS 168.3 381 305 76 105
5.5″ OD 139.7 305 240 65 62
6.75″ OD 171.45 381 305 76 105
