Full Flow High Pressure Manifold Crosses and Tees are closed die forged to ensure they have a correct grain flow, high integrity and uniform shape. Both 45° and 90° elbows are produced from hollow to tabular bars, hot formed on purpose made bending machines or forged in closed dies. Full ranges of httings form 2” to 6” are available with standard pressure ratings of 5000 PSI, 10000 PSI & 15000 PSI

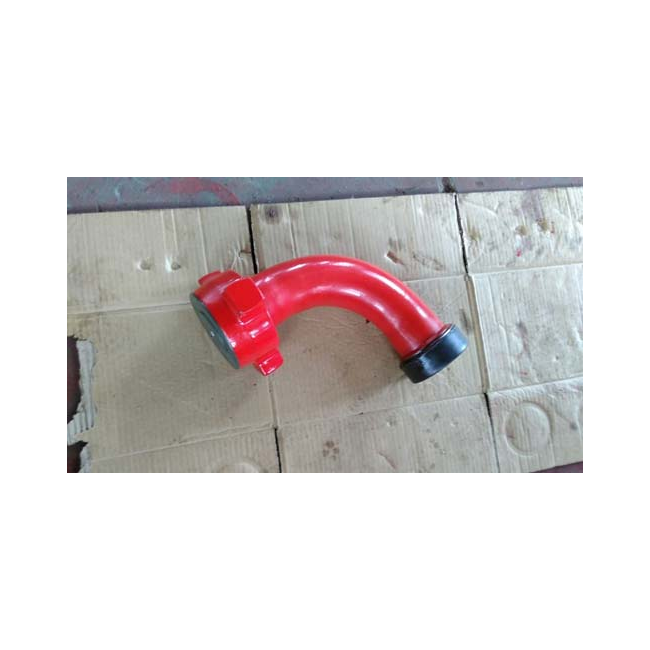

90-Degree Long Sweep Elbow
Description

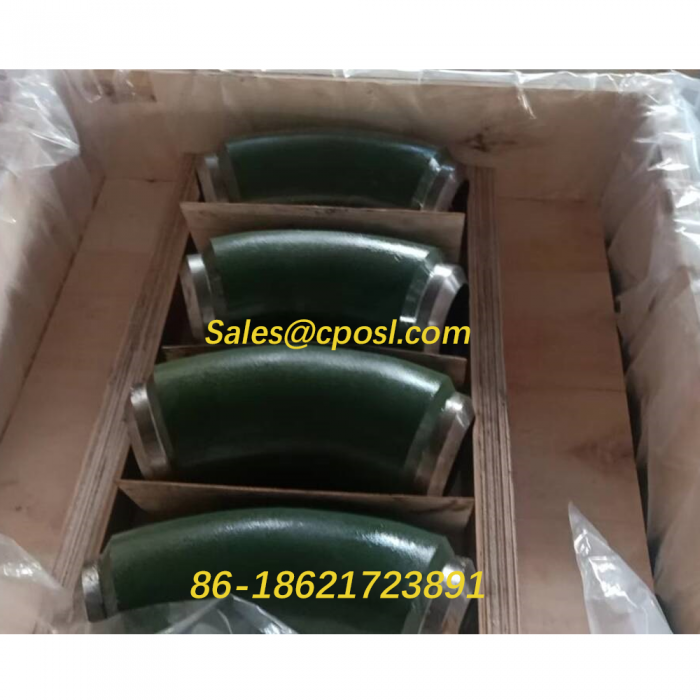

90-Degree Long Sweep Elbow
CAMTOP long sweep manifold fittings are fully-forged for high load and cyclic capability.
offer a full range of long sweep elbows from 2″ to 6″, available with standard pressure ratings of 5,000 psi and 10,000 psi. A typical specification for our long sweep elbows is as follows:
Service Class: Standard or Sour Service
Material: AISI 4130
Weld Ends: ANSI B16.25
BW Tolerance: ANSI B16.9
C.W.P. : 7,500 or 10,000 PSI
Test Pressure: 11,250 or 15,000 PSI
Material Yield Strength: 85,000 PSI or more
Material Tensile Strength: 105,000 PSI or more
| Nominal Bore | A | B | E Cast OD |
G Rad |
XX Strong | SCHED.160 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C ID |
D OD |
Approx. Wt. (kg) |
Part No. | C ID |
D OD |
Approx. Wt. (kg) |
Part No. | |||||
| 2″ | 8 | 8 | 3.5 | 5.91 | 1.5 | 2.375 | 15 | SEF1-0020 | 1.69 | 2.375 | 12 | SEF1-1020 |
| 3″ | 8 | 8 | 4.5 | 5.91 | 2.3 | 3.5 | 23 | SM-1424 | 2.62 | 3.5 | 21 | SEF1-1030 |
| 4″ | 11 | 11 | 5.5 | 8.27 | 3.15 | 4.5 | 40 | SEF1-0040 | 3.44 | 4.5 | 42 | SEF1-1040 |
| 5″ | 12 | 12 | 6.6 | 9.45 | 4.06 | 5.56 | 58 | SEF1-0050 | 4.31 | 5.56 | 54 | SEF1-1050 |
| 6″ | 15 | 15 | 8.25 | 12 | 4.9 | 6.625 | 96 | SEF1-0060 | 5.19 | 6.625 | 90 | SEF1-1060 |
| 7″ | 11.88 | 11.88 | 7.75 | 9 | 5.13 | 7 | 63 | SM-1391 | ||||
