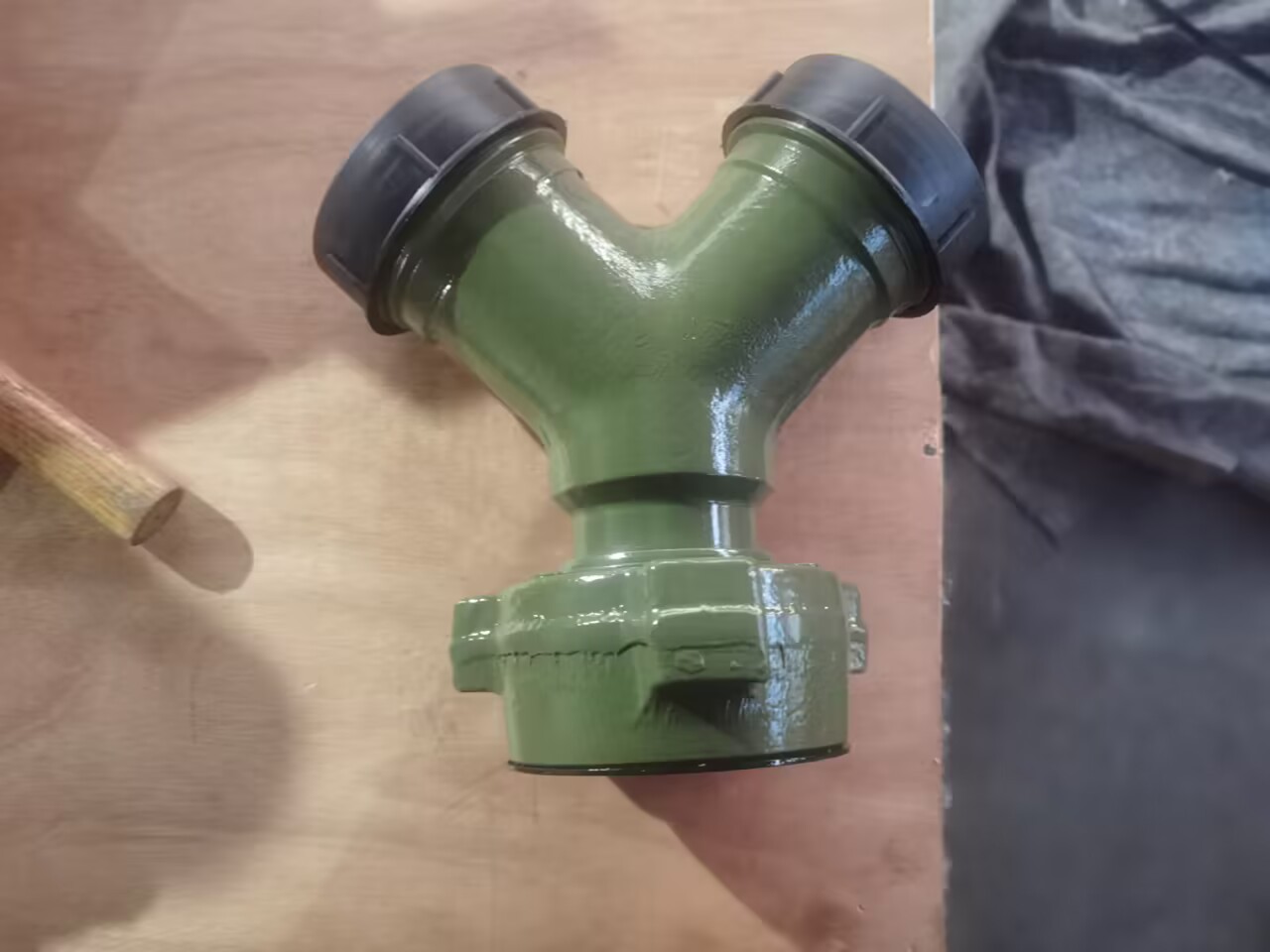

4130 Long Sweep Manifold Fittings

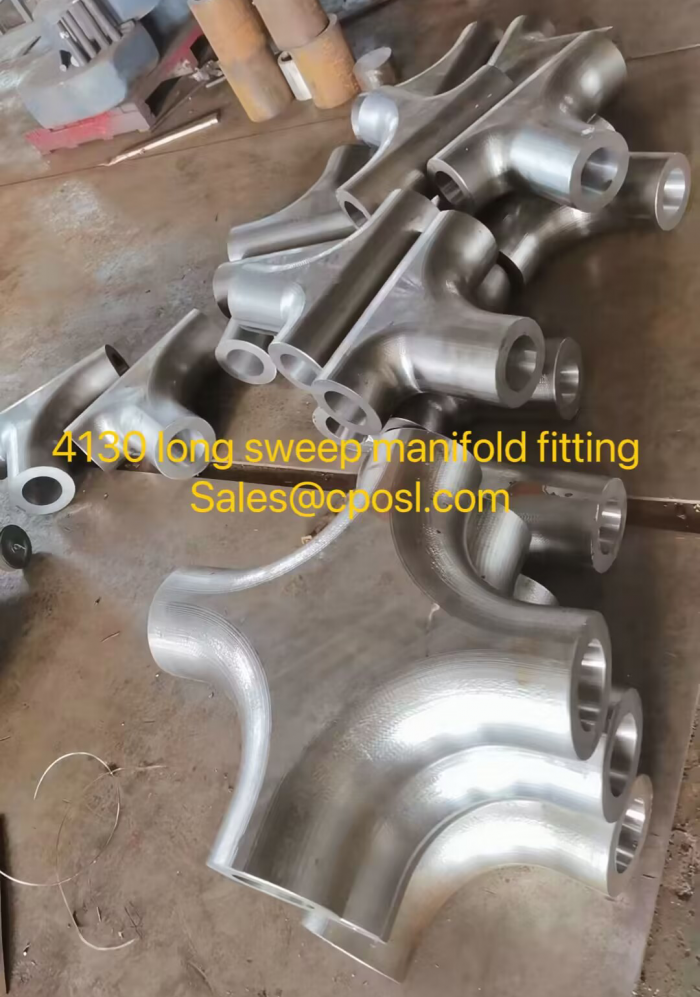

We manufactured and supply long sweep manifold fittings and 4130 fittings in various worldwide stock locations. Our Long Sweep manifold fittings are forged from European fine grain AISI 4130 material.

forged long sweep fittings are designed with a minimum 2D bend radius.  They are suitable for full-flow applications such

as cement and mud systems, where a minimum pressure drop is required.

Long sweep elbows and tees are availalbe with independent design review, and are fully in compliance with ABS/CDS rules and DNVGL OS-E101 rules.

Our long sweep manifold fittings come in a range of sizes and are available from stock for immediate delivery from our worldwide locations. Download our technical brochure or send us an enquiry for further information.

We provide the following long sweep manifold fitting configurations;

  • Long Sweep Bends
  • Long Sweep Elbows
  • Full Flow Tees
  • Full Flow Reducing Tees
  • Long Sweep Tees
  • Long Sweep Reducing Tees
  • Long Sweep Crosses
  • Goosenecks

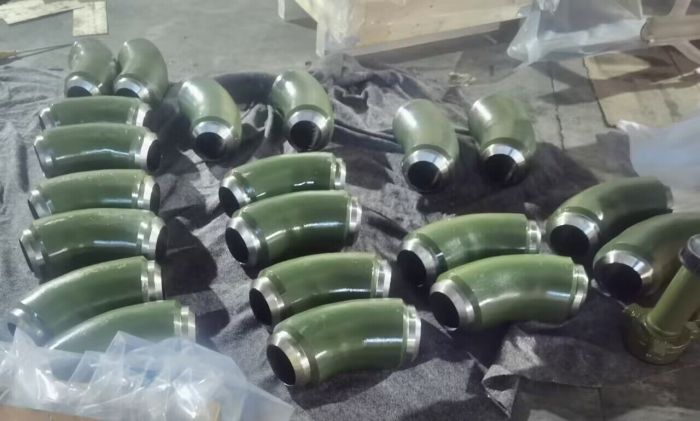

4130 Long Sweep Elbows (90°)

We offer a full range of long sweep elbows from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. RBV Energy standard specification for our 4130 long sweep elbows is as follows:

  • Service Class: Standard or Sour Service
  • Material: AISI 4130
  • Weld Ends: ANSI B16.25
  • BW Tolerance: ANSI B16.9
  • Material Yield Strength: 85,000 PSI minimum
  • Material Tensile Strength: 105,000 PSI minimum
  • Operating temperature: -46 to + 180°C (API temperature class L to X)

Long Sweep 90 Dimensional Drawing

Size D A R C Weight (kgs)
2″ NB SCH XXS 60.3 203 150 53 14
3″ NB SCH XXS 88.9 203 150 53 20
4″ NB SCH XXS 114.3 280 210 70 39
5″ NB SCH XXS 141.3 305 240 65 57
6″ NB SCH XXS 168.3 381 305 76 105
5.5″ OD 139.7 305 240 65 62
6.75″ OD 171.45 381 305 76 105

(Unless stated, dimensions are in mm)

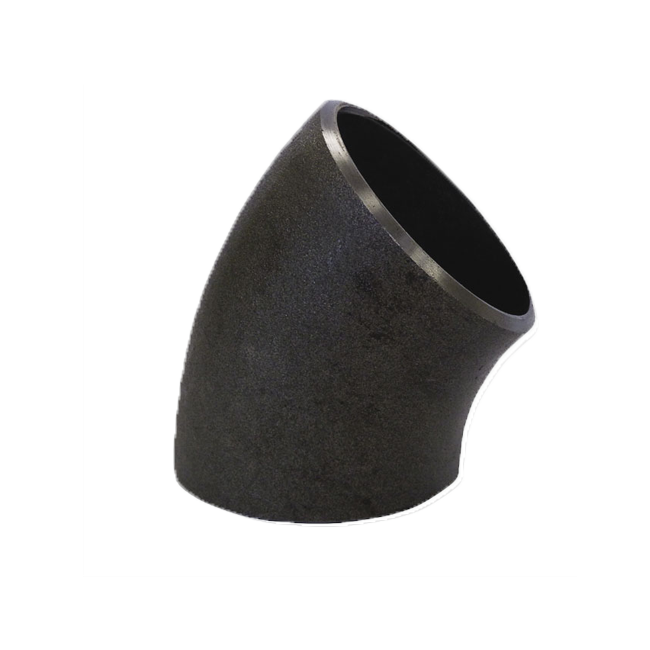

4130 Long Sweep Elbows (45°)

We offer a full range of long sweep elbows from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. RBV Energy standard specification for our 4130 long sweep elbows is as follows:

  • Service Class: Standard or Sour Service
  • Material: AISI 4130
  • Weld Ends: ANSI B16.25
  • BW Tolerance: ANSI B16.9
  • Material Yield Strength: 85,000 PSI minimum
  • Material Tensile Strength: 105,000 PSI minimum
  • Operating temperature: -46 to + 180°C (API temperature class L to X)

Long Sweep 45 Dimensional Drawing

Size D A R C Weight (kgs)
2″ NB SCH XXS 60.3 118 150 56 9
3″ NB SCH XXS 88.9 118 150 56 14
4″ NB SCH XXS 114.3 162 210 75 26
5″ NB SCH XXS 141.3 171 240 72 37
6″ NB SCH XXS 168.3 203 305 25 57
5.5″ OD 139.7 171 240 72 42
6.75″ OD 171.45 203 305 25 62

(Unless stated, dimensions are in mm)

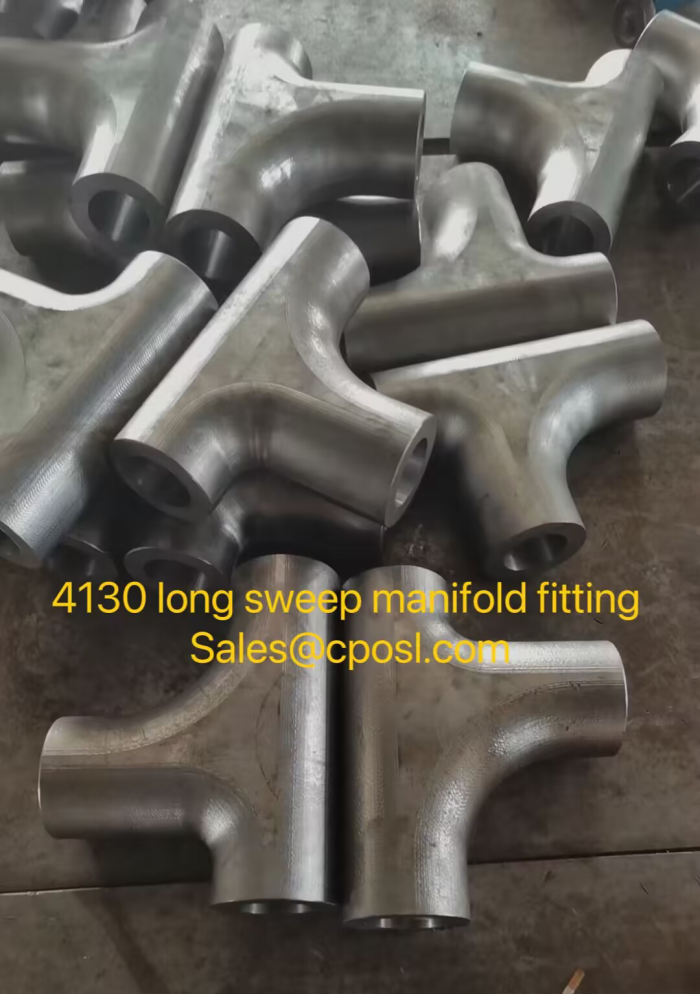

4130 Long Sweep Full Flow Tees

We offer a full range of long sweep tees from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. RBV Energy standard specification for our 4130 long sweep tees is as follows:

  • Service Class: Standard or Sour Service
  • Material: AISI 4130
  • Weld Ends: ANSI B16.25
  • BW Tolerance: ANSI B16.9
  • Material Yield Strength: 85,000 PSI minimum
  • Material Tensile Strength: 105,000 PSI minimum
  • Operating temperature: -46 to + 180°C (API temperature class L to X)

LSFF Tee

Size D A B R Weight (kgs)
2″ NB SCH XXS 60.3 406 203 150 36
3″ NB SCH XXS 88.9 406 203 150 33
4″ NB SCH XXS 114.3 560 280 210 64
5″ NB SCH XXS 141.3 610 305 240 90
6″ NB SCH XXS 168.3 762 381 305 143
5.5″ OD 139.7 610 305 240 95
6.75″ OD 171.45 762 381 305 150

(Unless stated, dimensions are in mm)


4130 Long Sweep Tees with Integral Bull Plug

We offer a full range of long sweep tees c/w integral bull plugs from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. RBV Energy standard specification for our 4130 long sweep tees c/w integral bull plugs is as follows:

  • Service Class: Standard or Sour Service
  • Material: AISI 4130
  • Weld Ends: ANSI B16.25
  • BW Tolerance: ANSI B16.9
  • Material Yield Strength: 85,000 PSI minimum
  • Material Tensile Strength: 105,000 PSI minimum
  • Operating temperature: -46 to + 180°C (API temperature class L to X)

LS Tee with BP

Size D A B R Weight (kgs)
2″ NB SCH XXS 60.3 406 203 150 34
3″ NB SCH XXS 88.9 406 203 150 28
4″ NB SCH XXS 114.3 560 280 210 51
5″ NB SCH XXS 141.3 610 305 240 76
6″ NB SCH XXS 168.3 762 381 305 132
5.5″ OD 139.7 610 305 240 81
6.75″ OD 171.45 762 381 305 137

(Unless stated, dimensions are in mm)

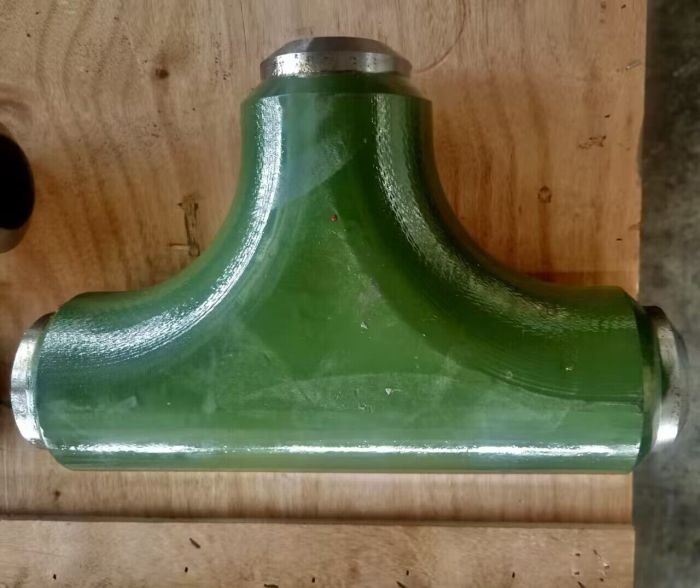

4130 Long Sweep Tees

We offer a full range of long sweep tees from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. RBV Energy standard specification for our 4130 long sweep tees is as follows:

  • Service Class: Standard or Sour Service
  • Material: AISI 4130
  • Weld Ends: ANSI B16.25
  • BW Tolerance: ANSI B16.9
  • Material Yield Strength: 85,000 PSI minimum
  • Material Tensile Strength: 105,000 PSI minimum
  • Operating temperature: -46 to + 180°C (API temperature class L to X)

LS Tee

Size D A B R Weight (kgs)
2″ NB SCH XXS 60.3 330 203 150 34
3″ NB SCH XXS 88.9 330 203 150 28
4″ NB SCH XXS 114.3 406 280 210 51
5″ NB SCH XXS 141.3 483 305 240 76
6″ NB SCH XXS 168.3 686 381 305 132
5.5″ OD 139.7 483 305 240 81
6.75″ OD 171.45 686 381 305 137

(Unless stated, dimensions are in mm)


4130 Long Sweep Full Flow Crosses

We offer a full range of long sweep crosses from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. RBV Energy standard specification for our 4130 long sweep crosses is as follows:

  • Service Class: Standard or Sour Service
  • Material: AISI 4130
  • Weld Ends: ANSI B16.25
  • BW Tolerance: ANSI B16.9
  • Material Yield Strength: 85,000 PSI minimum
  • Material Tensile Strength: 105,000 PSI minimum
  • Operating temperature: -46 to + 180°C (API temperature class L to X)

FF Cross

Size D A B R Weight (kgs)
2″ NB SCH XXS 60.3 406 203 150 32
3″ NB SCH XXS 88.9 406 203 150 48
4″ NB SCH XXS 114.3 560 280 210 94
5″ NB SCH XXS 141.3 610 305 240 138
6″ NB SCH XXS 168.3 762 381 305 208
5.5″ OD 139.7 610 305 240 148
6.75″ OD 171.45 762 381 305 218

(Unless stated, dimensions are in mm)
