Description

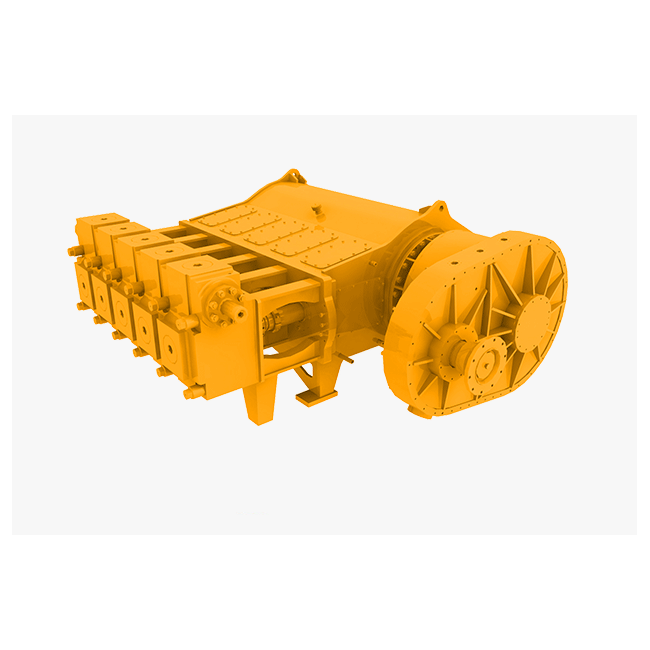

7000QP Quintuplex Plunger Pump



7000QP plunger pump can operate continuously under heavy load, which is applicable for zipper fracturing in shale gas development.

Specifications

Rated Brake Power: 7,000 hp Overall Dimensions:100.04×125.87×49.02 in
Max. Rod Load: 318,086 lbf Weight: 34,172 lbs
Stroke Length: 11 in
Plunger Dia. Disp. Displacement at Pump Strokes per Minute
in
(mm)
gal/rev
(L/rev)
60 80 100 120 140 170
gpm
(L/min)
psi
(MPa)
gpm
(L/min)
psi
(MPa)
gpm
(L/min)
psi
(MPa)
gpm
(L/min)
psi
(MPa)
gpm
(L/min)
psi
(MPa)
gpm
(L/min)
psi
(MPa)
4 1/2 3.79 227 20,000 303 20,000 379 20,000 454 20,000 530 20,000 644 16,774
114.3 14.33 860.1 137.9 1,146.80 137.9 1,433.40 137.9 1,720.10 137.9 2,006.80 137.9 2,436.80 115.7
5 4.68 281 16,200 374 16,200 468 16,200 561 16,200 655 16,200 795 13,587
127 17.7 1,061.80 111.7 1,415.70 111.7 1,769.70 111.7 2,123.60 111.7 2,477.60 111.7 3,008.50 93.7
5 1/2 5.66 339 13,388 453 13,388 566 13,388 679 13,388 792 13,388 962 11,229
139.7 21.41 1,284.80 92.3 1,713.10 92.3 2,141.30 92.3 2,569.60 92.3 2,997.80 92.3 3,640.20 77.4
6 6.73 404 11,250 539 11,250 673 11,250 808 11,250 942 11,250 1,144 9,435
152.4 25.48 1,529.00 77.6 2,038.70 77.6 2,548.30 77.6 3,058.00 77.6 3,567.70 77.6 4,332.20 65.1
6 1/2 7.9 474 9,586 632 9,586 790 9,586 948 9,586 1,106 9,586 1,343 8,040
165.1 29.91 1,794.50 66.1 2,392.60 66.1 2,990.80 66.1 3,588.90 66.1 4,187.10 66.1 5,084.30 55.4
Brake Power (hp/kW) 2,946/2,197 3,928/2,929 4,910/3,661 5,891/4,393 6,873/5,125 7,000/5,220
Input Speed (rpm) 738 984 1,230 1,476 1,722 2,091
