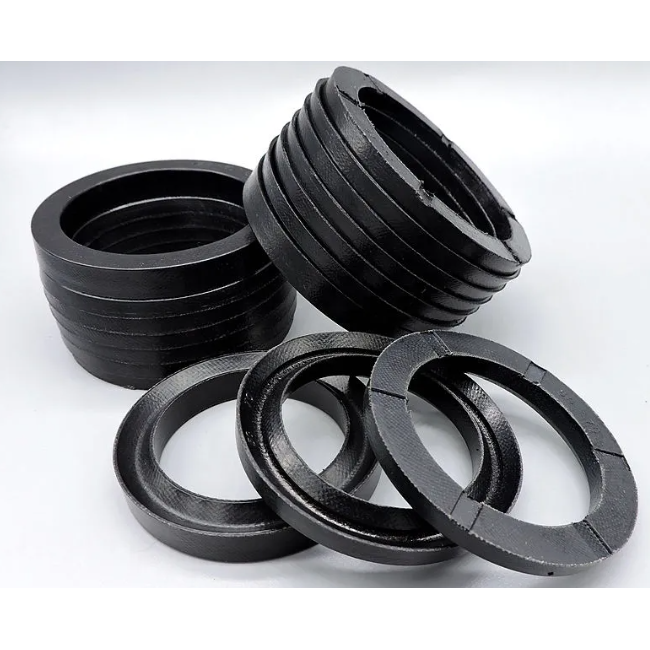

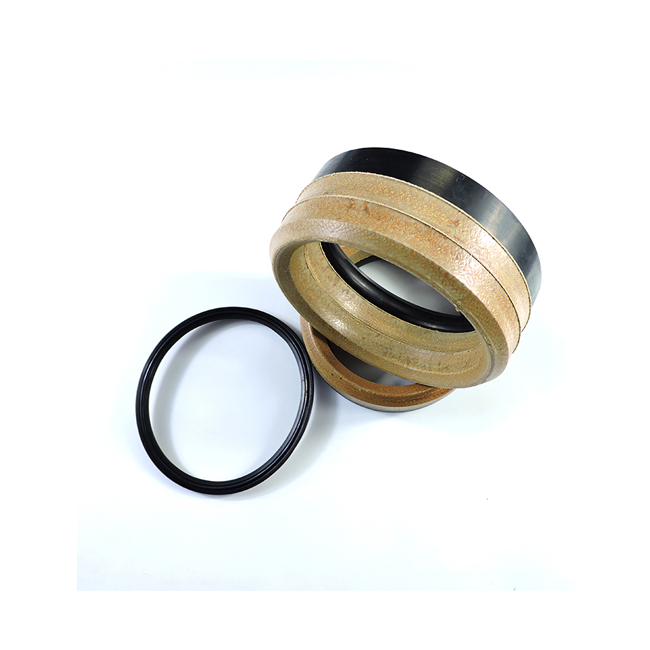

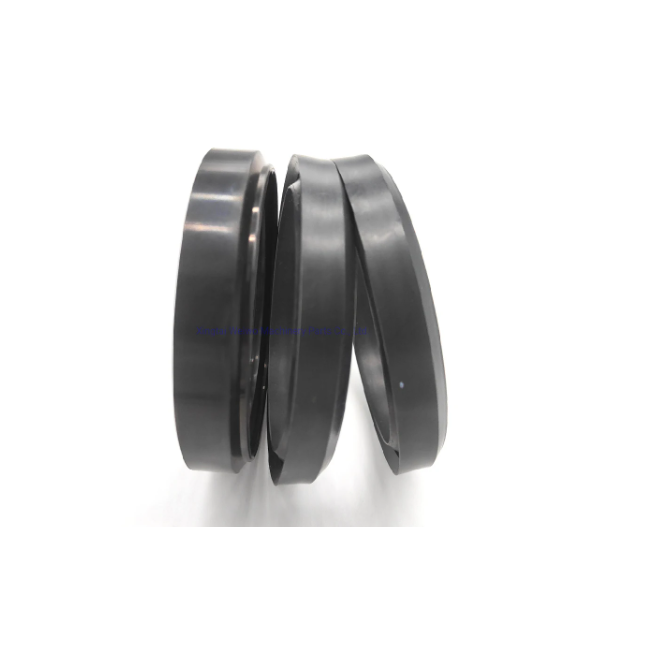

Oilfield Plunger Pump Packing


chevron packing endless, nitrile/Multiple-lip (chevron) Seals or Vee Packings/multiple Lip Chevron Packing sets seal static for valves and pumps/FKM ,NBR OR PTFE Hydraulic packings and seals

Multiple-lip (chevron) Seals or Vee Packings that consist of a group of endless rings and are usually used for sealing rods, pistons, plungers in hydraulic cylinders and hydraulic presses. V-Packings are used for low or high pressure applications with Single or Double acting cylinder.

 V-Packings are also used in various Oilfield Downhole equipment such as various Valves etc. V-Packings are extremely suitable for usage in medium to heavy duty applications. Vee Packings accept low and high pressure while operating in the most extreme conditions and also if there exists any misalignment between the sealing gaps.

Profile H Profile Header Ring; V Profile Preasure Ring; O Profile Female Adapter
Material NBR, HNBR/HSN, Aramid fabric/HNBR Composite, FKM, TPU, PTFE, PEEK
Size 2.5″, 3″,3.5″, 3.75″ , 4″, 4.5″, 5″
Application Widely used for frack pump,mud pump ,work vehicles for oilfield
