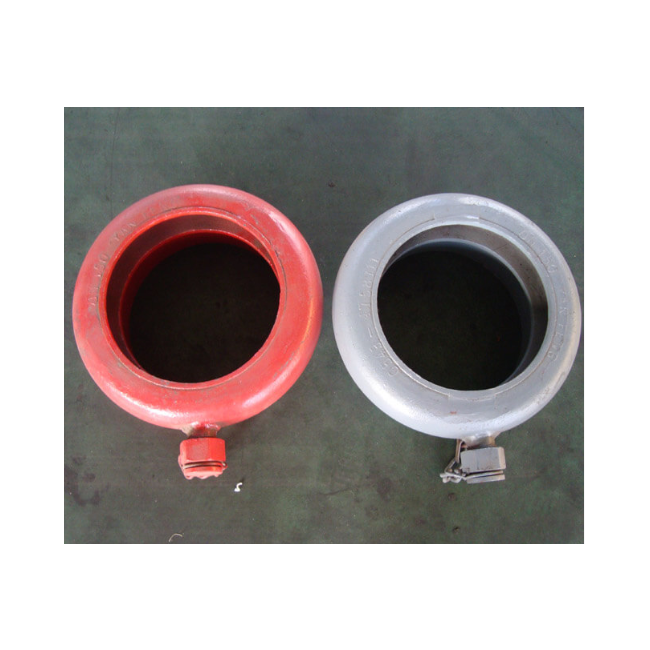

Air O Grip Unions Mud Tank Union Drilling Pipe Fittings
Air Grip union is widely applied in drilling fluid pipelines, with features of low-pressure, large pipe size, big pipe misalignment, frequent installation and uninstall. Especially, in connecting mud tanks, mud suction and return lines in solid control system.
150 psi maximum line pressure, 4, 6, 8, 10, 12, 14and 16-inch sizes
Mud suction and return lines and low-pressure fluid lines
1. Shot of rig air inflates tube to seal around pipe
2. Fast, easy make-up without close alignment
3.Allows pipe expansion or misalignment without breaking the seal
4. No nuts, bolts, or wrenches required
In the Air Grip unions(Air-O-unions) we have patents:
1. Medium available: mud, oil, water
2. Medium temperature: -45°C ~50°C
3. Reconversion time when deflated: 1-3 seconds.
4. Medium presssure: 0.4Mpa
5. Structure: steel shell and air bag
6. Material: shell for 20# casting steel, tyre for rubber.
Q1: What’s your business range?
A: We manufacture Bop, wellhed, valves ( gate valve, check valve, choke valve, plug valve ), flanges, swivel joint , pup joint and so on.
Q2: How about the quality of the managements?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,API Certificate.
Q3: Can you offer OEM or design services?
A: Yes, we have our own design department and production tools. We can make OEM products according to your requirements.
Q4: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q5: How about warranty?
A: 12 months warranty.
