Mudking Pump-550

The RMKP-550 series triplex mud pumps are fully interchangeable with the equivalent OEM.

Category: Tags: ,

Description

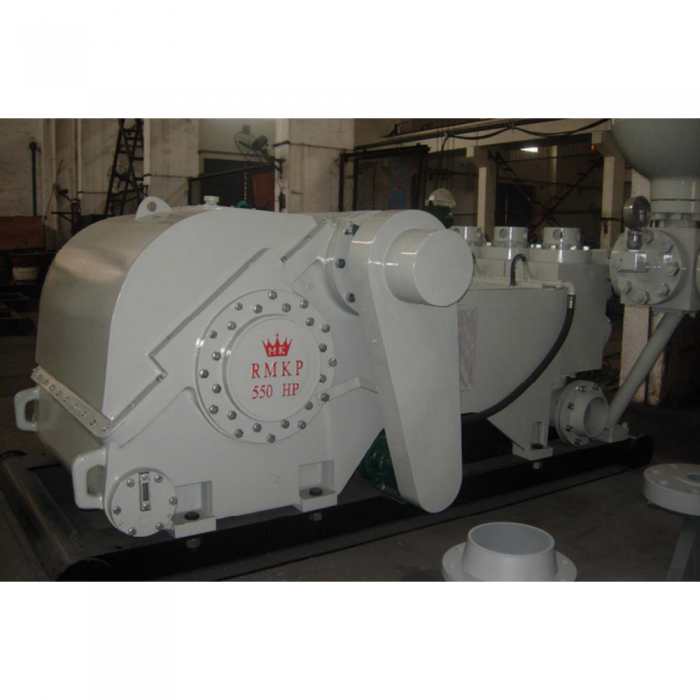

The RMKP-550 series triplex mud pumps are fully interchangeable with the equivalent OEM. Pump features a rigid steel fabricated frame with a casted suction manifold with a single front inlet or fabricated two-sided inlet. Discharge connection may be made from either side of the pump. Includes strainer block with pulsation dampener, mounted on a pony skid.

Stroke Length 7″ (177.8 mm)
Plunger Diameter 4″ 4.50″ 5″ 5.50″ 6″ 6.50″ 7″
Max. Discharge Working Pressure 5000 PSI 4048 PSI 3279 PSI 2710 PSI 2277 PSI 1940 PSI 1673 PSI
Max. Rod Load
Oil Capacity (Crankcase)
Max Power (Pump Power) 550 HP
Suction Connection 8″ – ANSI 150
Discharge Connection 5″ – 5000# API Flange
Min. Speed
Max. Speed 165 RPM
Weight (Pump Only) 18000 Lbs
Flowrate Up to 577 gpm
