Description

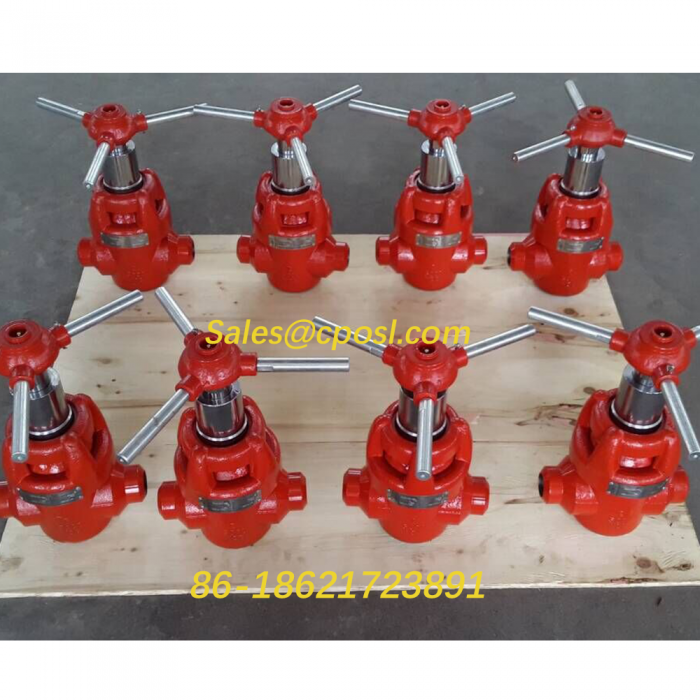

Z23Y series of mud gate valves are designed by parallel-type Metal to Metal Sealing, mainly used for Oil and Gas lines, Wellheads, Manifolds and Pipelines, Crude Oil and Sour Gas, Well Treating Chemicals. It is convenient to open, the two ends of the valve and pipes are joined and staled with spherical movement, the movable connection of the rubber seal ring like “O” is not of high requirement about straightness of the two ends of pipes, When is fitted and its seal performance is good.

Specification:

MODEL Z23Y-35-
DN50		 Z23Y-35-
DN65		 Z23Y-35-
DN80		 Z23Y-35-
DN100		 Z43Y-70-
DN50		 Z43Y-70-
DN65		 Z43Y-70-
DN80		 Z43Y-70-
DN100
W.P. 5000 PSI 10000 PSI
SIZE 50
(2 1/16”)		 65
(2 9/16”)		 80
(3 1/8”)		 100
(4 1/16”)		 50
(2 1/16”)		 65
(2 9/16”)		 80
(3 1/8”)		 100
(4 1/16”)
MEDIUM MUD
CONNECTON UNION,THREADED,BUTT WELDED FLANGE
CONNECTION SIZE Tr120x6
(Tr100x12)		 Tr130x6
(Tr120x12)		 Tr150x6 Tr180x6 BX152 BX153 BX154 BX155
STRUCTURE LENGTH 230 235 270 330 356 380 430 520
