Description

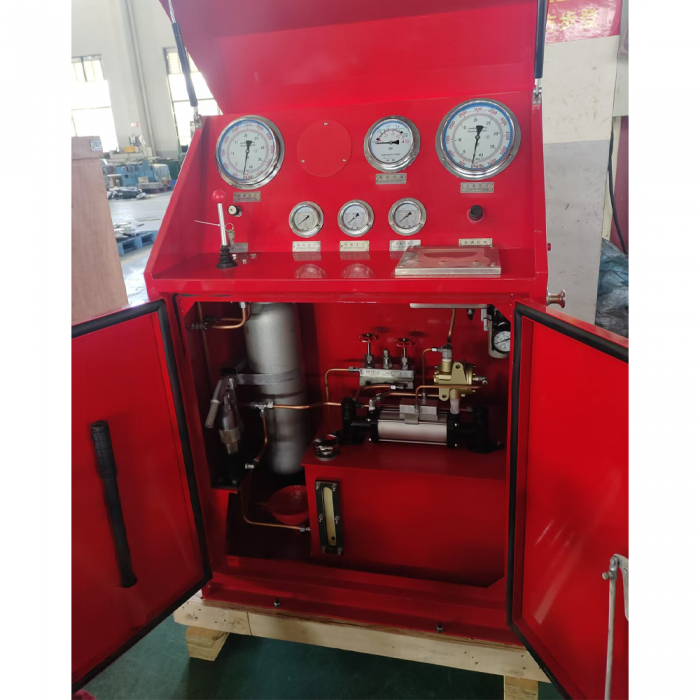

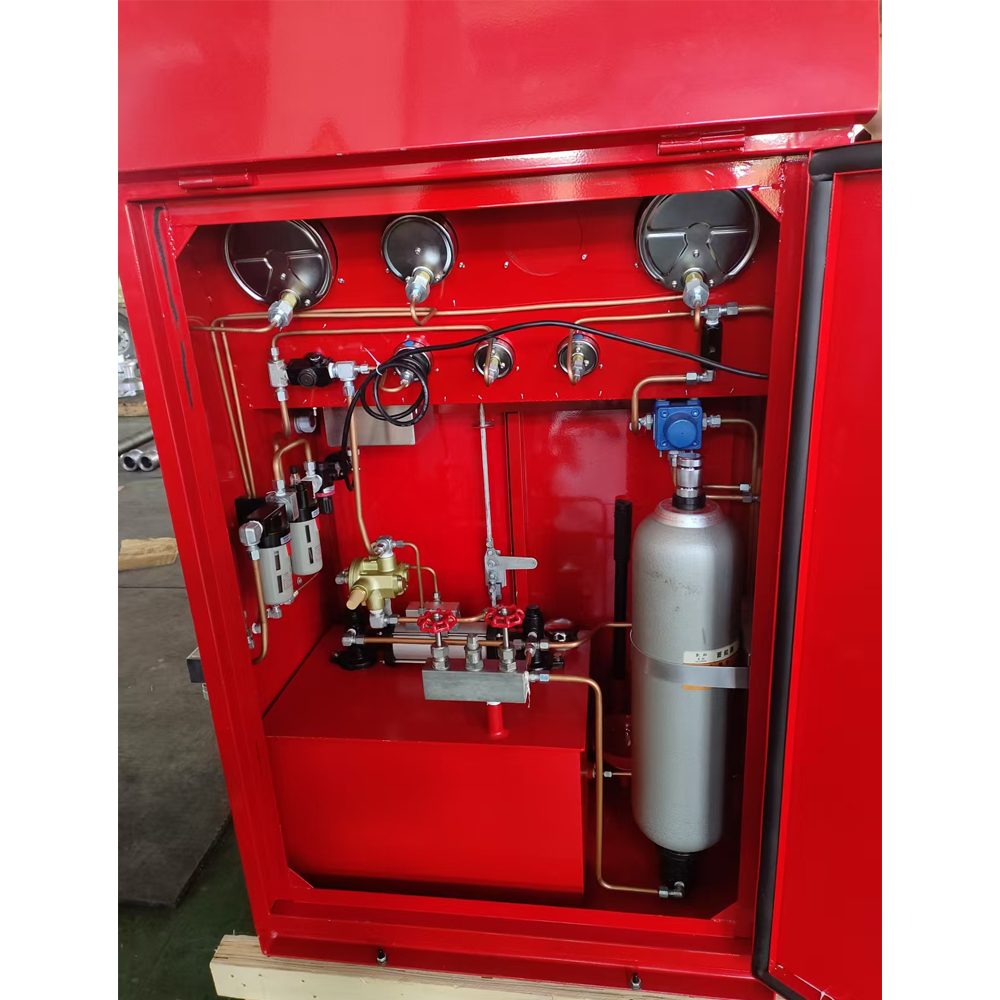

Choke manifold control console ad a control assembly in hydraulic choke manifold, can remote control the open/close of hydraulic choke valve for a long distance and the control panel can indicate the stand-pipe pressure ,casing pressure and the opening/closing condition of hydraulic choke valve as well as the pulse number and frequency of the mud pump if pump-pulse counter equipped, which can keep the pressure under well and is a necessary device to control kick and blowout and perform the pressure control technology in oil/gas well.

Technology Parameter:
(1) Air pressure: 0.6MPa
(2)Ambient Temperature: -20℃ ~+60℃(3) Working Pressure: 3Mpa
(4)Size of quick connector in gas line: M16 x 1.5
(5) Size of quick connector in oil line:M22 x 1.5
(6)Specification of hydraulic oil: anti-cryogenic hydraulic oil
(7) Length x width x height: 960 x 600 x 1300
(8) Weight: 300kg
