CAMTOP mud standpipe manifolds are designed and manufactured to customer requirements and are fully certified in accordance with the recognized oilfield equipment standards.


The mud standpipe manifold is installed downstream of the mud pumps with the purpose of diverting the flow of drilling fluids toward the drill line or drillstring. An adjustable choke can be installed to bleed pressure off the drillpipe, to reduce shock when breaking circulation in wells where loss of circulation is a problem, and to bleed off pressure between BOPs during stripping operations. Pressure ratings up to 7,500 psi are available.

Pressure indicator and sensor, temperature indicator and sensor, or both
Free-standing or with support frame
Range of configurations, capacities, and specifications
Custom single or dual designs

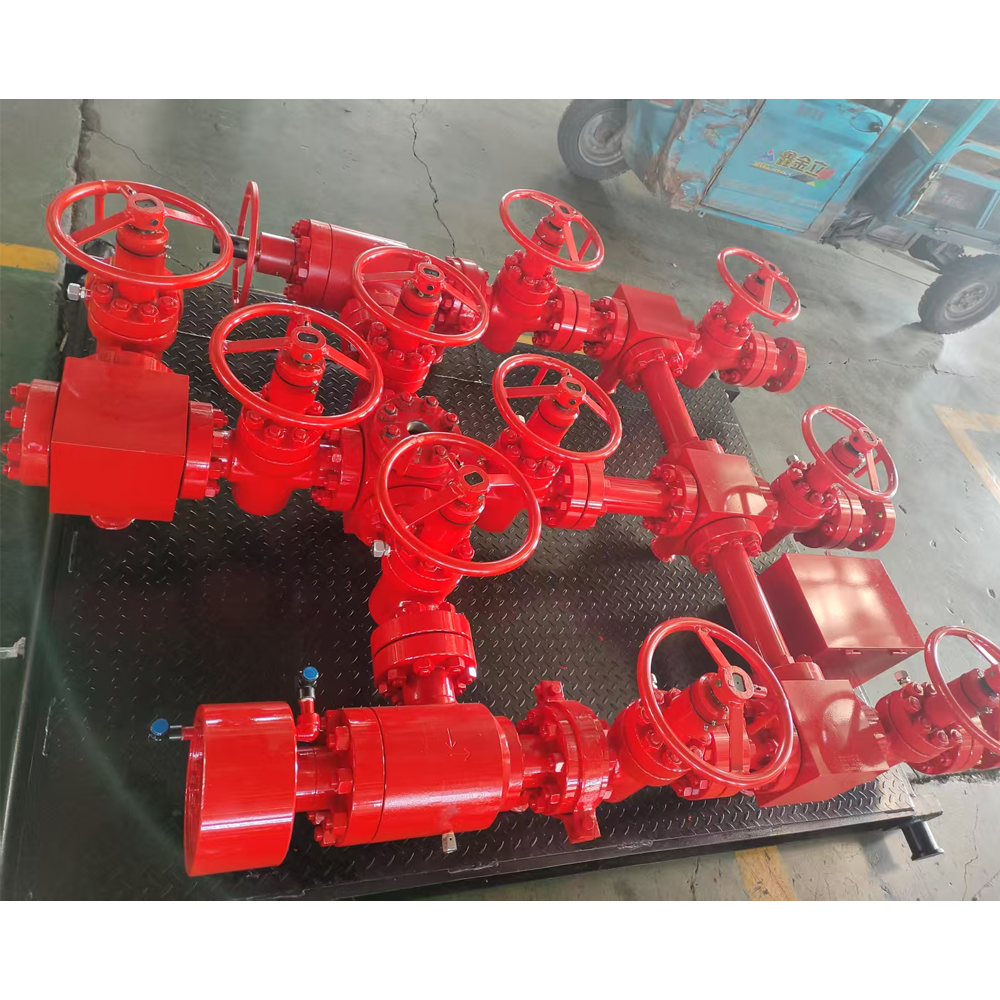

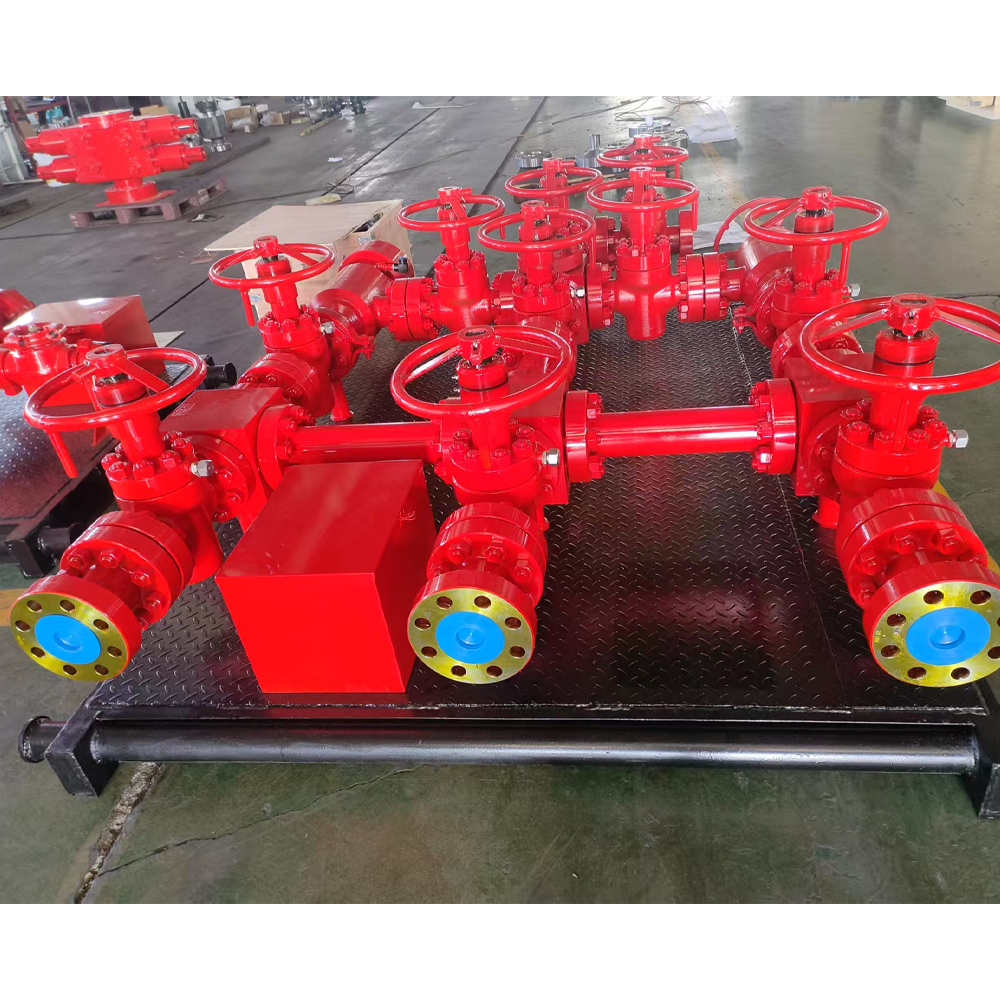

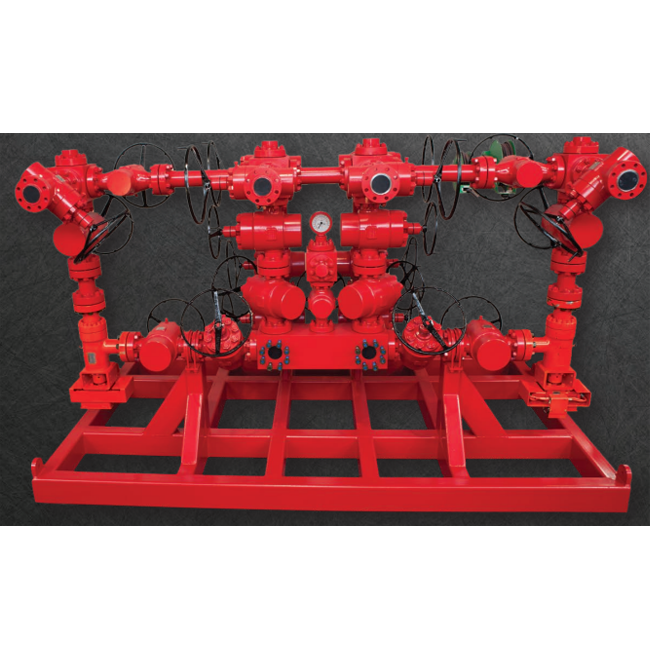

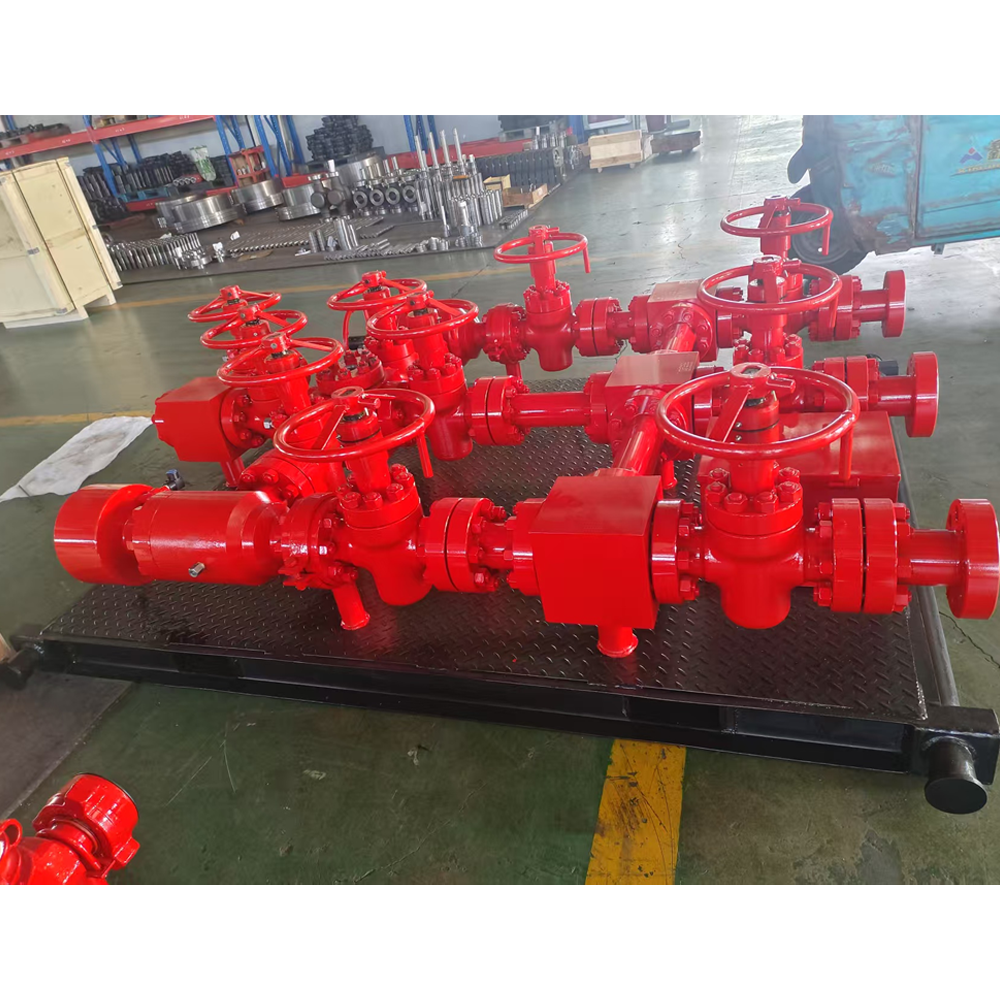

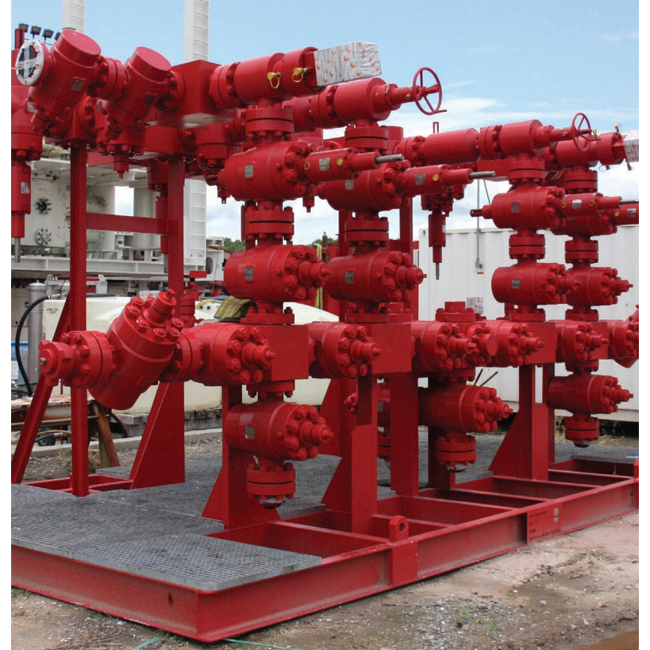

Kill manifold is a key part in the control devices of oil/gas well,which has the function that,as the drilling string can not be used for normal operation,the kill manifold shall be used to pump drilling fluid into the well so as to control the downhole pressure,one end of the kill manifold shall be connected with the side hole of drilling spool and teh other end shall be connected with the mud pump.



Name Choke manifold Kill manifold
Type JG/S2-35 JG/SY-35 JG/SY2-70 JG/S2Y2-105 YG-35 YG-70 YG-105
Main and side outlet bore
31/8×21/16(80×52) 41/16×29/16(103×65) 41/16×31/16(103×78)
Nominal pressure psi(MPa) 3000(21)
5000(35) 10000(70) 15000(105)
Working temperature
LU -46ºC ~ +121ºC (-50°F ~ 250°F)
Working medium Drillingfluid , mud , oil(souroil)
Controlling form Dual-Wing manual choke valve Dual-Wing fluid manual choke valve Tri-Wing fluid manual choke valve Tetra-Wing fluid manual choke valve Dual-Wing relief valve
