CAMTOP Hydraulic Circulating Valve | 15K PSI | Full Bore | DST Tools
5 inch (127.5 mm)
Product Overview
The CAMTOP Hydraulic Circulating Valve serves as a bypass around the packer or as a circulating valve to circulate a well after downhole testing operations.
The hydraulic circulating valve is designed with a full bore which permits passage of wireline tools through its full-opening bore. When run below a closed valve, the circulating valve serves as a bypass around the packer and helps relieve pressure buildup below the closed valve when it is stung into a production packer.
When the hydraulic circulating valve is run above a closed valve, the tool can be used as a circulating valve when the work string is picked up.
Product: Hydraulic Circulating Valve | Type: APR Tools | Size: 5 inch (127.5 mm) | OD: 127.5 mm (5″) | ID: 57 mm | Length: 2312 mm (IF BxP)
Product Image

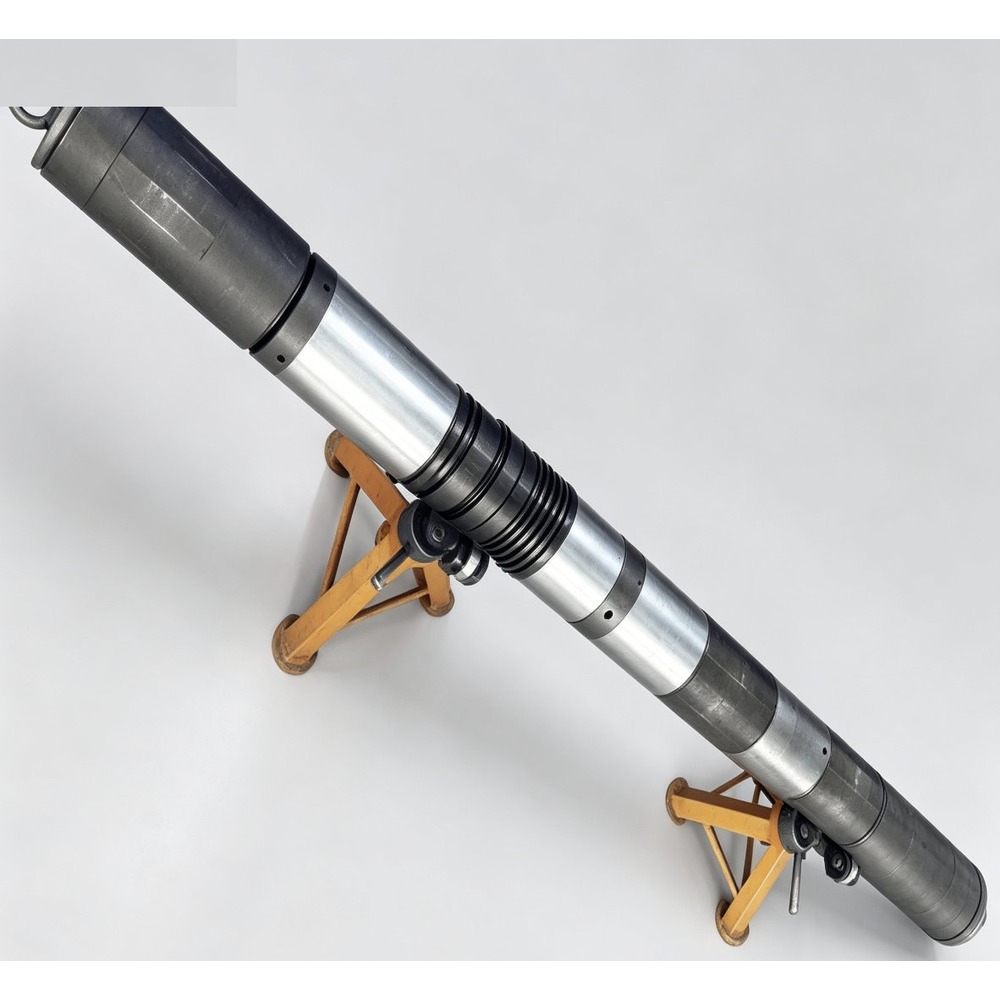

CAMTOP Hydraulic Circulating Valve — 5 inch, 15,000 psi, alloy steel, full bore hydraulic circulating valve for drill stem testing tools
Key Features
- Dual Function: Serves as both a bypass around the packer and a circulating valve for well circulation after testing
- Full Bore Design: Full-opening bore permits passage of wireline tools through the valve
- Packer Bypass: When run below a closed valve, relieves pressure buildup below the closed valve when stung into a production packer
- Circulation Mode: When run above a closed valve, functions as a circulating valve when the work string is picked up
- High Pressure Rating: Rated to 15,000 psi (105 MPa) working pressure
- Extended Length: 2312 mm length for comprehensive downhole configurations
- H2S Sour Service: Compliant with NACE MR0175 for H2S-containing environments
Technical Specifications
| Item | Specification |
|---|---|
| Product | Hydraulic Circulating Valve |
| Type | APR Tools |
| Size | 5 inch (127.5 mm) |
| OD | 127.5 mm (5″) |
| ID | 57 mm |
| Length | 2312 mm (IF BxP) |
| Working Pressure | 105 MPa (15,000 psi) |
| Tensile Strength | 1459 KN |
| Internal Pressure Strength | 105 MPa |
| External Pressure Strength | 139 MPa |
| Torque Strength | 22 kN.m |
| Working Temperature | -29C to +204C (-20F to +400F) |
| Service | Mud, Crude Oil, Natural Gas, NACE MR0175 (Above 175F) |
| Connection Thread | 3-1/2″ IF BXP, 3-7/8″ CAS BXP |
| Application | Oil Well Downhole Testing Service |
Applications
- Cased hole drill stem testing (DST) operations
- Oil and gas well downhole testing service
- Formation testing and well completion operations
- Perforation and tubing string testing
- Circulation and fluid conditioning during well testing
- Sour-service (H2S) well testing environments
- High-pressure and high-temperature downhole conditions
Ordering Information
When requesting a quote, please specify the following parameters:
- Tool Size / OD: Required outside diameter (e.g., 5″, 3-7/8″)
- Working Pressure: Required pressure rating (5,000 / 10,000 / 15,000 psi)
- Connection Type: IF, EUE, CAS, or custom thread
- Service Environment: Standard or H2S / sour service
- Shear Pin Configuration: Required operating pressure values
- Rupture Disc Pressure Rating: (if applicable)
- Quantity Required: For pricing and delivery schedule
Why Choose CAMTOP
- Specialized manufacturer of oilfield drill stem testing (DST) tools
- High-strength alloy steel and Inconel construction with full material traceability
- Multiple sizes, pressure ratings, and connection types available
- NACE MR0175 compliance for H2S / sour service environments
- API / ISO quality management and inspection procedures
- Application engineering support for DST string integration
- Competitive pricing with fast delivery from China
