Description

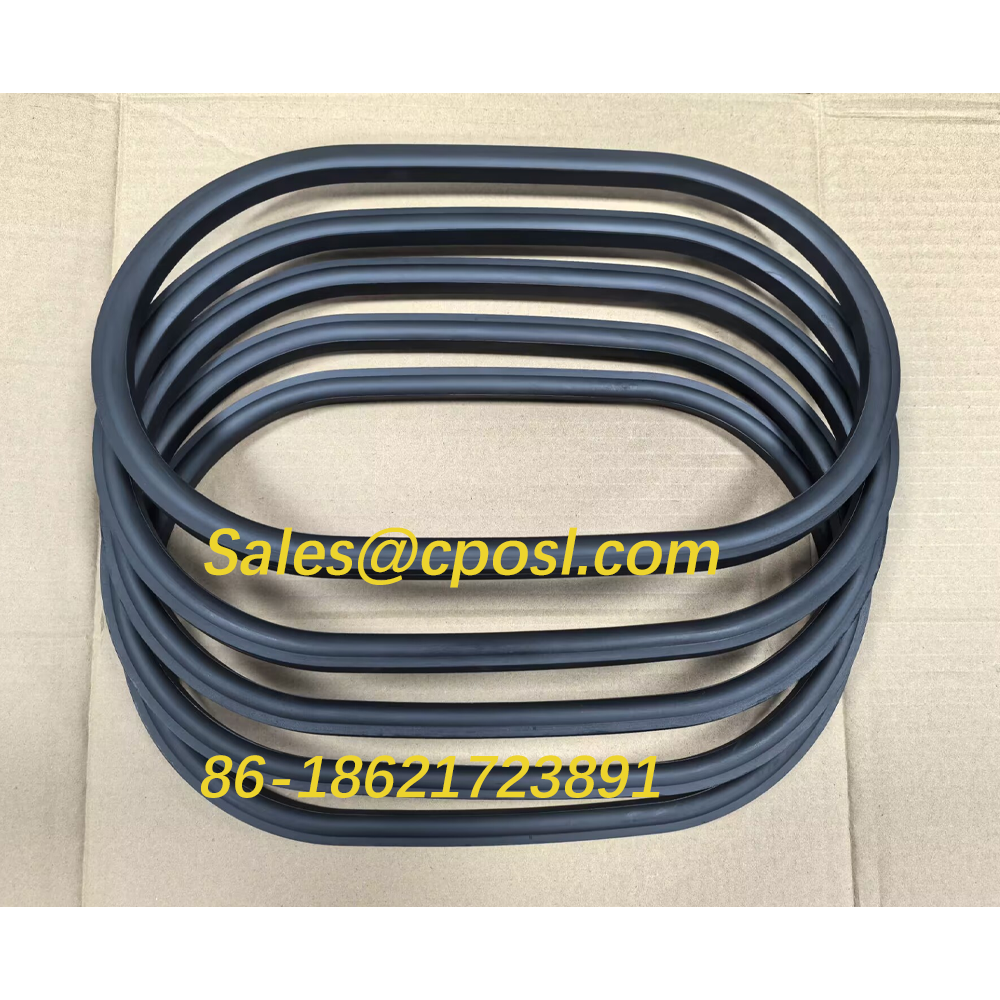

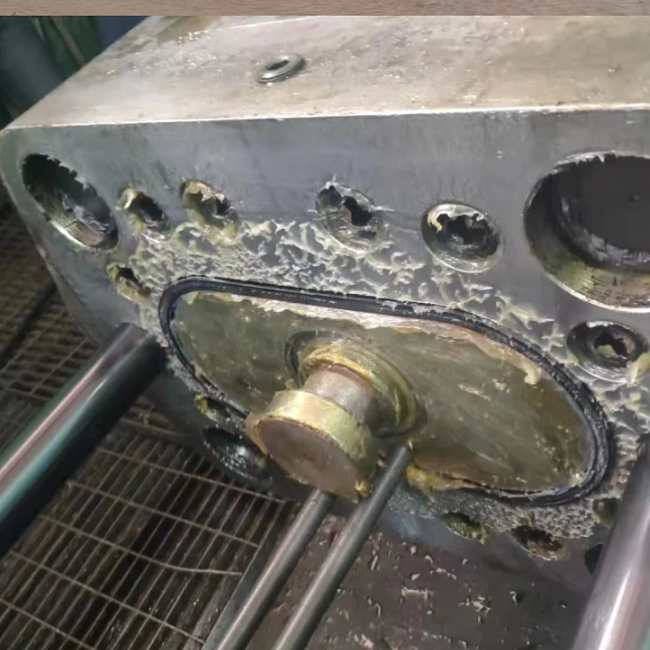

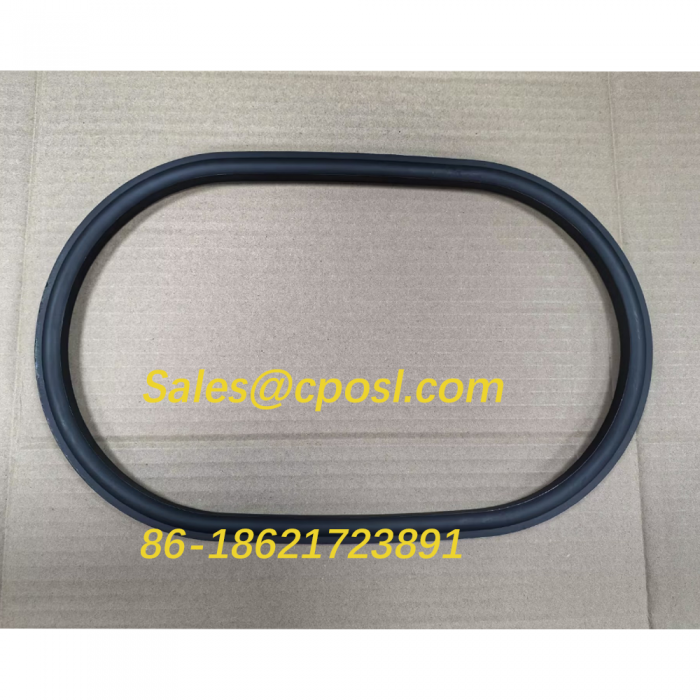

Bonnet Seals and Connecting Rod Seals
For application where only bonnet and/or connecting rod seals are required, Cameron offers individually packaged
components. Connecting rod seals are nitrile rubber.
When high temperature and/or high concentrations of H2S are expected, Cameron recommends the use of CAMLAST
bonnet and connecting rod seals along with CAMRAM 350 packers and top seals.
| U BOP CAM LAST Bonnet and Connecting Rod Seals | |||||
|---|---|---|---|---|---|
| BOP | Pressure Rating | Nitrile | CAMLAST | ||
| Size | (psi) | Bonnet Seal | Conn. Rod Seal | Bonnet Seal | Conn. Rod Seal |
| 7-1/16″ | 3,000, 5,000, 10,000 and 15,000 | 644197-01-00-01 | 212741-37-00-01 | 644573-01-00-01 | 645077-37-00-01 |
| 11″ | 3,000, 5,000 and 10,000 | 644197-02-00-01 | 212741-38-00-01 | 644573-02-00-01 | 645077-38-00-01 |
| 11″ | 15,000 Model 79 | 049272-03-00-01 | 212741-38-00-01 | 644898-01-00-01 | 645077-38-00-01 |
| 13-5/8″ | 3,000, 5,000 and 10,000 | 644197-03-00-01 | 212741-36-00-01 | 644573-03-00-01 | 645077-36-00-01 |
| 13-5/8″ | 15,000 | 644196-01-00-01 | 212741-36-00-01 | 644898-02-00-01 | 645077-36-00-01 |
| 16-3/4″ | 3,000 and 5,000 Model B | 644197-04-00-01 | 212741-44-00-01 | 644573-04-00-01 | 645077-44-00-01 |
| 16-3/4″ | 10,000 Model II | 644197-04-00-01 | 212741-44-00-01 | 644573-04-00-01 | 645077-44-00-01 |
| 18-3/4″ | 10,000 | 644197-05-00-01 | 212741-60-00-01 | 644573-05-00-01 | 645077-60-00-01 |
| 20-3/4″ | 3,000 | 046613-16-00-01 | 212741-36-00-01 | 046613-26-00-01 | 645077-36-00-01 |
| 21-1/4″ | 2,000 | 046613-16-00-01 | 212741-36-00-01 | 046613-26-00-01 | 645077-36-00-01 |
| 21-1/4″ | 5,000 and 10,000 Model 79 | 644197-08-00-01 | 011741-58-00-01 | 644573-08-00-01 | 645077-58-00-01 |
| 21-1/4″ | 7,500 and 10,000 Model II | 644197-07 | 011741-58-00-01 | 644573-07-00-01 | 645077-36-00-01 |
| 26-3/4″ | 2,000 and 3,000 | 644197-09-00-01 | 212741-36-00-01 | 644573-09-00-01 | 645077-58-00-01 |
