Description
CAMTOP Valve Removal (VR) Plug Lubricators
The CAMTOP VR manual lubricator safely facilitates Valve Removal Plug installation into the wellhead for side equipment removal or installation without killing the well. Used in wellhead and Christmas tree intervention and repairs, it isolates and contains wellbore pressure while the valve removal plug is run or pulled.
Features & Benefits
- Available with VR Plug, API Flanges, and 1502 Adaptor Unions for connecting with tree and wellhead side outlets
- Compact yoke for a wrench turning area
- Custom strokes and pressure ratings on request
- Easy access to packing gland seals for fast maintenance
- High-pressure ratings and corrosion resistance for manifold components — valves, tubing, and gauges
CAMTOP VR plug lubricators are test and field-proven, with an equivalent service history of over 35 years in wellhead manufacturers and repair facilities worldwide.

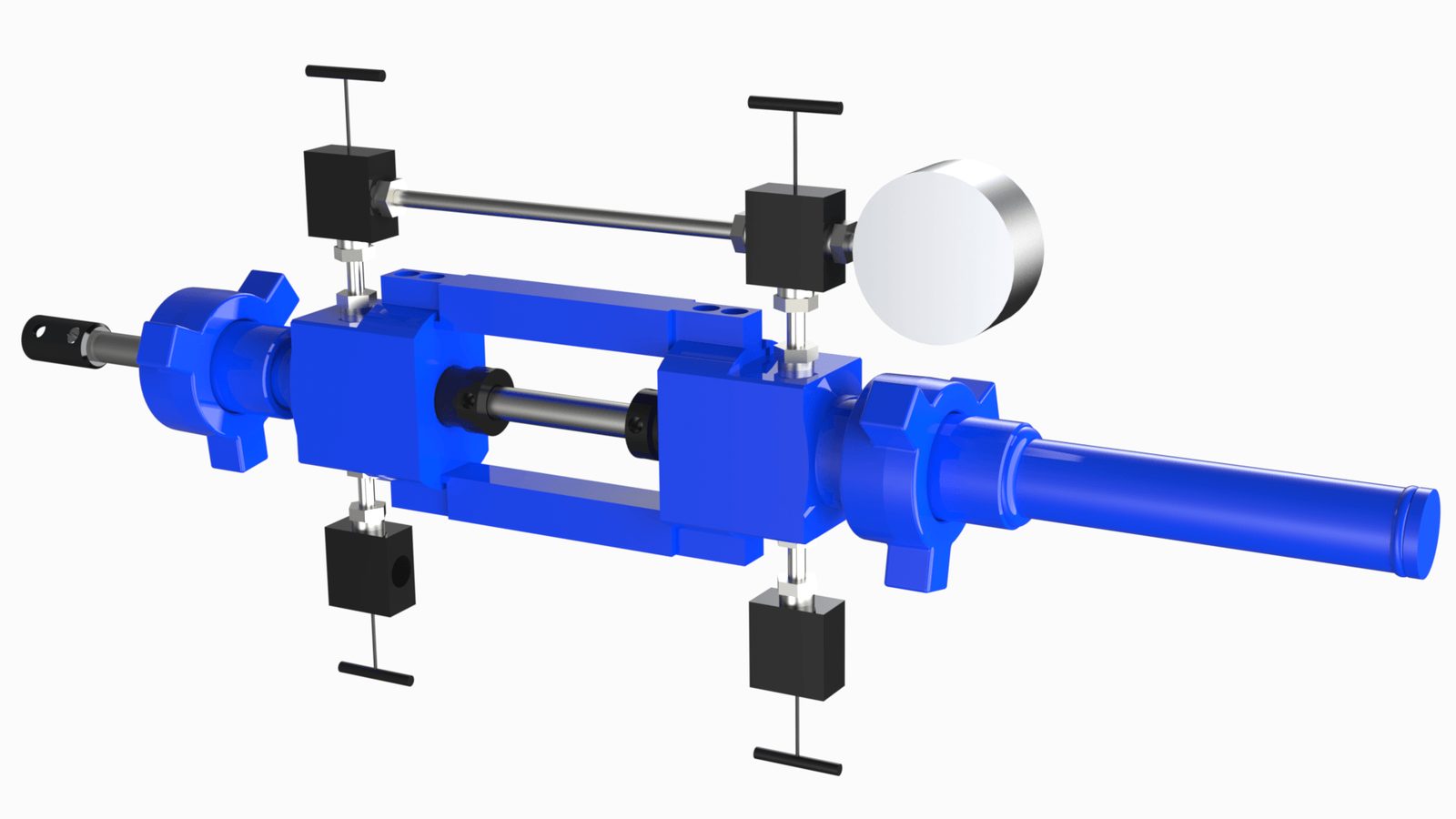

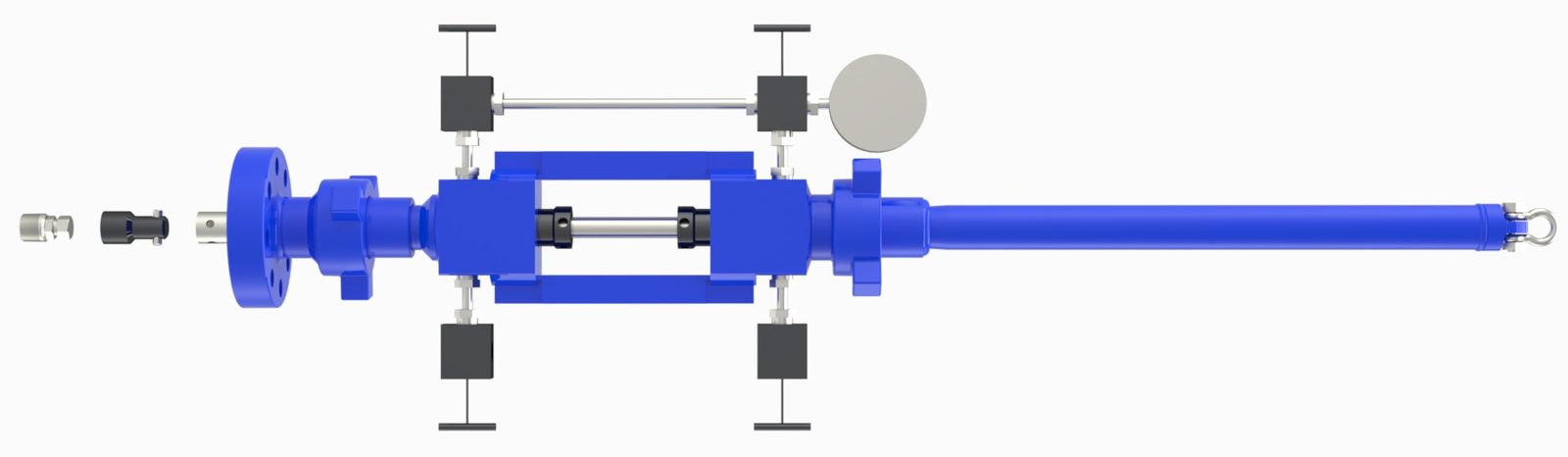

Product Images
VR Lubricator Specifications
| Description | P/N |
|---|---|
| VR Lubricator, 10,000 PSI, NACE Trim | A1810-4V |
| VR Lubricator, 10,000 PSI, NACE Trim, Very Compact 42.5″ OAL, 19″ Stroke | A1808-4V |
| VR Lubricator, 10,000 PSI, NACE Trim, Very Compact 45″ OAL w/1502 Union, 19″ Stroke | A1809-4V |
| VR Lubricator, 10,000 PSI, NACE Trim with 1-1/4″ x 92″ Polished Rod | S1810-4V |
Lubricator Accessories
| Description | P/N |
|---|---|
| Packing Set (complete) — Manganese Bronze Adapters (2), TFE Rings (5) | A1849 |
| Packing Set — TFE Rings (5), replacement only | A1486 |
| Gear Wrench for 1-1/8″ Polished Rod | A1825 |
| Parmelee Wrench for 1-1/8″ Polished Rod | A1410 |
| Parmelee Wrench for 1-1/4″ Polished Rod | A1411 |
| Spanner Wrench (for Gland Nuts) | A1414 |
| BPV R&R Tool, Stinger Type for 1-3/4″ BPV | A1299 |
| BPV R&R Tool, Stinger Type for 2-3″ BPV | A1297 |
| BPV R&R Tool, Stinger Type for 2-6″ BPV | A1270 |
| VR Plug R&R Tool, 1-1/8″ Hex for 1-1/4″ LP | A1339 |
| VR Plug R&R Tool, 1-3/8″ Hex for 1-1/2″ to 3″ LP | A1345 |
| VR Plug R&R Tool, 1-1/4″ Hex (CIW) | A1384 |
| Polished Rod, 1-1/8″ x 92″ SS | A1433 |
| Polished Rod, 1-1/8″ x 146″ SS | A1434 |
| Polished Rod, 1-1/8″ x 192″ SS | A1462 |
| Polished Rod, 1-1/8″ x 220″ SS | A1448 |
| Polished Rod, 1-1/4″ x 92″ SS | A1862 |
| Polished Rod, 1-1/4″ x 146″ SS | A1860 |
| Clamp for 1-1/8″ Polished Rod | 4934 |
| Clamp for 1-1/4″ Polished Rod | 4935 |
| Adapter, 2″ 1502 Fem. Union x 2-3/8″ Uptbg. Pin | A1850 |
| Adapter, 2″ 1502 Fem. Union x 2-7/8″ Uptbg. Pin | A1851 |
| Adapter, 2″ 1502 Fem. Union x 3-1/2″ Uptbg. Pin | A1852 |
| Adapter, 2″ 1502 Fem. Union x 4-1/2″ Uptbg. Pin | A1853 |
| Adapter, 2″ 1502 Fem. Union x Blank Pin | A1854 |
| Adapter, 2″ 1502 Fem. Union x 2″ API LP Pin | A1855 |
| Adapter, 2″ 1502 Fem. Union x 2-1/2″ API LP Pin | A1856 |
| Adapter, 2″ 1502 Fem. Union x 3″ API LP Pin | A1857 |
| Hydraulic Hand Pump | A1890 |
| Double Studded Adapter Flange 2″ 15K x 2-9/16″ 15K | A1859 |
Adapter Flanges, Union x Flange
| Description | P/N |
|---|---|
| Adapter, 2″ 1502 Fem. Union x 1-13/16″ 10M Flange | A1838 |
| Adapter, 2″ 1502 Fem. Union x 1-13/16″ 15M Flange | A1839 |
| Adapter, 2″ 1502 Fem. Union x 2″ 3/5M Flange | A1840 |
| Adapter, 2″ 1502 Fem. Union x 2″ 10M Flange | A1841 |
| Adapter, 2″ 1502 Fem. Union x 2-9/16″ 3/5M Flange | A1842 |
| Adapter, 2″ 1502 Fem. Union x 2-9/16″ 10M Flange | A1843 |
| Adapter, 2″ 1502 Fem. Union x 3″ 3M Flange | A1844 |
| Adapter, 2″ 1502 Fem. Union x 3″ 5M Flange | A1845 |
| Adapter, 2″ 1502 Fem. Union x 3″ 10M Flange | A1846 |
| Adapter, 2″ 1502 Fem. Union x 4″ 3M Flange | A1826 |
| Adapter, 2″ 1502 Fem. Union x 4″ 5M Flange | A1827 |
| Adapter, 2″ 1502 Fem. Union x 4″ 10M Flange | A1828 |
| Adapter, 2″ 1502 Fem. Union x 5″ 3M Flange | A1848 |
| Adapter, 2″ 1502 Fem. Union x 5″ 5M Flange | A1847 |
| Adapter, 2″ 1502 Fem. Union x 7″ 2M Flange | A1864 |
| Adapter, 2″ 1502 Fem. Union x 7″ 3M Flange | A1849 |
| Adapter, 2″ 1502 Fem. Union x 7″ 5M Flange | A1824 |
| Adapter, 2″ 1502 Fem. Union x 11″ 3M Flange | A1829 |
Lockdown Screw Pullers
| Description | P/N |
|---|---|
| Lockdown Screw Puller Body Assembly Only | A3040 |
| 3/4″ Collet Slip | 3041 |
| 7/8″ Collet Slip | 3042 |
| 1″ Collet Slip | 3043 |
| 1-1/8″ Collet Slip | 3044 |
| 1-3/8″ Collet Slip | 3045 |
WKM Seat Removal Tool — Slip & Bar Style
| Description | P/N |
|---|---|
| 1-13/16″ Complete Tool | A3032 |
| 2-1/16″ Complete Tool | A3033 |
| 2-9/16″ Complete Tool | A3034 |
| 3-1/8″ Complete Tool | A3035 |
| 4-1/8″ Complete Tool | A3036 |
| 1-13/16″ Slip Only | 3018 |
| 2-1/16″ Slip Only | 3019 |
| 2-9/16″ Slip Only | 3021 |
| 3-1/8″ Slip Only | 3022 |
| 4-1/8″ Slip Only | 3023 |
| 1-13/16″ to 4″ Seat Removal Bar only | 3024 |
| 1-13/16″ to 4″ Pin | 3025 |
WKM Seat Removal Tool — Positive Grip Thru Bonnet
| Description | P/N |
|---|---|
| 1-13/16″ & 2-1/16″ | A4273 |
| 2-9/16″ | A4276 |
Why Choose CAMTOP
- Complete range — standard and very compact 10,000 PSI NACE trim VR lubricators
- Full accessories package — packing sets, wrenches, R&R tools, polished rods, clamps and adapters ex-stock
- Interchangeable design — compatible with industry-standard VR plug lubricator interfaces
- Pressure tested — every unit hydrostatically tested before shipment
- Custom strokes and pressure ratings available on request
- 24/7 technical support — direct engineering line
