BPV Lubricator – Type ‘H’ Back Pressure Valve Lubricator
Description
CAMTOP Type ‘H’ Back Pressure Valve (BPV) Lubricators
CAMTOP manual back pressure valve lubricators are used to safely facilitate the installation of back pressure valves (BPV) or two-way check valves (TWCV) into a wellhead tubing hanger. Used in wellhead and Christmas tree intervention & repairs, the lubricator isolates and contains wellbore pressure while running or pulling the valve — keeping the operation safe and controlled.
CAMTOP BPV lubricators are test and field-proven, successfully used by wellhead manufacturers and repair providers worldwide for over 35 years of equivalent service history.
Product Images

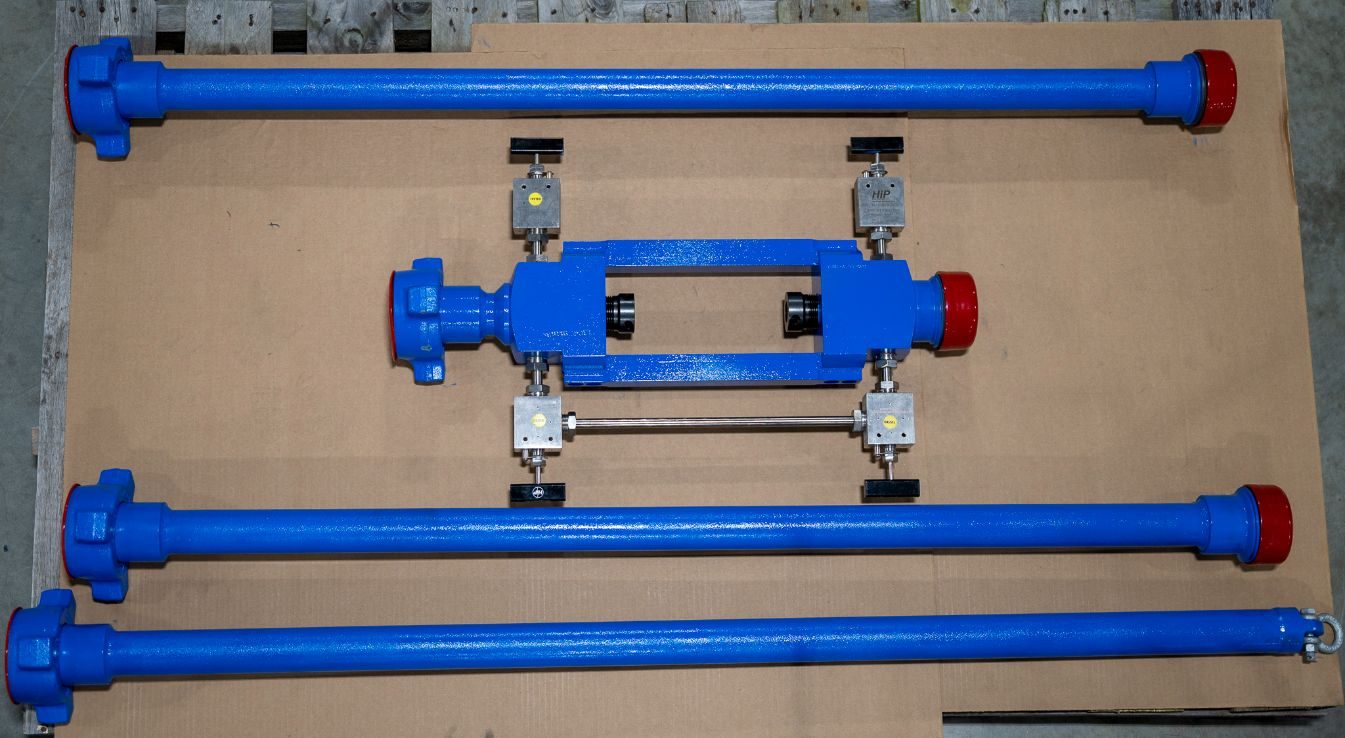

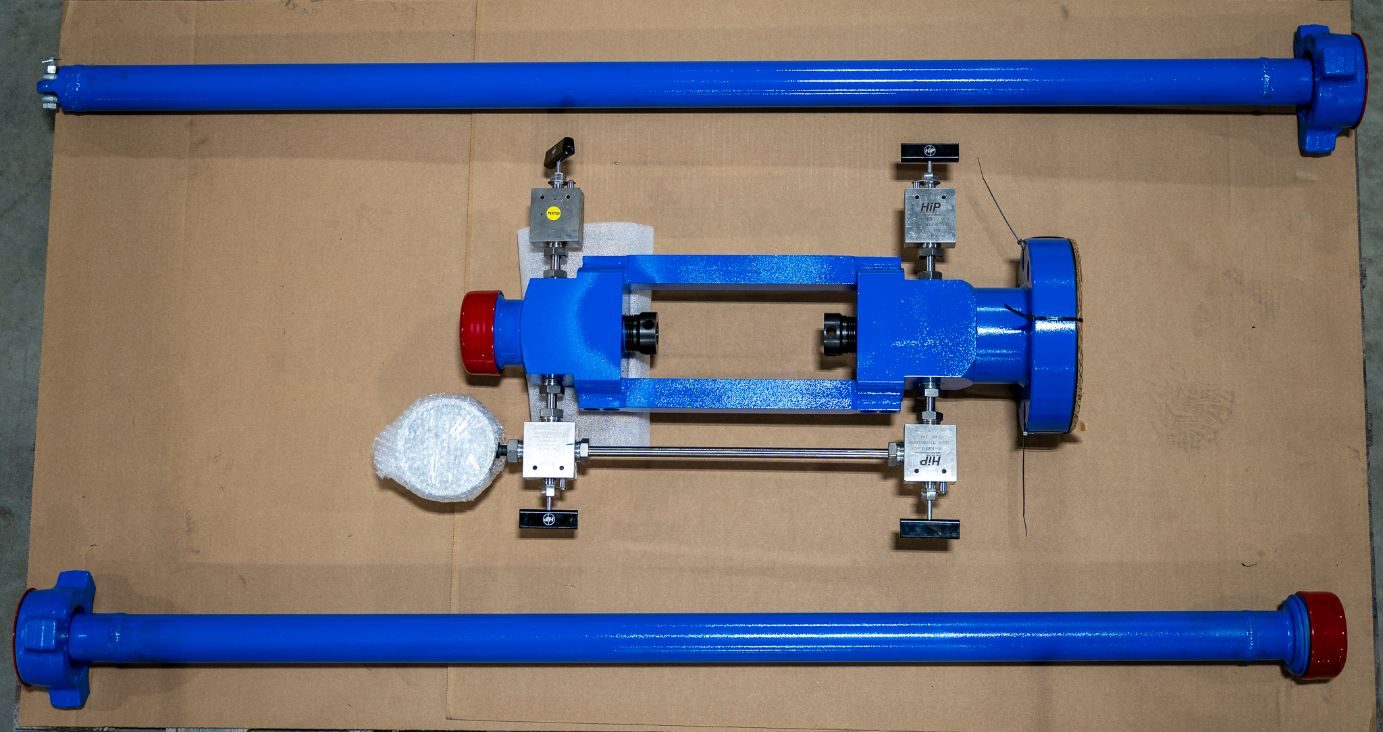

BPV Lubricator with 1502 Union connection (left) and API Flange connection (right)
Features & Benefits
- Available with API Flanges, 1502 Unions, and Pin adaptors for connecting with tree and wellhead outlets
- Large operating window for polished rod access
- Custom strokes and pressure ratings on request
- Easy access to packing gland seals for fast maintenance
- High-pressure ratings and corrosion resistance for manifold components — valves, tubing, and gauges
BPV Lubricator Size Chart
| Size / Description | P/N |
|---|---|
| BPV Lubricator, 10,000 PSI, NACE Trim, 146″ Polished Rod, 118″ Stroke | A1800-4V |
| BPV Lubricator, 10,000 PSI, NACE Trim, 192″ Polished Rod, 164″ Stroke | A1801-4V |
| BPV Lubricator, 10,000 PSI, NACE Trim, 220″ Polished Rod, 192″ Stroke | A1802-4V |
| 1-13/16″ Lubricator, Flanged, 15,000 PSI w/ 1-1/8″ × 146″ Polished Rod | A1335 |
| 2-1/16″ Lubricator, Flanged, 15,000 PSI w/ 1-1/8″ × 146″ Polished Rod | A1336 |
| 2-9/16″ Lubricator, Flanged, 15,000 PSI w/ 1-1/8″ × 146″ Polished Rod | A1337 |
| 3-1/8″ Lubricator, Flanged, 15,000 PSI w/ 1-1/8″ × 146″ Polished Rod | A1341 |
| 4-1/8″ Lubricator, Flanged, 15,000 PSI w/ 1-1/8″ × 146″ Polished Rod | A1386 |
| 1-13/16″ Lubricator, Flanged, 15,000 PSI w/ 1-1/8″ × 192″ Polished Rod | A1830 |
| 2-1/16″ Lubricator, Flanged, 15,000 PSI w/ 1-1/8″ × 192″ Polished Rod | A1831 |
| 2-9/16″ Lubricator, Flanged, 15,000 PSI w/ 1-1/8″ × 192″ Polished Rod | A1832 |
| 3-1/8″ Lubricator, Flanged, 15,000 PSI w/ 1-1/8″ × 192″ Polished Rod | A1833 |
| 4-1/8″ Lubricator, Flanged, 15,000 PSI w/ 1-1/8″ × 192″ Polished Rod | A1834 |
| BPV Lubricator, 10,000 PSI, NACE Trim w/ 1-1/4″ × 146″ Polished Rod | S1800-4V |
| 1-13/16″ Lubricator, Flanged, 15,000 PSI w/ 1-1/4″ × 146″ Polished Rod | A1335-S |
| 2-1/16″ Lubricator, Flanged, 15,000 PSI w/ 1-1/4″ × 146″ Polished Rod | A1336-S |
| 2-9/16″ Lubricator, Flanged, 15,000 PSI w/ 1-1/4″ × 146″ Polished Rod | A1337-S |
| 3-1/8″ Lubricator, Flanged, 15,000 PSI w/ 1-1/4″ × 146″ Polished Rod | A1341-S |
| 4-1/8″ Lubricator, Flanged, 15,000 PSI w/ 1-1/4″ × 146″ Polished Rod | A1344-S |
BPV Lubricator Accessories
| Description | P/N |
|---|---|
| Packing Set (complete) — Manganese Bronze Adapters (2), TFE Rings (5) | A1849 |
| Packing Set — TFE Rings (5), replacement only | A1486 |
| Gear Wrench for 1-1/8″ Polished Rod | A1825 |
| Parmelee Wrench for 1-1/8″ Polished Rod | A1410 |
| Parmelee Wrench for 1-1/4″ Polished Rod | A1411 |
| Spanner Wrench (for Gland Nuts) | A1414 |
| BPV R&R Tool, Stinger Type for 1-3/4″ BPV | A1299 |
| BPV R&R Tool, Stinger Type for 2-3″ BPV | A1297 |
| BPV R&R Tool, Stinger Type for 2-6″ BPV | A1270 |
| VR Plug R&R Tool, 1-1/8″ Hex for 1-1/4″ LP | A1339 |
| VR Plug R&R Tool, 1-3/8″ Hex for 1-1/2″ to 3″ LP | A1345 |
| VR Plug R&R Tool, 1-1/4″ Hex (CIW) | A1384 |
| Polished Rod, 1-1/8″ × 92″ SS | A1433 |
| Polished Rod, 1-1/8″ × 146″ SS | A1434 |
| Polished Rod, 1-1/8″ × 192″ SS | A1462 |
| Polished Rod, 1-1/8″ × 220″ SS | A1448 |
| Polished Rod, 1-1/4″ × 92″ SS | A1862 |
| Polished Rod, 1-1/4″ × 146″ SS | A1860 |
| Clamp for 1-1/8″ Polished Rod | 4934 |
| Clamp for 1-1/4″ Polished Rod | 4935 |
| Hydraulic Hand Pump | A1890 |
| Double Studded Adapter Flange 2″ 15K × 2-9/16″ 15K | A1859 |
| Adapter, 2″ 1502 Fem. Union × 2-3/8″ Uptbg. Pin | A1850 |
| Adapter, 2″ 1502 Fem. Union × 2-7/8″ Uptbg. Pin | A1851 |
| Adapter, 2″ 1502 Fem. Union × 3-1/2″ Uptbg. Pin | A1852 |
| Adapter, 2″ 1502 Fem. Union × 4-1/2″ Uptbg. Pin | A1853 |
| Adapter, 2″ 1502 Fem. Union × Blank Pin | A1854 |
| Adapter, 2″ 1502 Fem. Union × 2″ API LP Pin | A1855 |
| Adapter, 2″ 1502 Fem. Union × 2-1/2″ API LP Pin | A1856 |
| Adapter, 2″ 1502 Fem. Union × 3″ API LP Pin | A1857 |
Adapter Flanges, Union × Flange
| Description | P/N |
|---|---|
| Adapter, 2″ 1502 Fem. Union × 1-13/16″ 10M Flange | A1838 |
| Adapter, 2″ 1502 Fem. Union × 1-13/16″ 15M Flange | A1839 |
| Adapter, 2″ 1502 Fem. Union × 2″ 3/5M Flange | A1840 |
| Adapter, 2″ 1502 Fem. Union × 2″ 10M Flange | A1841 |
| Adapter, 2″ 1502 Fem. Union × 2-9/16″ 3/5M Flange | A1842 |
| Adapter, 2″ 1502 Fem. Union × 2-9/16″ 10M Flange | A1843 |
| Adapter, 2″ 1502 Fem. Union × 3″ 3M Flange | A1844 |
| Adapter, 2″ 1502 Fem. Union × 3″ 5M Flange | A1845 |
| Adapter, 2″ 1502 Fem. Union × 3″ 10M Flange | A1846 |
| Adapter, 2″ 1502 Fem. Union × 4″ 3M Flange | A1826 |
| Adapter, 2″ 1502 Fem. Union × 4″ 5M Flange | A1827 |
| Adapter, 2″ 1502 Fem. Union × 4″ 10M Flange | A1828 |
| Adapter, 2″ 1502 Fem. Union × 5″ 3M Flange | A1848 |
| Adapter, 2″ 1502 Fem. Union × 5″ 5M Flange | A1847 |
| Adapter, 2″ 1502 Fem. Union × 7″ 2M Flange | A1864 |
| Adapter, 2″ 1502 Fem. Union × 7″ 3M Flange | A1849 |
| Adapter, 2″ 1502 Fem. Union × 7″ 5M Flange | A1824 |
| Adapter, 2″ 1502 Fem. Union × 11″ 3M Flange | A1829 |
Lockdown Screw Pullers
| Description | P/N |
|---|---|
| Lockdown Screw Puller Body Assembly Only | A3040 |
| 3/4″ Collet Slip | 3041 |
| 7/8″ Collet Slip | 3042 |
| 1″ Collet Slip | 3043 |
| 1-1/8″ Collet Slip | 3044 |
| 1-3/8″ Collet Slip | 3045 |
WKM Seat Removal Tool — Positive Grip Thru Bonnet
| Description | P/N |
|---|---|
| WKM Seat Removal Tool, 1-13/16″ & 2-1/16″ | A4273 |
| WKM Seat Removal Tool, 2-9/16″ | A4276 |
Why Choose CAMTOP
- Complete range — 10,000 PSI NACE trim and 15,000 PSI flanged lubricators, 146″/192″/220″ strokes
- Full accessories package — packing sets, wrenches, R&R tools, polished rods, clamps and adapters ex-stock
- Interchangeable design — compatible with industry-standard Type ‘H’ BPV lubricator interfaces
- Pressure tested — every unit hydrostatically tested before shipment
- Custom strokes and pressure ratings available on request
- 24/7 technical support — direct engineering line for selection and operation questions
Ordering Information
Specify the P/N from the size chart above, or contact us with your wellhead outlet size, pressure rating and required stroke — custom configurations available.
