Portable Air Driven Liquid Booster Pump for Pressure Vessel Hydrostatic Test

Product Description

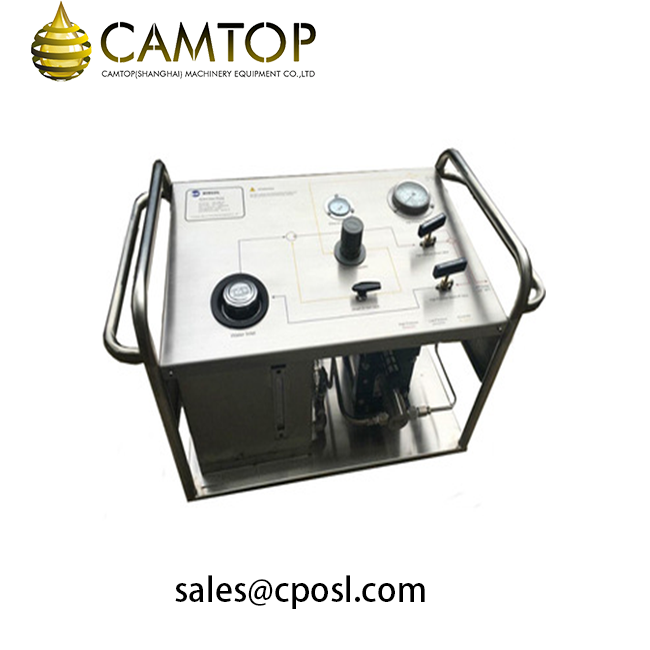

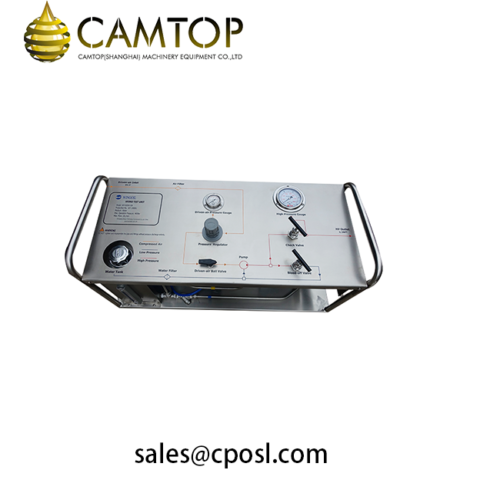

Camtop series portable air-driven hydrostatic test pumps are a fast, safe and simple pressure testing equipment for hydrostatic testing operation, ideally suited to work with the plugs or on a stand alone basis eg. heat exchanger tubes, cylinder, valves, pipes, pressure vessels, hoses, blowout preventers(BOP), down-hole tools, pipelines, boilers, etc. This air-driven hydrostatic test equipment has been widely used on oil and gas industry, shipping industry, fire protection industry, and other civil use industries.

Our air-operated hydro test pumps using oil, water or glycol medium are complete hydraulic units ready for connection which are provided for generating operating pressure up to 2,000bar.

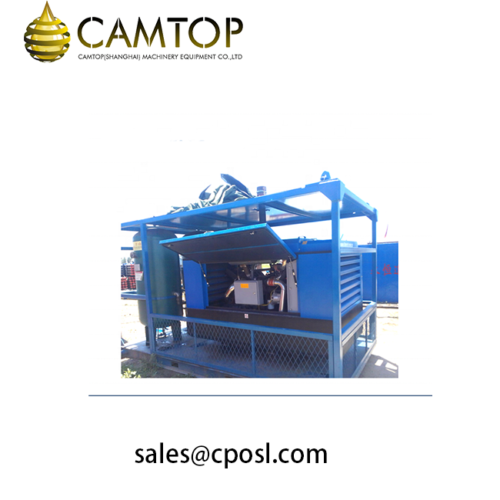

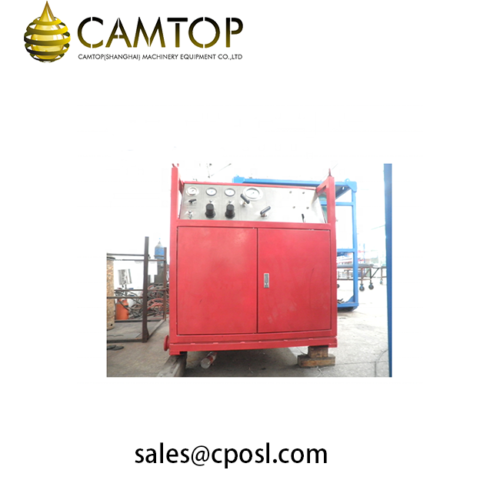

The pressure will be generated and boosted by means of a pneumatic hydraulic pump, which will be connected to the existing industrial compressed-air system at 6~12 bar. To make the air-operated hydrostatic test equipment portable and light, we generally equipped single pump and dual pump on skid(customized).

Technical parameters

Item Description
Medium Water,Oil, Glyco, Chemicals
Pressure 0~2000bar/29000PSI
Flow 0~24L/min;(customize)
Pressure accuracy ±1%FS
High pressure gauge 0~3000bar/43500PSI
Needle valve 412bar~2400bar(customize)
Pressure regulator YES
Relief valve YES
Air compressor N/A(customize)
