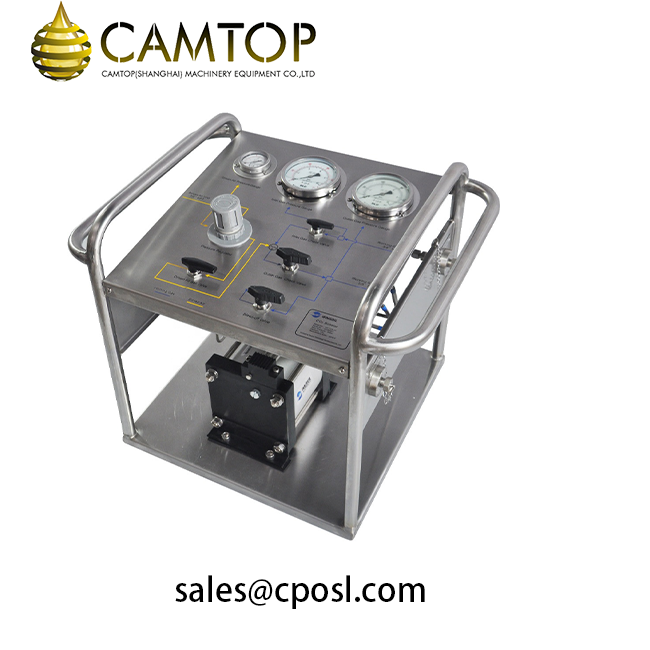

Air Driven Gas Booster Unit Wellhead Control Panel

Product Description


Camtop series portable air-driven hydrostatic test pumps are a fast, safe and simple pressure testing equipment for hydrostatic testing operation, ideally suited to work with the plugs or on a stand alone basis eg. heat exchanger tubes, cylinder, valves, pipes, pressure vessels, hoses, blowout preventers(BOP), down-hole tools, pipelines, boilers, etc. This air-driven hydrostatic test equipment has been widely used on oil and gas industry, shipping industry, fire protection industry, and other civil use industries.

Our air-operated hydro test pumps using oil, water or glycol medium are complete hydraulic units ready for connection which are provided for generating operating pressure up to 2,000bar.

The pressure will be generated and boosted by means of a pneumatic hydraulic pump, which will be connected to the existing industrial compressed-air system at 6~12 bar. To make the air-operated hydrostatic test equipment portable and light, we generally equipped single pump and dual pump on skid(customized).

Technical parameters

Medium: CO2, O2, N2, He gas or air
Max. output pressure 800 bar
Max. flow   225LN/min@7bar compressed air
Max. Inlet pressure   3.4bar
Rated pressure of Valve   6000PSI
Pressure regulator   YES
Relief valve   YES
Air compressor N/A(customize)
