Pneumatic Safety High Pressure Portable Hydrostatic Pump Pressure Test

  • Product Overview

Hose/Pipe/Cylinder/Valve Test

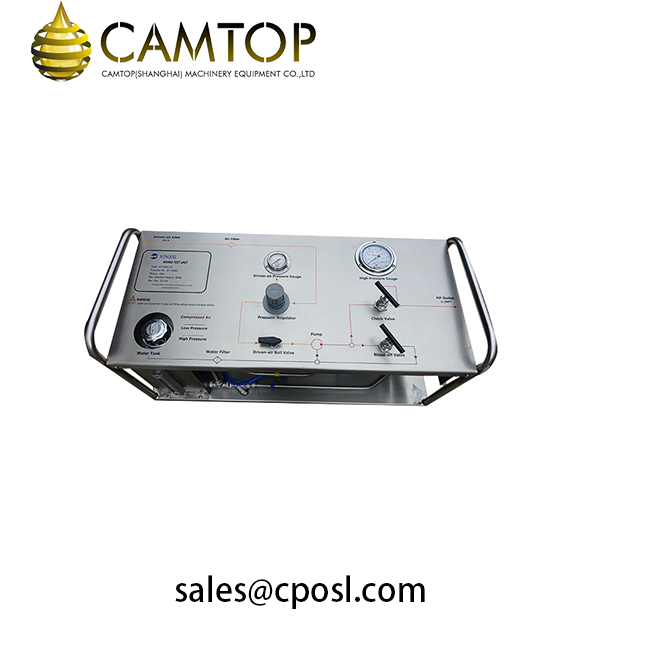

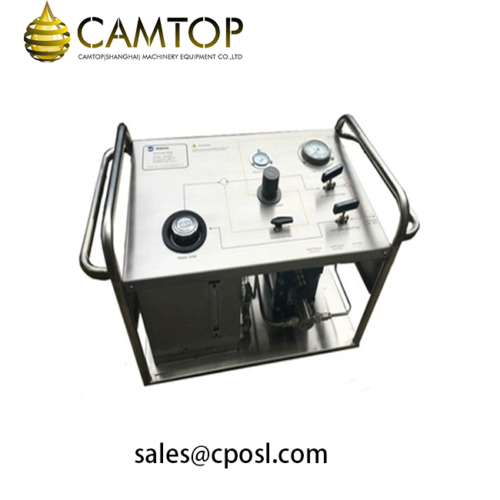

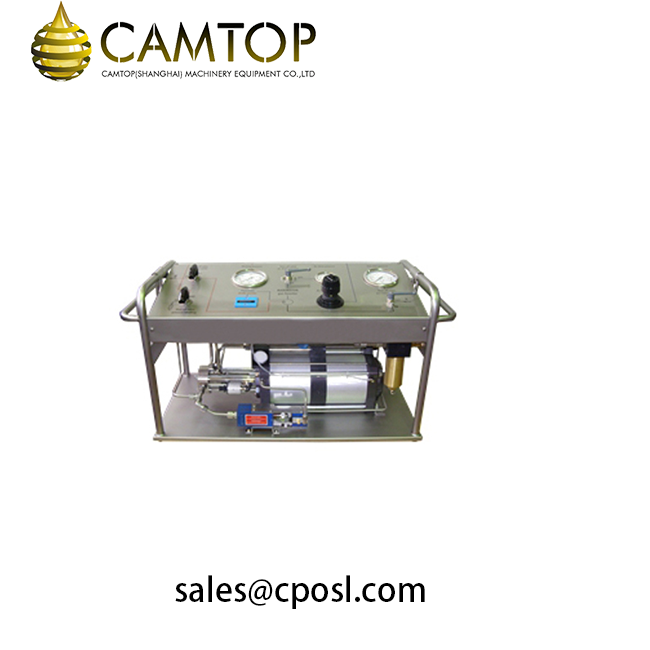

CamtopPortable Pressure Test Systems utilize the advantages of air driven liquid pumps and are assembled into robust, lightweight portable packages ideal for providing liquid transfer and pressurization for a wide range of pressure testing applications, such as for vessels, pipes, valves, etc. These selfcontained units are powered by compressed air and designed for use with a wide range of fluids of water, or soluble oil as the hydrostatic test media. The pumps, valves and tubes are all made of stainless steel and can withstand the harsh working conditions of high temperature and high pressure. The portable, lightweight test rigs are designed for onsite pressure testing – both onshore and offshore.


l Low-pressure compressed air as the booster power source, safe and environmentally friendly

l Infinitely variable output pressure and flow

l Holds static pressure without generating heat or consuming power

l No heat, flame or risk of spark

l Standard models are suitable for oil & water applications

l Well proven and trouble-free operation

l Designed for ease of maintenance

l Low cost servicing

l Compact, robust, selfcontained structure

  • Applicable Medium
  • Water/Liquified CO2/ Liquified Nitrogen Pressurization/Hydraulic oil/Methanol / ethanol / ethylene glycol/ Chemicals
    • Hose test, hose test, rigid pipe test, metal pipe test, container test, valve test, high pressure gas cylinder test, pipeline component test
    • Burst test, strength test, fatigue test, hydraulic power unit, chemical reagent injection
    • Petroleum industry, fire protection industry, automobile industry, chemical industry, aerospace, science laboratory

  •  Performance Date
Model Max. Output Pressure

@100 psi(7bar) air drive

Max.  Outlet Flow
Bar Psi Liter/min Cu Ins/min
WY-80W-J0A 80 1160 15 915
WY-80W-J0B 25 1525
WY-80W-J0C 45 2476
WY-130W-J0A 130 1885 9 549
WY-130W-J0B 20 1220
WY-130W-J0C 30 1830
WY-200W-J0A 200 2900 4 244
WY-200W-J0B 12 732
WY-200W-J0C 23 1403
WY-350W-J0A 350 5075 4 244
WY-350W-J0B 10 610
WY-350W-J0C 20 1220
WY-500W-J0A 500 7250 2 122
WY-500W-J0B 5 305
WY-500W-J0C 10 610
WY-800W-J0A 800 11600 1.5 91
WY-800W-J0B 4 244
WY-800W-J0C 7 427
WY-1000W-J0A 1000 14500 4.5 274
WY-1400W-J0A 1400 20300 1.8 109
WY-1400W-J0B 3.2 195
  • Connection&Consruction

Ø Driven-air inlet: G1/2

Ø Driven-air outlet: 1/2″NPT(F)

Ø High-pressure outlet : G1/4-60°

Frame and panel Stainless steel
Pressure gauge
Pump head

If you can’t find suitable model for your application by above information,  we can service you after knowing blow basic technical parameters:

1. What is your present gas pressure?(    )bar

2. The pressurized gas is oxygen,nitrogen or any other?

3. How about the Max.outlet gas pressure you want to reach?(    )bar

4.What is the driven air pressure (of your air compressor) you can offer?(    )bar

5. how about the required flow rate(   )L/min
