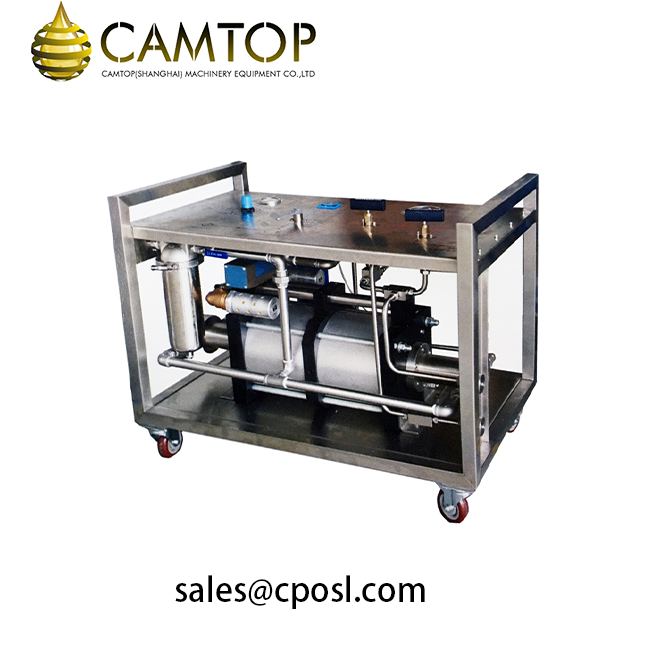

Blowout Preventer(BOP) Hydro Pressure Air Driven Hydrostatic Test Pump

Product Description

Introduction

Offshore hydraulic test bench are a fast, safe and simple method for hydrostatic

testing, ideally suited to work with the above plugs or on a stand alone basis eg heat exchanger

tubes, pipes, pressure vessels, hoses, etc.

Mobile hydraulic test bench are for oil, water or aggressive medium are complete hydraulic

units ready for connection which are provided for generating operating pressure up to 1,500bar.

The pressure will be generated by means of a pneumatically operated pump. The pump will be

connected to the existing industrial compressed-air ductwork system for hydraulic pressure test bench.

Advantages

– Standstill of the pump when reaching the set final pressure

– No energy consumption in case of long pressure holding times

– No dissipated heat during the pressure holding phase

– Substitute of leakage by automatic re-delivery through the pump

– Regulator to control inlet air supply

– High pressure bleed valve and high pressure outlet

– Simple air-driven pump

– Test in the field or in the shop

– Simple installation, operationally reliable, easy to maintain

Technical parameters

Item	Description
Medium	Water,gas,glycol kinds of chemicals
Pressure	0~1500bar
Flow	0~26.39GPM(it’s customize)
Pressure accuracy	±1%FS
High pressure gauge	0~2000bar
Needle valve	412bar~2000bar(it’s customize)
Pressure regulator	YES
Bleed-off valve	YES
Air compressor	N/A(it’s customize)
Water tank	YES
Record	N/A/mechanical/electronic recorder
