Cameron provides the most comprehensive range of BOP rams and ram packers in the industry for managing well control events, including rams for shearing high-strength casing and drill collars, variable bore sealing, and high-temperature applications.

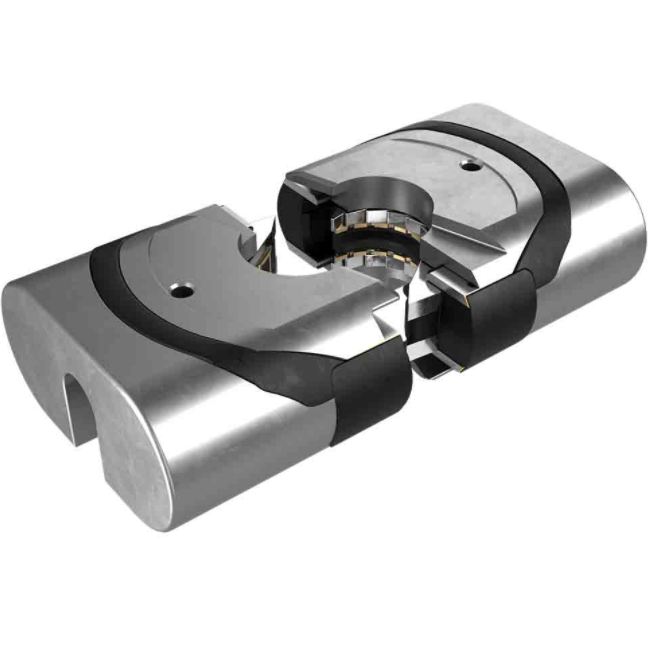

Severe Service U and UM BOP H2S Shearing Blind Ram
Description
Severe Service U and UM BOP H2S Shearing Blind Ram

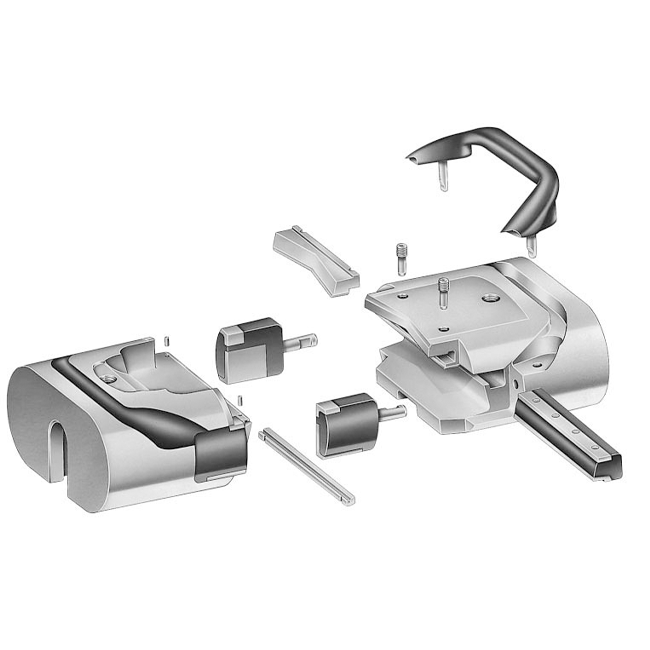

| Severe Service U and UM BOP H2S Shearing Blind Ram Part Numbers | ||||||||
|---|---|---|---|---|---|---|---|---|
| BOP Bore Size and Working Pressure (psi) | 1 Upper Ram Subassy |
2 Ram |
3 Blade Packer |
4 Packer |
5 Packer |
6 Top Seal |
7 Blade Insert |
8 Set Screw (QTY 2 Req’d) |
| 11″ 10,000 | / | 645009-01-00-01 | 644834-04-00-01 | 2164284-04 | 2164285-04 | 644703-01-00-01 | 645010-01-00-01 | 644582-01 |
| 13-5/8″ 5,000 and 10,000 |
644781-03-00-01 | 644780-01-00-01 | 644834-01-00-01 | 645427-01-00-01 | 645428-01-00-01 | 644707-01-00-01 | 644581-01-00-01 | 644582-01 |
| 13-5/8″ 15,000 | 2163019-01-02 | 2163017-01-01 | 644834-02-00-01 | 644832-03-00-01 | 644833-01-00-01 | 644709-01-00-01 | 2164281-01 | 644582-01 |
| Severe Service U and UM BOP H2S Shearing Blind Ram Part Numbers | ||||||||
| BOP Bore Size and Working Pressure (psi) | 9 Lower Ram Subassy |
10 Ram |
11 Packer |
12 Packer |
13 Top Seal |
14 Blade Insert |
15 Pin(QTY 2 req’d) |
/ |
| 11″ 10,000 | / | 645009-02-00-01 | 2164284-04 | 2164285-04 | 644703-01-00-01 | 645010-02-00-01 | 200231 | |
| 13-5/8″ 5,000 and 10,000 |
644781-04-00-01 | 644780-02-00-01 | 645427-01-00-01 | 645428-01-00-01 | 644707-01-00-01 | 644581-02-00-01 | 200231 | |
| 13-5/8″ 15,000 | 2163019-02-02 | 2163018-01-01 | 644832-03-00-01 | 644833-03-00-01 | 644709-01-00-01 | 644581-02-00-01 | 200231 | |
