H2S Shearing Blind Ram

am Blocks – Type U / UM
7-1/16″ 3/15M

Pipe – 1-3/4″, 2-3/8″, 2-7/8″, 3-1/2″, 4-1/2″ & 5-1/2″

Slip Rams with Full Face Solid Slip Inserts –

1-1/2″, 1-3/4″, 2″, 2-3/8″ & 2-7/8″

Blind Rams

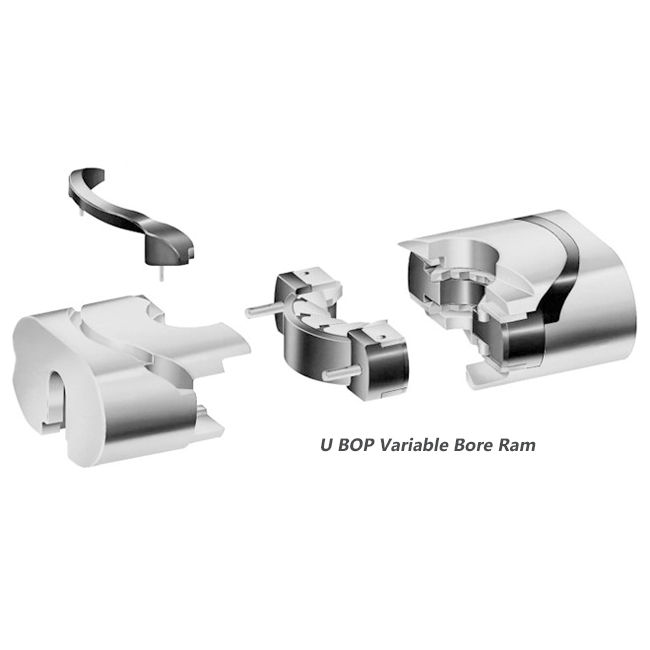

Variable Bore Rams (VBR) – 3-1/2″ to 2-3/8″

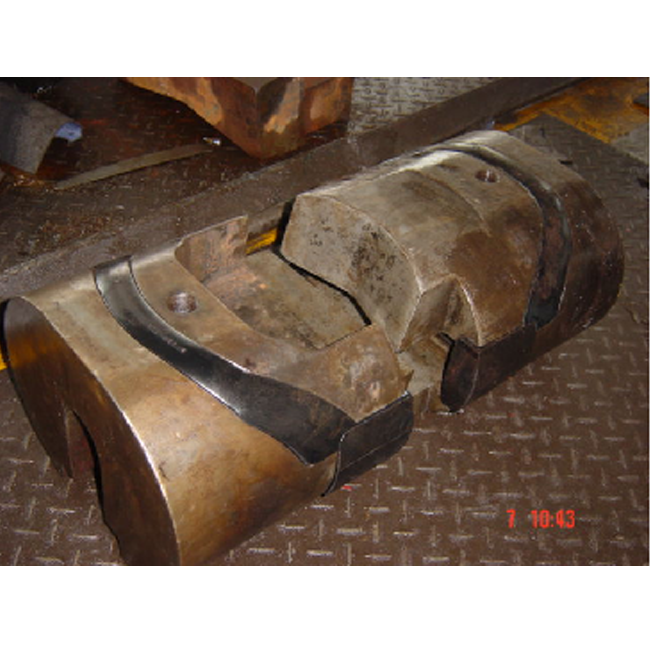

Shear Blind Rams – SBR & DVS

13-5/8″ 3/10M

Pipe – 2-3/8″, 2-7/8″, 3-1/2″, 4″, 4-1/2″, 5″, 5-1/2″, 7″, 9-5/8, 10-3/4″

Blind Rams

Variable Bore Rams (VBR) –

5″ to 2-7/8″, 5-1/2″ to 3-1/2″, 5-7/8″ to 3-1/2″ & 7″ to 4-1/2″

Shear Blind Rams – ISR & H2S-SBR

20-3/4″ 3M

Pipe – 5″, 5-1/2″, 13-3/8″ & 13-5/8″

Shear Blind Rams (SBR)
We keep a large stock of 180F & 350F (H2S) Elastomers to dress all Ram Blocks we can supply, Elastomers are stored in our temperature controlled storage. All our Ram Blocks come with Cameron OEM Certification.

Description



H2S Shearing Blind Ram

CAMTOP provides the most comprehensive range of BOP rams and ram packers in the industry for managing well control events, including rams for shearing high-strength casing and drill collars, variable bore sealing, and high-temperature applications. Our ram packers use proprietary elastomer technologies that help to improve performance, extend service life, reduce downtime, and lower operating costs.

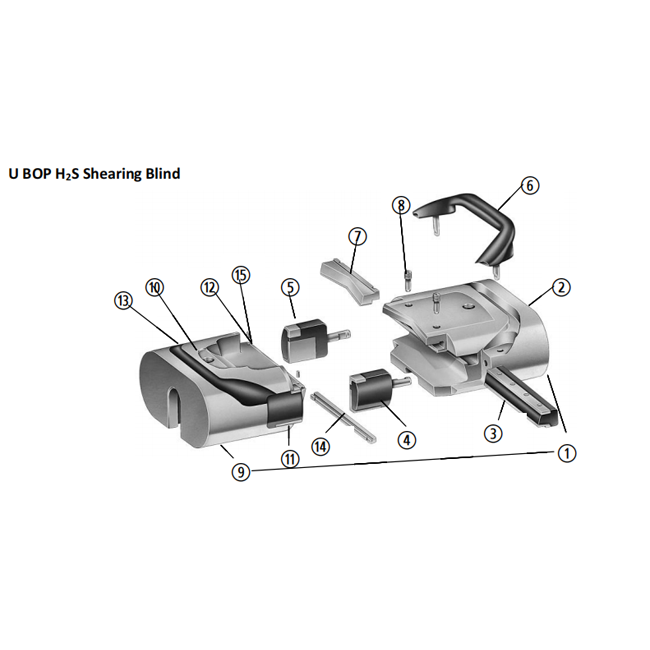

U and UM BOP H2S Shearing Blind Ram Part Numbers
BOP Bore Size and Working Pressure (psi) 1
Upper Ram Subassy
2
Ram
3
Blade Packer
4
Packer
5
Packer
6
Top Seal
7
Blade Insert
8
Set Screw (QTY 2 Req’d)
11″ 5,000 & 10,000 645011-03-00-01 645009-01-00-01 046910-04-00-01 046751-04-00-01 046752-04-00-01 644217-01-00-01 645010-01-00-01 644582-01
13-5/8″ 5,000 & 644781-01-00-01 644780-01-00-01 644435-01-00-01 046751-01-00-02 046752-01-00-02 644223-01-00-01 644581-01-00-01 644582-01
10,000
13-5/8″ 15,000 2163019-01-01 2163017-01-01 644435-01-00-01 046751-05-00-01 046752-05-00-01 644226-01-00-01 2164281-01 644582-01
18-3/4″ 10,000 ** 2245297-01 2245298-01 2010192-01 2010191-01 2010190-01 2010193-01 2010182-01 644524-01
21-1/4″ 10,000 ** 2057307-01 2057302-01 046910-05-00-01 046751-06-00-01 046752-06-00-01 645478-01-00-01 2057304-01 644349-01
U and UM BOP H2S Shearing Blind Ram Part Numbers
BOP Bore Size and Working Pressure (psi) 9
Lower Ram
Subassy
10
Ram
11
Packer
12
Packer
13
Top Seal
14
Blade Insert
15
Pin(QTY 2 req’d)
/
11″ 5,000 & 10,000 645011-04-00-01 645009-02-00-01 046751-04-00-01 046752-04-00-01 644217-01-00-01 645010-02-00-01 200231
13-5/8″ 5,000 & 10,000 644781-02-00-01 644780-02-00-01 046751-01-00-02 046752-01-00-02 644223-01-00-01 644581-02-00-01 200231
13-5/8″ 15,000 2163019-02-01 2163018-01-01 046751-05-00-01 046752-05-00-01 644226-01-00-01 644581-02-00-01 200231
18-3/4″ 10,000 ** 2245295-01 2245296-01 2010191-01 2010190-01 2010193-01 2010183-01 200231
21-1/4″ 10,000 ** 2057306-01 2057303-01 046751-06-00-01 046752-06-00-01 645478-01-00-01 2057305-01 200231
