Description

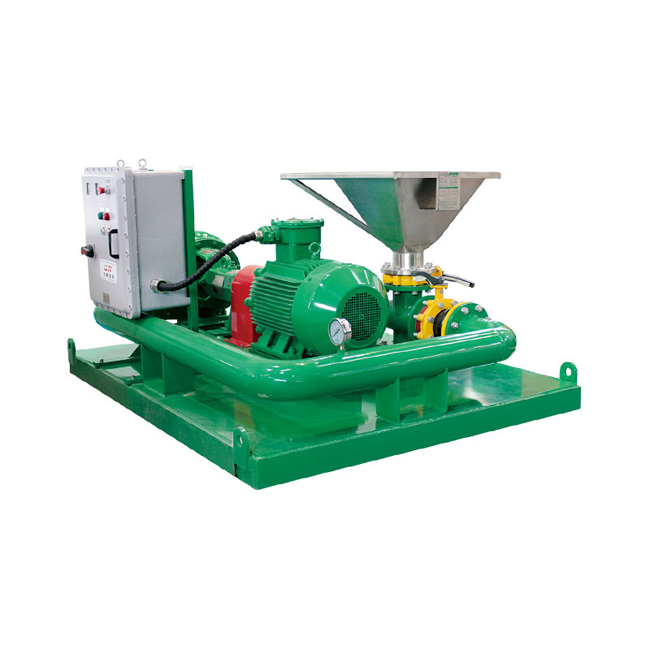

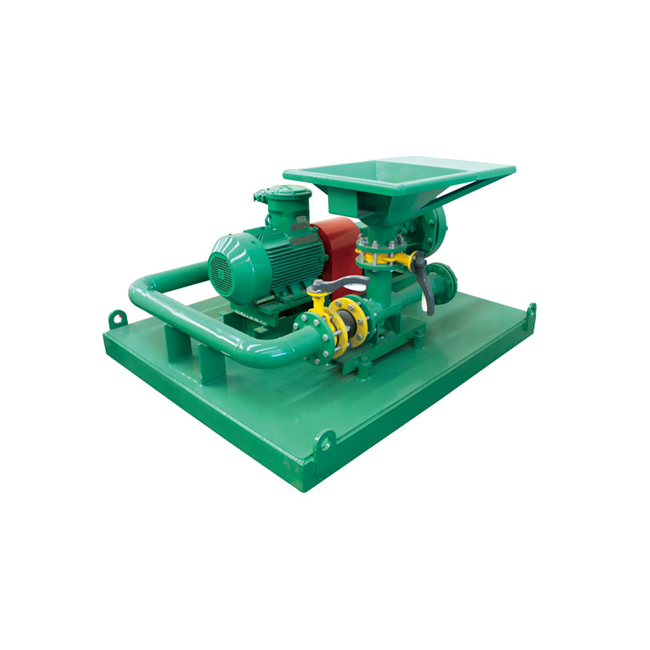

Mud Mixing Hopper Unit

CAMTOP series Jet Mud mixer aslo called mud mixing hopper unit is special equipment to prepare and increase the drilling fluids weight by adding and mixing bentonite, change the fluid density, change the mud density, viscosity, and dehydration. The effect is more prominent matching with Shear Pump. CAMTOP jet mud mixer is a unit used together with the solids control system for petroleum drilling and horizontal directional drilling(HDD).

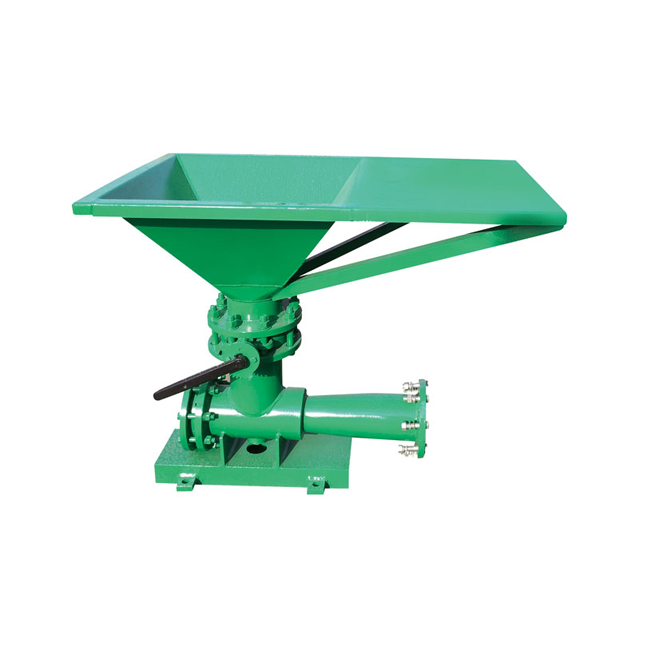

The unit includes one sand pump, one venturi mud mixing hopper and one jet mud mixing hopper and pump that are installed in a base with pipe valves. It is safe and stable and can be moved conveniently. At the same time,we can make Twin-Hopper Unit with two pumps according to the user requirements.It is designed by GN solids control bentonite mud mixer,drilling mud tank jet mixer.

Model Capacity(m3/h) Pressure (Mpa) Motor (Kw) Inlet (Inch) Outlet (Inch) Weight (Kg) Dimension L×W×H(mm)
GNSLH-750B 320(1408GPM) 0.25~0.4 75(100HP) 8 6 1785 2200×1840×1150
GNSLH-550B 272(1200GPM) 55(75HP) 8 6 1675 2200×1840×1100
GNSLH-450B 200(880GPM) 45(60HP) 6 6 1475 2200×1840×1135
GNSLH-370B 150(660GPM) 37(50HP) 6 6 1460 2200×1840×1135
GNSLH-300B 120(528GPM) 30(40HP) 5 6 1380 2200×1840×1100
GNSLH-220B 90(400GPM) 22(30HP) 5 4 1167 1850×1540×1000
GNSLH-185B 65(286GPM) 18.5(25HP) 4 4 1147 1850×1540×1030
GNSLH-150B 55(242GPM) 15(20HP) 4 4 970
GNSLH-110B 45(200GPM) 11(15HP) 4 4 950
Remarks Electric control cabinet should be quoted separately, weight & dimension don’t included control cabinet
The above specification and parameters for reference only.
