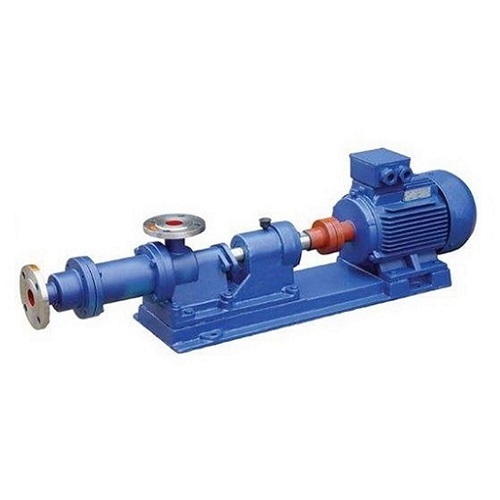

CAMTOP G Series Single Screw Progressive Cavity Pump A high-performance positive displacement pump engineered for handling high-viscosity, abrasive, and shear-sensitive fluids.
• Key Specs: Flow rates up to 150 m³/h, pressures up to 2.4 MPa, and temperature resistance to 150°C.
• Performance: Features excellent self-priming ability and pulse-free, steady flow.
• Durability: Built with high-precision rotors and customizable stators (NBR/EPDM/Viton) for extended service life.
• Applications: Ideal for oil & gas sludge, wastewater treatment, chemical dosing, and food-grade fluid transfer.
G Series Single Screw Progressive Cavity Pump | CAMTOP Mono Pump Manufacturer
Description

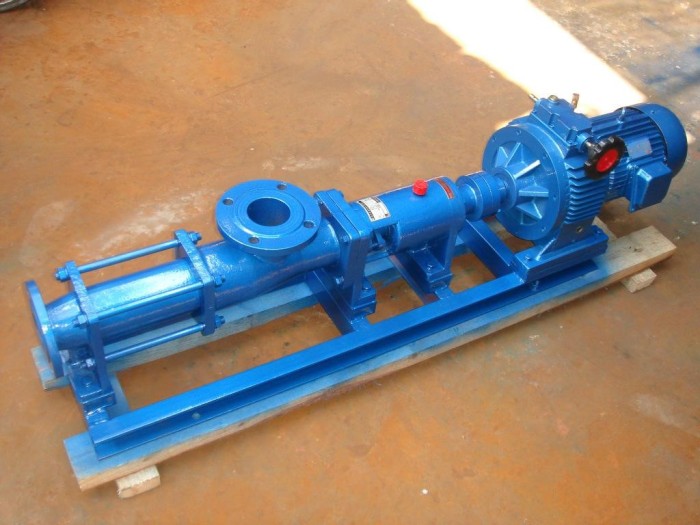

CAMTOP G Series Single Screw Progressive Cavity Pumps (Mono Screw Pumps)
CAMTOP is a leading professional manufacturer of high-performance progressive cavity pumps (PC Pumps), also known as Mono screw pumps or single screw pumps. Our G series pumps are designed for handling complex fluids that are highly viscous, shear-sensitive, or contain abrasive solids.
Technical Specifications
| Feature | Specification Details |
|---|---|
| Series | G Series Positive Displacement Pump |
| Flow Rate (Capacity) | 0.8 m³/h – 150 m³/h (Customizable) |
| Max Pressure | Up to 2.4 MPa (24 Bar) |
| Viscosity Range | 1 – 1,000,000 cst |
| Material Options | Cast Iron / Stainless Steel (SS304, SS316, SS316L) |
| Stator Material | NBR, EPDM, FPM (Viton), Food-grade Rubber |
| Temperature Range | -20°C to 150°C |
Why Choose CAMTOP Progressive Cavity Pumps?
- Steady & Pulse-free Flow: The axial movement of the fluid ensures no turbulence or foaming, making it ideal for dosing and metering.
- High Self-priming Ability: Excellent suction lift capabilities, even when handling air-liquid mixtures.
- Low Shear Pumping: Protects shear-sensitive media (like polymers or food products) from damage during transport.
- Versatile Media Handling: Efficiently moves sludge, thick slurries, chemical additives, and high-solid content fluids.
- Durability by CAMTOP: Features high-precision rotors and wear-resistant stators for extended service life and reduced maintenance.
Typical Applications
CAMTOP Mono pumps are widely utilized across various global industries:
- Oil & Gas: Oily sludge, drilling mud, and crude oil transfer.
- Waste Water Treatment: Dewatered sludge, polymer dosing, and flocculant feeding.
- Food & Beverage: Fruit pulp, honey, chocolate, yogurt, and beverages (Food-grade SS available).
- Chemical Industry: Acids, alkalis, resins, paints, and high-viscosity adhesives.
- Mining & Construction: Grout, mortar, and mineral slurries.
Frequently Asked Questions (FAQ)
Q: Can CAMTOP single screw pumps handle solids?A: Yes, our G series design allows for the passage of suspended solids and fibrous materials without clogging, thanks to the elastic stator technology.
Q: Are CAMTOP pumps reversible?A: Absolutely. The progressive cavity principle allows for reversible flow by simply changing the direction of the motor rotation.
Looking for a reliable Mono Pump Manufacturer? Contact CAMTOP today for a custom quotation based on your specific medium, viscosity, and pressure requirements.
Website: [WWW.CAMTOP-OILFIELDTOOLS.COM]
Keywords: Single Screw Pump, PC Pump, Sludge Pump, High Viscosity Pump, CAMTOP Fluid Solutions.
