The Figure 1002 Butt Weld Hammer Union is a WECO TYPE high-pressure hammer union available in Schedule XXH and Schedule 160 configurations for oilfield drilling, fracturing, cementing, and flowline applications. Featuring rugged forged steel construction, reliable pressure-tight sealing, and fast make-up operation, this hammer union is designed for severe oilfield fluid transfer and pressure control environments.
# PRODUCT TITLE **Figure 1002 Butt Weld Hammer Union | WECO TYPE XXH & Schedule 160 High Pressure Flowline Union**
Description
```html
```
Figure 1002 Butt Weld Hammer Union (Schedule XXH / Schedule 160)
WECO TYPE High Pressure Hammer Union for Oilfield Flowline Applications
The Figure 1002 Butt Weld Hammer Union is a WECO TYPE high-pressure hammer union engineered for oilfield drilling, fracturing, cementing, pressure pumping, and flowline applications.
Available in both Schedule XXH and Schedule 160 configurations, this hammer union provides dependable pressure-tight sealing, rugged forged steel construction, and reliable performance in severe oilfield environments.
Designed for high-pressure fluid transfer systems, the Figure 1002 hammer union is widely used in upstream oil & gas operations where secure and durable flowline connections are essential.
Product Features
- WECO TYPE Figure 1002 design
- Available in Schedule XXH and Schedule 160
- High-pressure flowline connection
- Reliable pressure-tight sealing
- Rugged forged steel construction
- Fast make-up and break-out
- Designed for severe oilfield service
- Butt weld connection design
- Available in multiple sizes
- Suitable for drilling and pressure control systems
Pressure Ratings
| Configuration | Cold Working Pressure | Test Pressure |
|---|---|---|
| Schedule XXH | 7,500 PSI | 11,250 PSI |
| Schedule 160 | 5,000 PSI | 7,500 PSI |

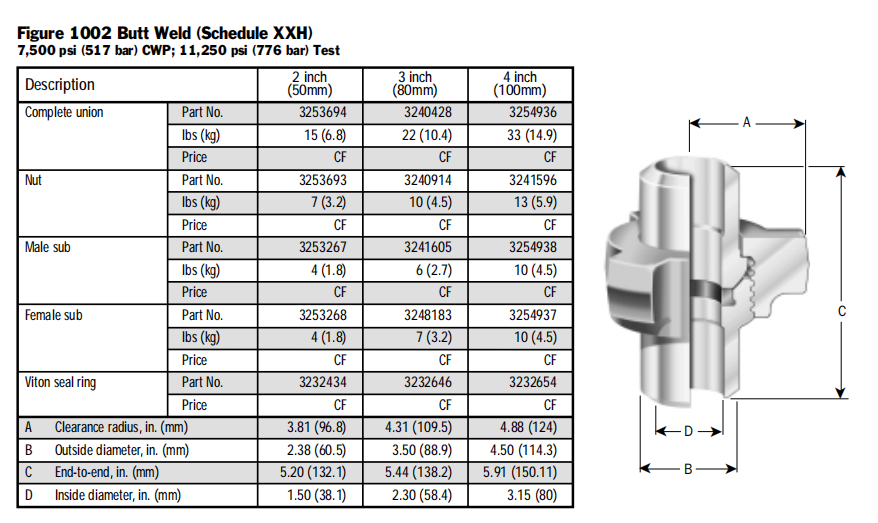

Schedule XXH Technical Data
| Description | Item | 2 in. | 3 in. | 4 in. |
|---|---|---|---|---|
| Complete Union | Part No. | 3253694 | 3240428 | 3254936 |
| Weight | 15 lb (6.8 kg) | 22 lb (10.4 kg) | 33 lb (14.9 kg) | |
| Nut | Part No. | 3253693 | 3240914 | 3241596 |
| Weight | 7 lb (3.2 kg) | 10 lb (4.5 kg) | 13 lb (5.9 kg) | |
| Male Sub | Part No. | 3253267 | 3241605 | 3254938 |
| Weight | 4 lb (1.8 kg) | 6 lb (2.7 kg) | 10 lb (4.5 kg) |

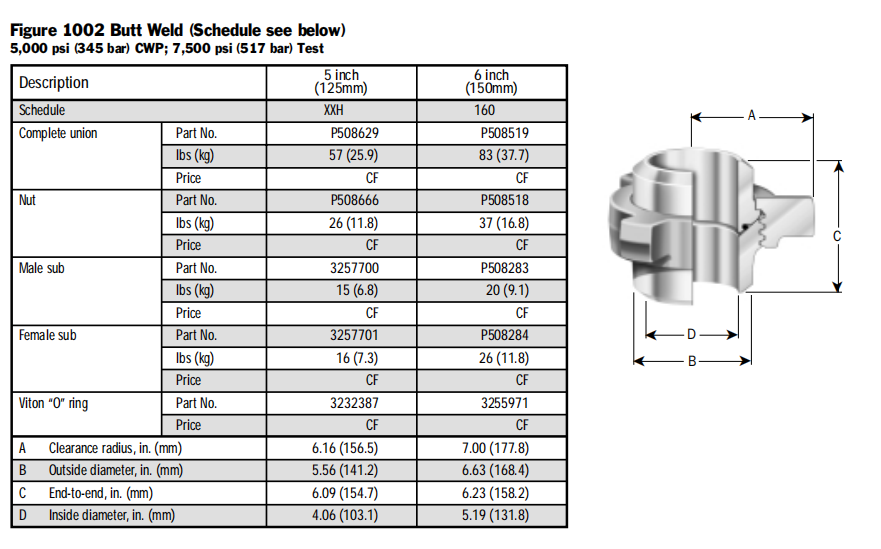

Schedule 160 Technical Data
| Description | Item | 5 in. | 6 in. |
|---|---|---|---|
| Complete Union | Part No. | P508629 | P508519 |
| Weight | 57 lb (25.9 kg) | 83 lb (37.7 kg) | |
| Nut | Part No. | P508666 | P508518 |
| Weight | 26 lb (11.8 kg) | 37 lb (16.8 kg) | |
| Male Sub | Part No. | 3257700 | P508283 |
| Weight | 15 lb (6.8 kg) | 20 lb (9.1 kg) |
Applications
- Oil & Gas Drilling
- Fracturing Operations
- Cementing Units
- Flowline Systems
- Pressure Pumping Equipment
- Choke & Kill Manifolds
- Well Testing Operations
- High-Pressure Fluid Transfer
Why Choose CAMTOP?
- OEM-compatible products
- Stable product quality
- Fast worldwide delivery
- Competitive pricing
- Professional technical support
- Oilfield application expertise
