Elevator Link


Elevator links are designed to hang elevators from Top Drive System or Hooks in drilling operation, it is also called elevator bails, drilling links or casing links. Elevator links usually work in pairs. The elevator link upper eye is used for the hook link ear, and the elevator link lower eye is used for the elevator. Links are forged with high-quality alloy steel. Elevator links can be divided into two types: weldless links and perfection links, they are designed and manufactured according to 8A/8C specifications for drilling and production hoisting equipment.

  • 8A/8C certified product.
  • Load capacity 75 up to 450 tons.
  • Maximum length 1.5M to 3.6M.
  • Customized links available according to customer need.

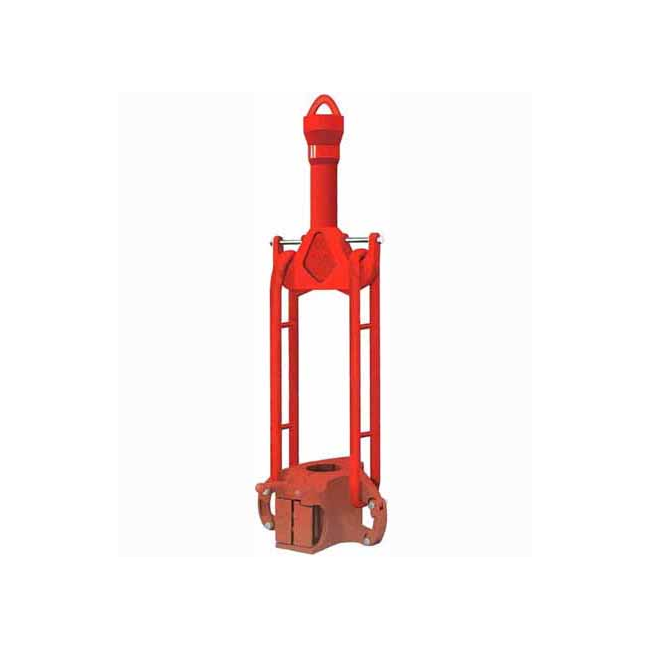

  • Drill Collar Raiser also provided
Model Spec Rated Capacity Length

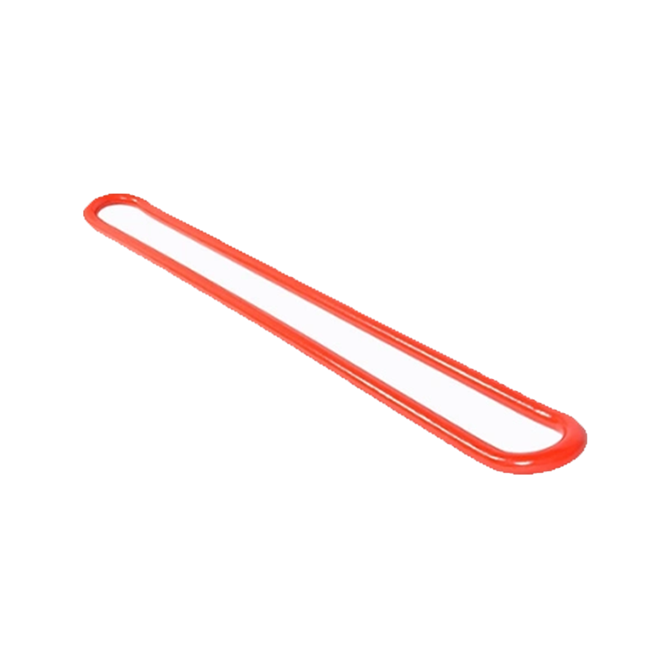

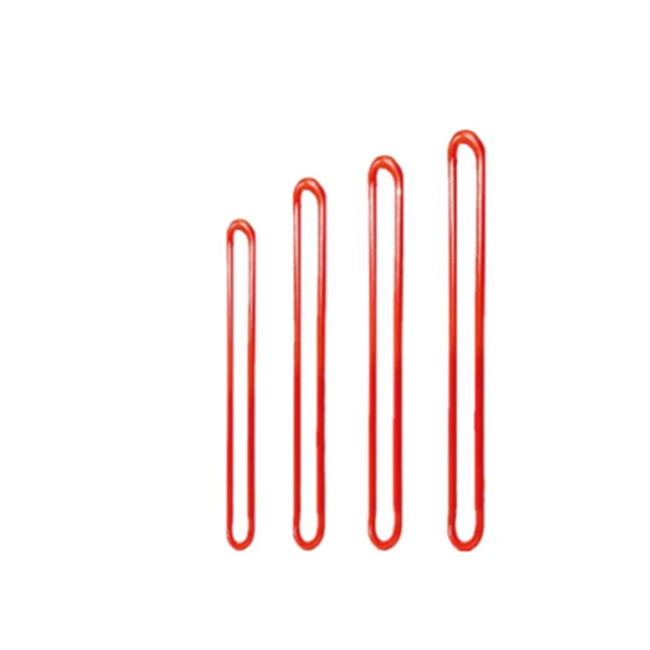

Weldless Link DH150 150 short ton 1800 mm
DH250 250 short ton 2700 mm
DH350 350 short ton 3300 mm
DH500 500 short ton 3600 mm

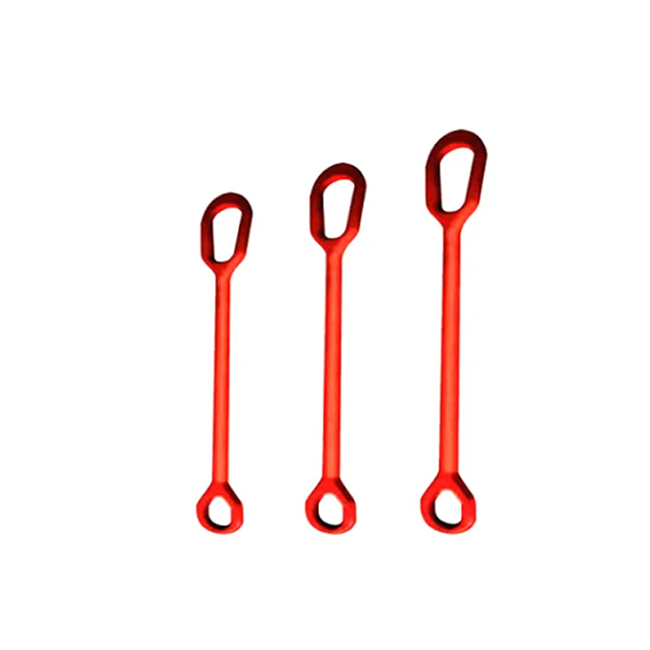

Perfection Link SH75 75 short ton 1500 mm
SH100 100 short ton 1500 mm
SH150 150 short ton 1700 mm
