The DEMCO TYPE DM Gate Valve 4″ 7500 PSI Full Port is a heavy-duty API 6A gate valve designed for oilfield drilling, fracturing, and pressure control applications. Featuring a full-port bore design, reliable bi-directional sealing, rugged forged construction, and HNBR or Viton sealing options, this valve delivers dependable high-pressure performance and long service life in demanding oil & gas operating environments.
DEMCO TYPE DM Gate Valve 4″ 7500 PSI Full Port | API 6A Oilfield Gate Valve
Description
DEMCO TYPE DM Gate Valve 4" 7500 PSI Full Port
API 6A Oilfield Gate Valve for Drilling, Fracturing & Pressure Control Applications
Product Overview
The DEMCO TYPE DM Gate Valve 4" 7500 PSI Full Port is a heavy-duty oilfield gate valve designed for reliable pressure control in drilling, fracturing, cementing, flowback, and production operations.
Featuring a 4-inch full port design and 7,500 PSI working pressure, this valve provides excellent flow performance, reliable sealing, and long service life in demanding oilfield environments.
Key Features
- API 6A compliant design
- 4 in. (100 mm) full port bore
- 7,500 PSI working pressure
- Bi-directional sealing performance
- Low operating torque
- Replaceable seats and seals
- HNBR / Viton sealing options
- Suitable for harsh oilfield service conditions
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | DEMCO TYPE DM Gate Valve |
| Valve Size | 4 in. (100 mm) Full Port |
| Working Pressure | 7,500 PSI |
| Valve Type | Full Port Gate Valve |
| Design Standard | API 6A |
| End Connection | Flanged or Weld End |
| Valve Seat ID | 4.00 in. (102 mm) |
| API Ring Number | BX-155 |
| Number of Handle Turns | 21.36 |

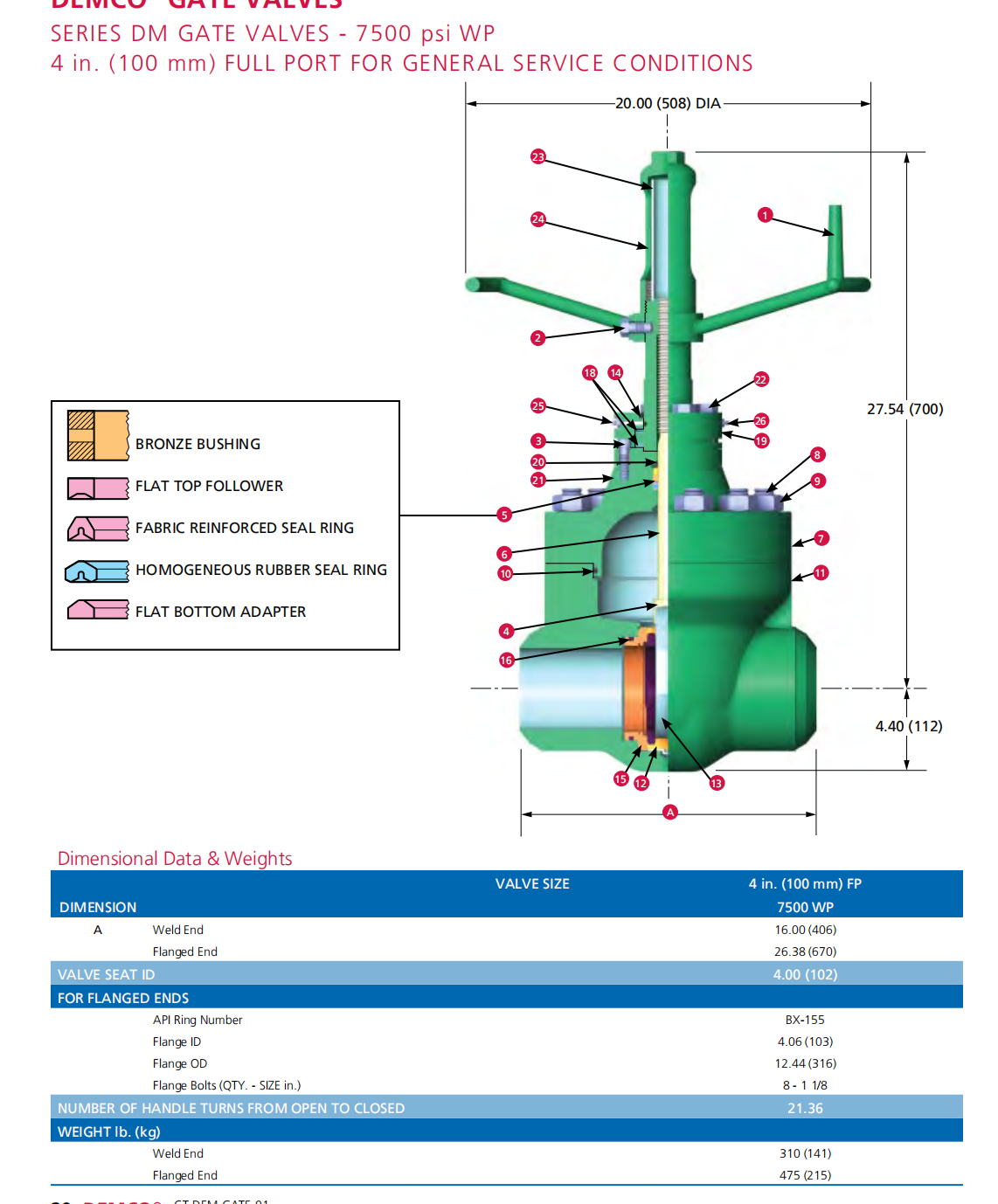

Dimensional Data & Weights
| Dimension | 4 in. (100 mm) FP 7500 WP |
|---|---|
| Weld End Length | 16.00 in. (406 mm) |
| Flanged End Length | 26.38 in. (670 mm) |
| Valve Seat ID | 4.00 in. (102 mm) |
| API Ring Number | BX-155 |
| Flange ID | 4.06 in. (103 mm) |
| Flange OD | 12.44 in. (316 mm) |
| Flange Bolts | 8 × 1-1/8 in. |
| Weld End Weight | 310 lb (141 kg) |
| Flanged End Weight | 475 lb (215 kg) |
Applications
- Wellhead systems
- Choke & kill manifolds
- Fracturing equipment
- Cementing units
- Flowback systems
- Production manifolds
- Onshore and offshore drilling operations
Why Choose CAMTOP?
CAMTOP supplies high-quality oilfield valves and pressure control equipment with reliable performance, OEM-compatible solutions, fast delivery, and professional technical support.
