DM Gate Valve 2″ 7500 PSI Full Port is a heavy-duty API 6A gate valve engineered for high-pressure oilfield applications. Designed with a full-port bore for minimal pressure drop and reliable flow control, this valve provides dependable sealing performance for drilling, fracturing, cementing, and production operations. Available with HNBR and Viton sealing options for demanding service environments.
DM Gate Valve 2″ 7500 PSI Full Port | API 6A Oilfield Gate Valve
Description

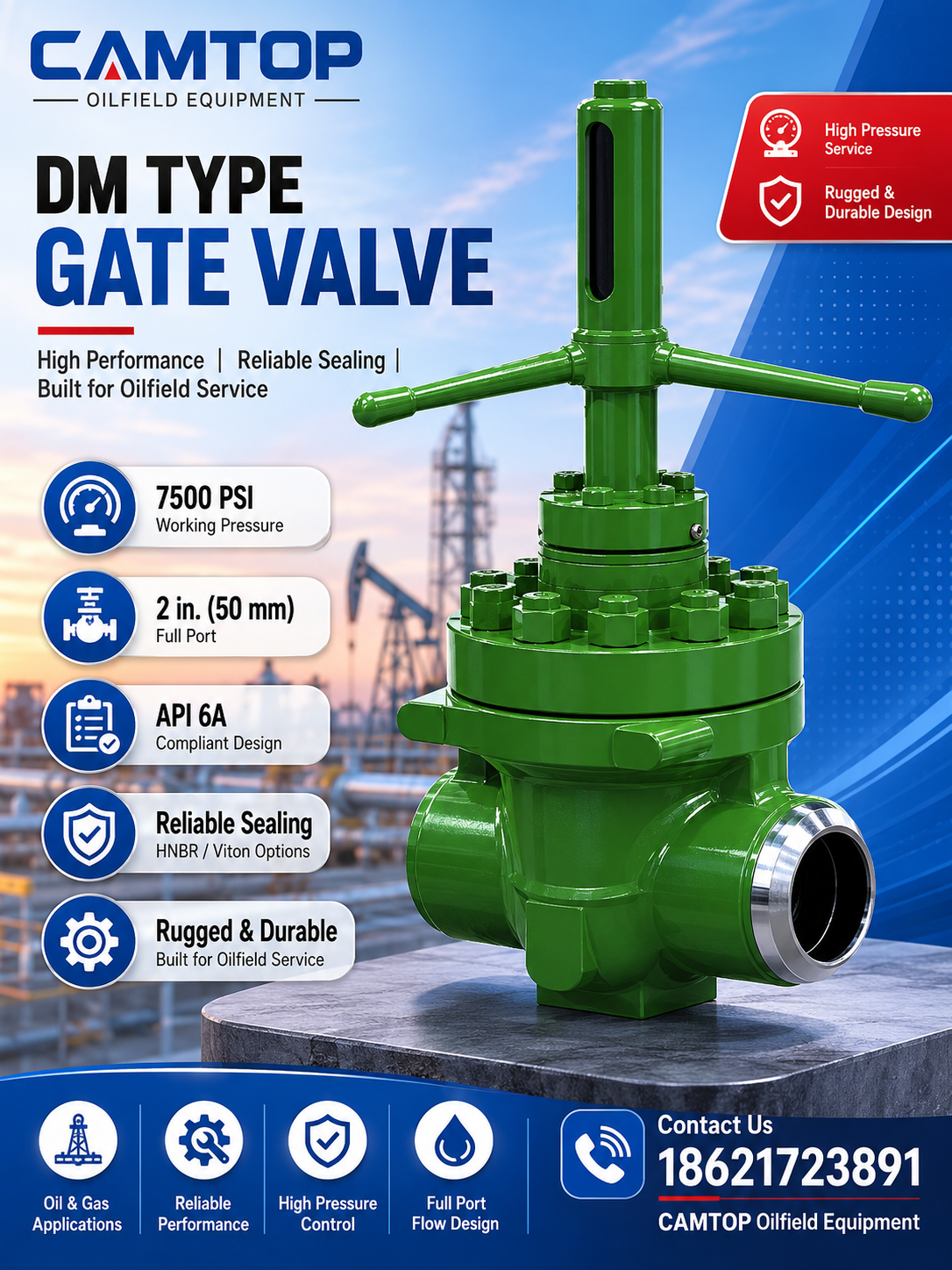

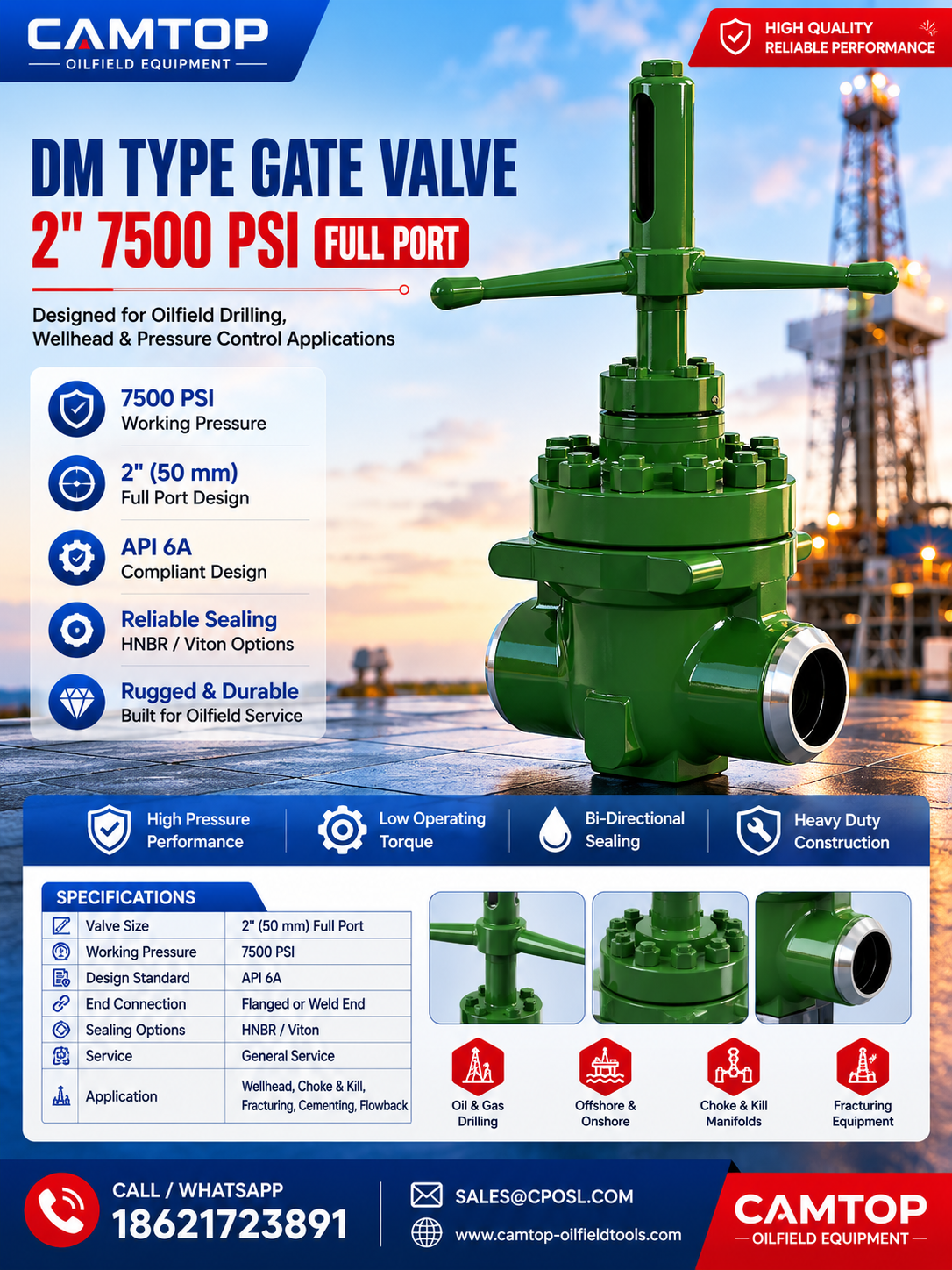

DM Type Gate Valve 2" 7500 PSI Full Port
High-performance 2" 7500 PSI full port DM type gate valve designed for oilfield drilling, wellhead, choke & kill manifold, fracturing, cementing, and pressure control applications.
Key Specifications
| Item | Specification |
|---|---|
| Product Name | DM Type Gate Valve |
| Valve Size | 2 in. (50 mm) Full Port |
| Working Pressure | 7,500 PSI |
| Design Standard | API 6A |
| End Connection | Flanged or Weld End |
| Valve Seat ID | 2.00 in. (51 mm) |
| API Ring Number | BX-152 |
| Number of Handle Turns | 8.60 |
| Service Condition | General Service |
Dimensional Data & Weights
| Dimension | 2 in. (50 mm) FP 7500 WP |
|---|---|
| Weld End Length | 9.00 in. (229 mm) |
| Flanged End API Length | 20.50 in. (521 mm) |
| Valve Seat ID | 2.00 in. (51 mm) |
| API Ring Number | BX-152 |
| Flange ID | 2.06 in. (52 mm) |
| Flange OD | 7.88 in. (200 mm) |
| Flange Bolts | 8 × 3/4 in. |
| Handle Turns from Open to Closed | 8.60 |
| Weight - Weld End | 76 lb. (34 kg) |
| Weight - Flanged End | 124 lb. (56 kg) |
Material & Sealing Options
- HNBR sealing option for high-temperature and severe oilfield service
- Viton sealing option for chemical resistance and high-performance sealing
- Rugged body construction for demanding pressure control applications
- Full port design for efficient flow and reduced pressure drop
Applications
- Wellhead systems
- Choke and kill manifolds
- Fracturing equipment
- Cementing units
- Flowback systems
- Production manifolds
- Offshore and onshore drilling operations
