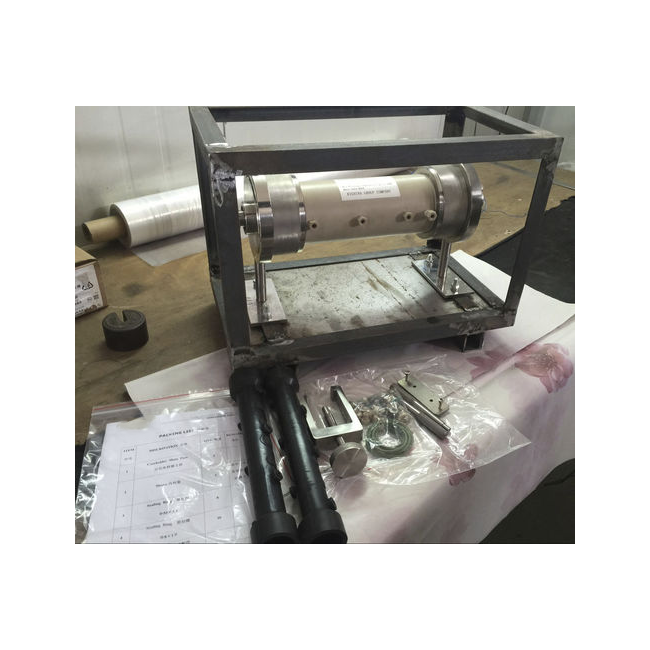

Core Holder PEEK Model DCH-02

Core Holder PEEK Model DCH-02

(1)Working Pressure: 5,000 psi

(2) Working Temperature: Ambient to 600 ℉

(3) Core diameter: Customer specified

(4)Core length: Customer specified

Description

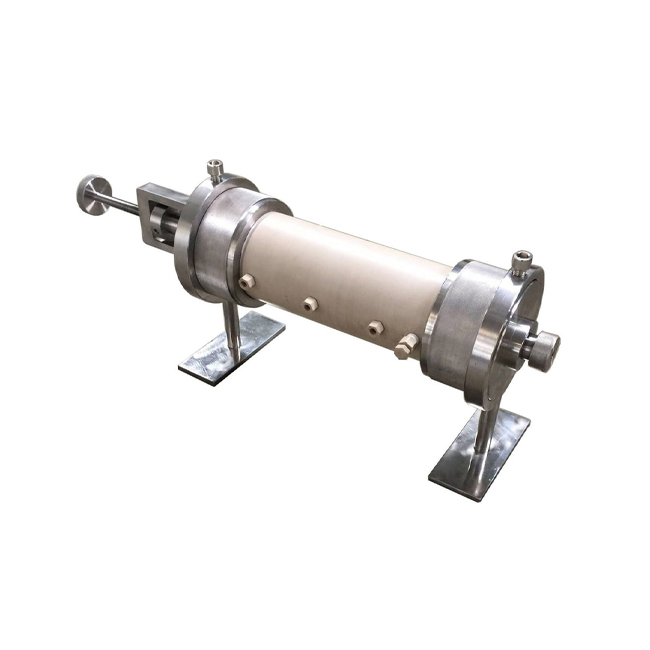

Core Holder PEEK Model DCH-02



Our patented DCH Series core holders are core holders with pressure ports or taps molded into the confining pressure sleeve. These pressure ports allow the researcher to measure the pressure drop along the length of the core sample during the flooding process. These core holders are routinely used for gas and liquid permeability, relative permeability, formation damage studies, fluid reactions with the reservoir rock and other core flooding experiments.

These core holders offer several unique features. The pressure ports are molded into the sleeve for a solid bond. The pressure ports can be located at discrete locations along the core to meet the client’s requirements. Under the rate working temperature and pressure range, good sealing properties of the holder.

Sleeves can be fabricated on a custom basis for short (several inches) or long applications (several feet or meters). The pressure ports are designed to come out through the body of the core holder through one end or out through the core holder body. We have also supplied pressure ports that are connected to 1/16” or 1/8” tubing and come out through the ends of the core holder. These core holders can be supplied with any of the loading types that Core Lab offers.

The loading types include Hassler, Biaxial, or Triaxial. The standard features of each design type are incorporated into the pressure-ported core holder.

Features:

(1)Working Pressure: 15,000 psi

(2) Working Temperature: Ambient to 600 ℉

(3) Core diameter: Customer specified

(4)Core length: Customer specified

Common Dimensions: 25.4mm (1”), 38mm (1.5”) , 50mm (2”) , 80mm(3”) and 133mm (5.25”) in diameter and 25.4mm (1”) to 500mm(20”) in length.

(5)Materials: stainless steel, PEEK (The experiment will be imaged with powerful X-rays)

(6) Sleeve material: Viton

Core Holder Specification
Part No. Model Description Remark

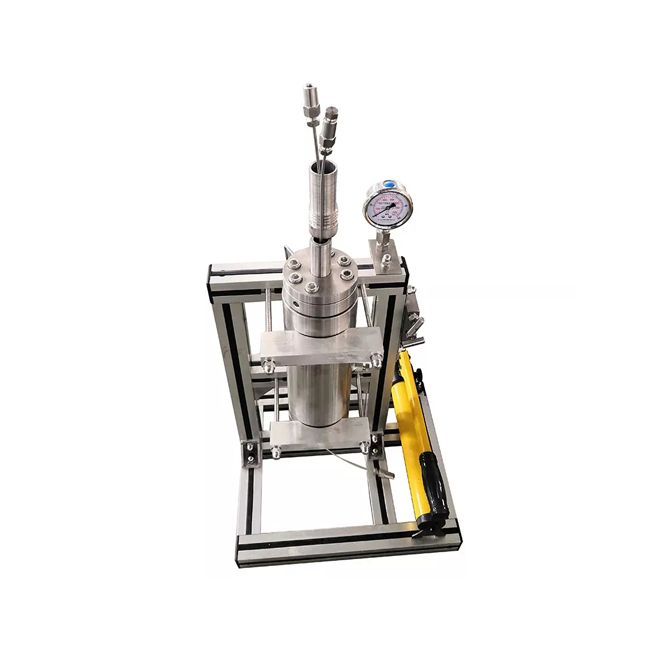

CH-01 DCH-01 Wetted parts Material: Stainless Steel
Sleeve material:viton
Working Pressure: 10,000 psi (70Mpa) or 15,000 psi (100Mpa)
Working Temperature: Ambient to 600 ℉(320℃)
Fitting: NPT
Pressure taps : As request
Core diameter: Customer specified
Core length: Customer specified
Common Dimensions: 25.4mm (1”), 38mm (1.5”) , 50mm (2”) , 80mm(3”) and 133mm (5.25”) in diameter and 25.4mm (1”) to 500mm(20”) in length.
Inlet port: As request
Outlet port: As request
Customer specified
CH-02 DCH-02 Wetted parts Material: PEEK (The experiment will be imaged with powerful X-rays)
Sleeve material:viton
Working Pressure: 4,300 psi
Working Temperature: Ambient to 500 ℉(260℃)
Core diameter: Customer specified
Core length: Customer specified
Common Dimensions: 25.4mm (1”), 38mm (1.5”) , 50mm (2”) , 80mm(3”) and 133mm (5.25”) in diameter and 25.4mm (1”) to 500mm(20”) in length.
Inlet port: As request
Outlet port: As request
CHD-03 DCH-03 Wetted parts Material: titanium or hastelloy
Sleeve material:viton
Working Pressure: 10,000 psi (70Mpa) 15,000 psi (100Mpa)
Working Temperature: Ambient to 600 ℉(320℃)
Core diameter: Customer specified
Core length: Customer specified
Common Dimensions: 25.4mm (1”), 38mm (1.5”) , 50mm (2”) , 80mm(3”) and 133mm (5.25”) in diameter and 25.4mm (1”) to 500mm(20”) in length.
Inlet port: As request
Outlet port: As request (1”) to 500mm(20”) in length.
