CAMTOP Wireline BOP Configuration Control Valve 钢丝作业防喷器
Alloy Steel | 2.5″–6.375″ Bore | 3,000–15,000 PSI | Single / Twin / Triple / Quad RAM | API Compliant
Product Overview
CAMTOP Wireline BOP Configuration Control Valve is a wellhead pressure control device installed between the lubricator and the Christmas tree or wellhead. It is one of the critical well-control safety devices used to seal, control, and monitor oil and gas wells during wireline operations, preventing blowouts or uncontrolled release of well fluids.
The valve body is manufactured from high-strength alloy steel and incorporates RAM bodies with internal seals that close around the wire or cable. Once the RAMs are closed, well pressure is contained below the valve while pressure above can be safely bled off. Equalizing valves are fitted to the main body to allow pressure equalization between the lubricator and the well before resuming normal operations.
Bore Range: 2.5″–6.375″ | Working Pressure: 3,000–15,000 psi | Material: Alloy Steel | Working Medium: Oil, natural gas, mud, and H2S/CO2-containing fluids
Product Image

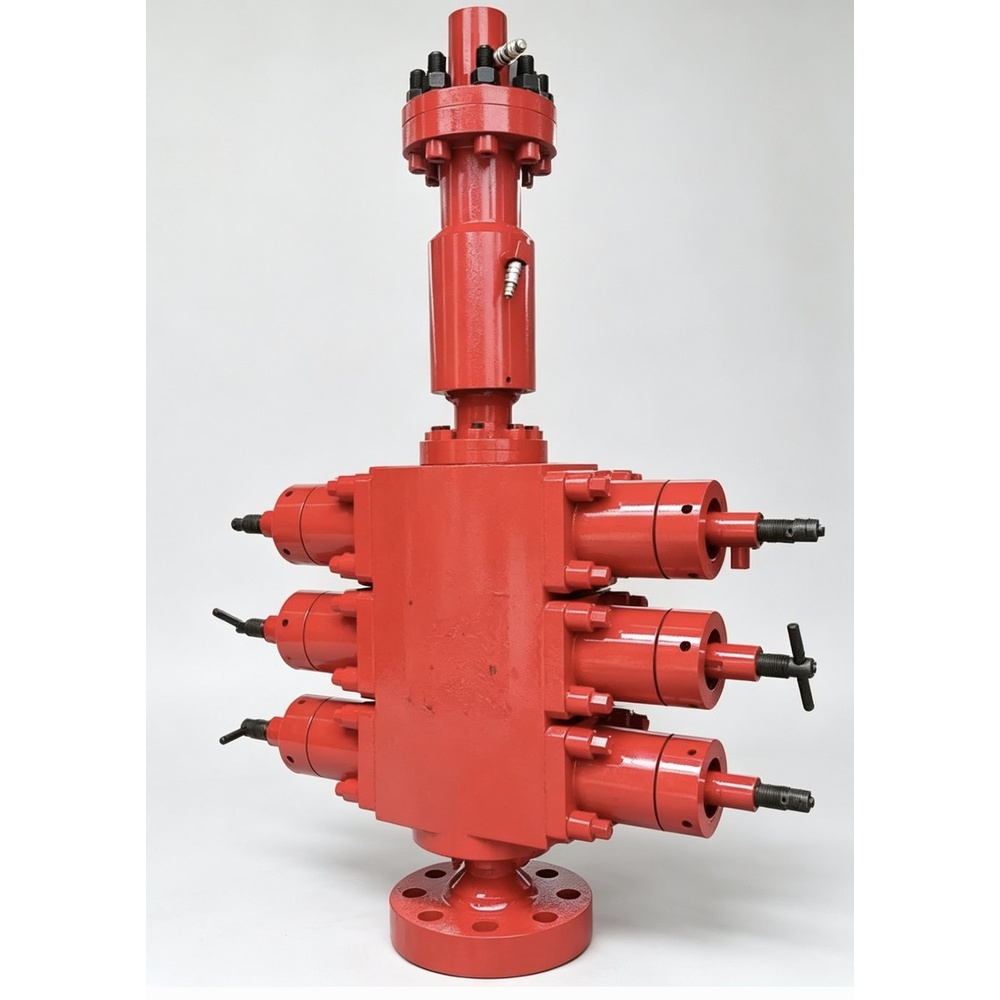

CAMTOP Wireline BOP Configuration Control Valve — High-strength alloy steel construction for wireline pressure control
Key Features
- Wellhead Pressure Control: Installed between lubricator and Christmas tree to seal, control, and monitor oil and gas wells during wireline operations
- High-Strength Alloy Steel Body: Robust construction for reliable pressure containment in high-pressure wireline service
- Wide Pressure Range: Available with working pressures from 3,000 psi up to 15,000 psi to suit various wellhead conditions
- Multiple RAM Configurations: Single, twin, triple, and quad RAM arrangements for different redundancy and sealing requirements
- Internal RAM Seals: RAM bodies with inner seals close around the wire or cable to contain well pressure below the valve
- Equalizing Valves: Fitted to the main body to equalize pressure between lubricator and well before resuming operations
- H2S/CO2 Service: Suitable for oil, natural gas, mud, and gas containing H2S and CO2
- API Material Classes: Available in AA, BB, CC, DD, EE, FF, HH material classes per API requirements
- Performance Levels: PR1 and PR2 performance requirement levels available
- Specification Levels: SPL1 through PSL4 specification levels for quality and traceability
- Temperature Rating: Class LU rated -46°C to +121°C (-50°F to +250°F) for low-temperature service
Technical Specifications
| Item | Specification |
|---|---|
| Product | CAMTOP Wireline BOP Configuration Control Valve |
| Material | Alloy Steel (High-Strength Forged or Cast) |
| Nominal Bore | 2.5″ (2-1/2″) – 6.375″ (6-3/8″) |
| Working Pressure | 3,000 psi – 15,000 psi |
| Working Temperature | Class LU: -46°C to +121°C (-50°F to +250°F) |
| Working Medium | Oil, natural gas, mud, and gas containing H2S / CO2 |
| Material Class | AA, BB, CC, DD, EE, FF, HH |
| Performance Requirement | PR1, PR2 |
| Specification Level | SPL1, SPL2, PSL3, PSL4 |
| RAM Configuration | Single, Twin, Triple, Quad |
| Service Type | Standard and Sour Service (H2S / CO2) |
| Application | Oil and gas well wireline operation |
| Design Standard | API 6A / API 16A as applicable |
Product Specifications — Bore / Pressure / Configuration
| Configuration | I.D. (inch) | W.P. (psi) |
|---|---|---|
| Single | 2.50 | 5,000 |
| Single | 2.50 | 10,000 |
| Single | 2.50 | 15,000 |
| Twin | 2.50 | 5,000 |
| Twin | 2.50 | 10,000 |
| Triple | 2.50 | 5,000 |
| Triple | 2.50 | 10,000 |
| Triple | 2.50 | 15,000 |
| Quad | 2.50 | 5,000 |
| Quad | 2.50 | 10,000 |
| Single | 3.00 | 5,000 |
| Single | 3.00 | 10,000 |
| Twin | 3.00 | 5,000 |
| Twin | 3.00 | 10,000 |
| Triple | 3.00 | 5,000 |
| Triple | 3.00 | 10,000 |
| Quad | 3.00 | 5,000 |
| Quad | 3.00 | 10,000 |
| Single | 4.00 | 5,000 |
| Single | 4.00 | 10,000 |
Note: Custom sizes, pressure ratings, and multi-bore configurations are available on request. Contact CAMTOP for certified drawings and specific model selection.
Working Principle & Main Components
| Component | Function |
|---|---|
| Main Body | High-pressure alloy steel valve body that houses RAM assemblies and forms the primary pressure barrier |
| RAM Assembly | Hydraulically or manually operated rams with inner seals that close around the wireline or cable to seal the wellbore |
| RAM Seals | Elastomer or metal-to-metal sealing elements designed to contain well pressure while the wireline is still in place |
| Equalizing Valve | Fitted to the main body to equalize pressure between the lubricator and the well before resuming wireline operations |
| Top / Bottom Connections | Flanged or studded connections for mounting between the lubricator and the wellhead / Christmas tree |
| Actuator / Handwheel | Hydraulic or manual operating mechanism for opening and closing the RAMs |
Applications
- Wireline logging, perforating, and intervention operations
- Wellhead pressure control during slickline and electric line deployment
- Coiled tubing and wireline unit pressure isolation
- Workover and completion operations requiring wireline BOP redundancy
- Sour service (H2S) wells with appropriate material class and hardness control
- High-pressure gas wells and deep well wireline operations
- Production and exploration wells requiring emergency wireline sealing
Quality Assurance
- Material certification: EN 10204 3.1 / 3.2 MTC with chemical and mechanical properties
- Non-destructive examination (NDE): UT, MT, and PT as per specification level
- Hydrostatic and pneumatic pressure testing per API standards
- Dimensional inspection and functional testing before shipment
- Traceability records for all pressure-containing parts and critical components
- Complete documentation package: certificates, test reports, and operation manual
Why Choose CAMTOP?
- API-compliant design and manufacturing with full material traceability
- Broad configuration range: single, twin, triple, and quad RAM assemblies
- Standard and sour-service options for H2S/CO2 environments
- Pressure ratings from 3,000 psi to 15,000 psi and bore sizes from 2.5″ to 6.375″
- ISO 9001 certified quality management system
- Complete documentation package including material certificates, NDE reports, and pressure test records
- Competitive factory-direct pricing with global shipping
- Technical support including installation guidance and maintenance recommendations
