CAMTOP RTTS circulating valve for drill stem testing. Full bore, locked open/closed, serves as circulating valve and bypass. Multiple sizes. Quote sales@cposl.com.
CAMTOP RTTS Circulating Valve | Full Bore | Locked Open/Closed | DST
£0.00
Description
CAMTOP RTTS Circulating Valve | Full Bore | Locked Open/Closed | DST
Drill Stem Testing Tools | Alloy Steel | H2S Service
Product Overview
The CAMTOP RTTS Circulating Valve is a full bore retrievable circulating valve with a locked-open/locked-closed design. The RTTS circulating valve can serve as both a circulating valve and a bypass.
This valve was designed for use with the RTTS Packer. The clearance between the RTTS packer (or any hookwall packer) and the casing ID is relatively small. To reduce the effect of fluid-swabbing action when the tool is run in or pulled out of the hole, a packer bypass is generally used.
The RTTS Circulating Valve is automatically locked in the closed position when the packer is set. During testing and squeezing operations, the lock helps prevent the valve from being pumped open.
Size (in): 4-1/2″ to 5″ / 5-1/2″ to 6-5/8″ / 7″ to 7-5/8″ / 8-5/8″ to 20″
Product Image

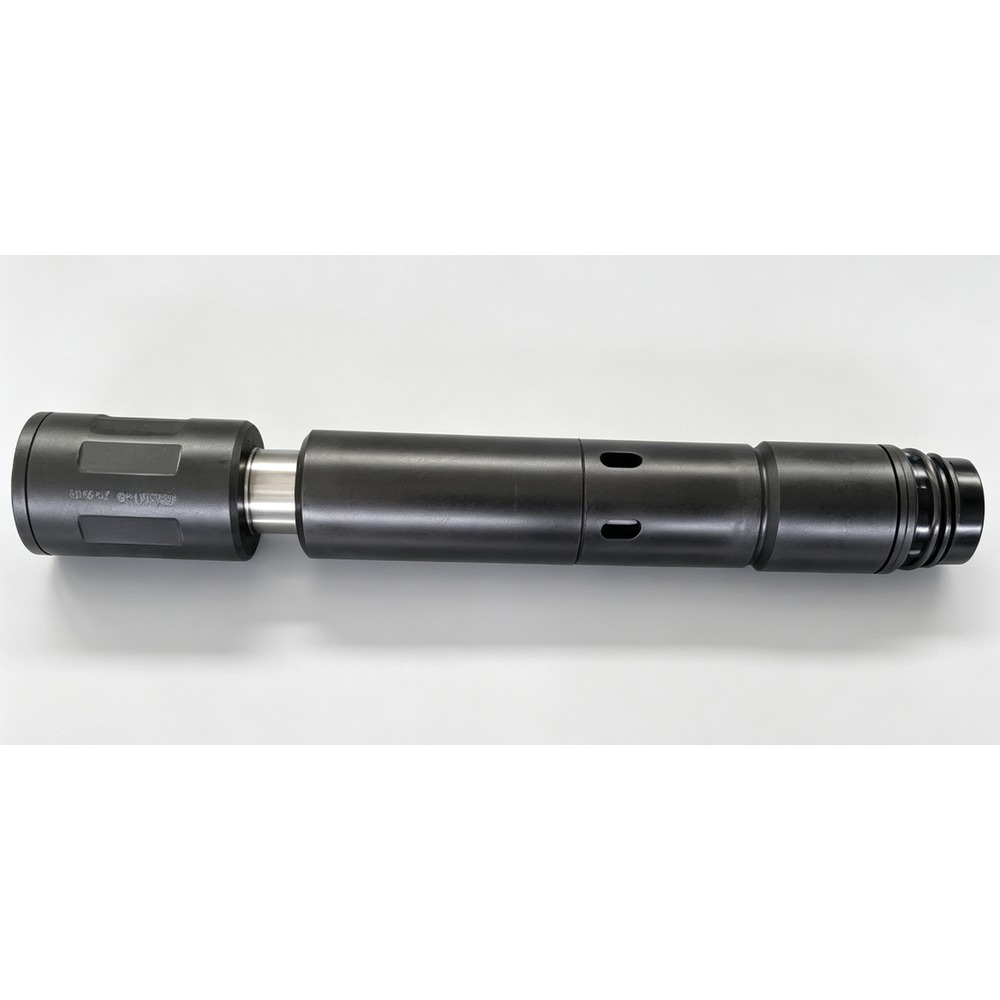

CAMTOP RTTS Circulating Valve — full bore retrievable, locked open/closed design, alloy steel, circulating valve and bypass for drill stem testing
Key Features
- Locked Open/Closed Design: Automatically locks in the closed position when the packer is set; prevents the valve from being pumped open during testing and squeezing
- Dual Function: Serves as both a circulating valve and a packer bypass
- Full Bore Retrievable: Full-opening bore allows wireline tool passage; retrievable design for easy maintenance
- RTTS Packer Integration: Designed for use with the RTTS Packer to reduce fluid-swabbing effects when running in or pulling out
- Multiple Size Options: Available in 4 sizes from 4-1/2″ to 20″ casing with various connection types
- Premium Thread Options: Standard and long stroke configurations available; premium threads by request
Technical Specifications
| Size (in) | 4-1/2″ to 5″ | 5-1/2″ to 6-5/8″ | 7″ to 7-5/8″ | 8-5/8″ to 20″ |
|---|---|---|---|---|
| OD (mm) | 90.5 | 106 | 123.5 | 155.5 |
| ID (mm) | 45 | 50.5 | 60 | 76.2 |
| Connection | 2-3/8″ EUE | 2-3/8″ EUE | 3-1/2″ EUE/IF | 4-1/2″ IF |
| Working Pressure | 10,000 psi | 5,000 psi | 5,000 psi | 5,000 psi |
| Service | NACE MR0175 (H2S) | |||
| Design | Locked-open / Locked-closed | |||
| Bore Type | Full bore retrievable | |||
| Application | Oil Well Downhole Testing Service with RTTS Packer | |||
Applications
- Cased hole drill stem testing (DST) operations
- Oil and gas well downhole testing service
- Formation testing and well completion operations
- Perforation and tubing string testing
- Circulation and fluid conditioning during well testing
- Sour-service (H2S) well testing environments
- High-pressure and high-temperature downhole conditions
Ordering Information
When requesting a quote, please specify the following parameters:
- Tool Size / OD: Required outside diameter (e.g., 5″, 3-7/8″)
- Working Pressure: Required pressure rating (5,000 / 10,000 / 15,000 psi)
- Connection Type: IF, EUE, CAS, or custom thread
- Service Environment: Standard or H2S / sour service
- Shear Pin Configuration: Required operating pressure values
- Rupture Disc Pressure Rating: (if applicable)
- Quantity Required: For pricing and delivery schedule
Why Choose CAMTOP
- Specialized manufacturer of oilfield drill stem testing (DST) tools
- High-strength alloy steel and Inconel construction with full material traceability
- Multiple sizes, pressure ratings, and connection types available
- NACE MR0175 compliance for H2S / sour service environments
- API / ISO quality management and inspection procedures
- Application engineering support for DST string integration
- Competitive pricing with fast delivery from China
Contact Us
For pricing, technical support, or to place an order, contact CAMTOP directly:
Email: sales@cposl.com
WhatsApp / Phone: +86 186 2172 3891
Address: Shanghai, China
