CAMTOP RD Rupture Disc Circulating Valve | 5 Inch | 15K PSI | DST
5 inch (127.5 mm)
Product Overview
The CAMTOP RD Rupture Disc Circulating Valve is the same as the RD Safety Circulating Valve except it lacks the ball valve section. The annulus pressure causes the rupture disc to burst, and the pressure enters the rupture disc hole to push the circulating mandrel forward, opening the circulating ports.
The valve is composed of two major sections:
1. The power section consists of a power mandrel case and a rupture disc available for a wide range of pressure applications. The rupture disc bursts at a predetermined pressure, allowing annulus pressure to be applied to a differential area on the power mandrel. The power mandrel moves down, opening a set of circulating ports.
2. The circulating section consists of a set of ports initially sealed by the power mandrel. When the rupture disc bursts and the mandrel moves down, the ports are exposed, allowing communication between the annulus and the work string.
Product: RD Rupture Disc Circulating Valve | Type: APR Tools | Size: 5 inch (127.5 mm) | OD: 127.5 mm (5″) | ID: 57 mm | Length: 1220 mm
Product Image

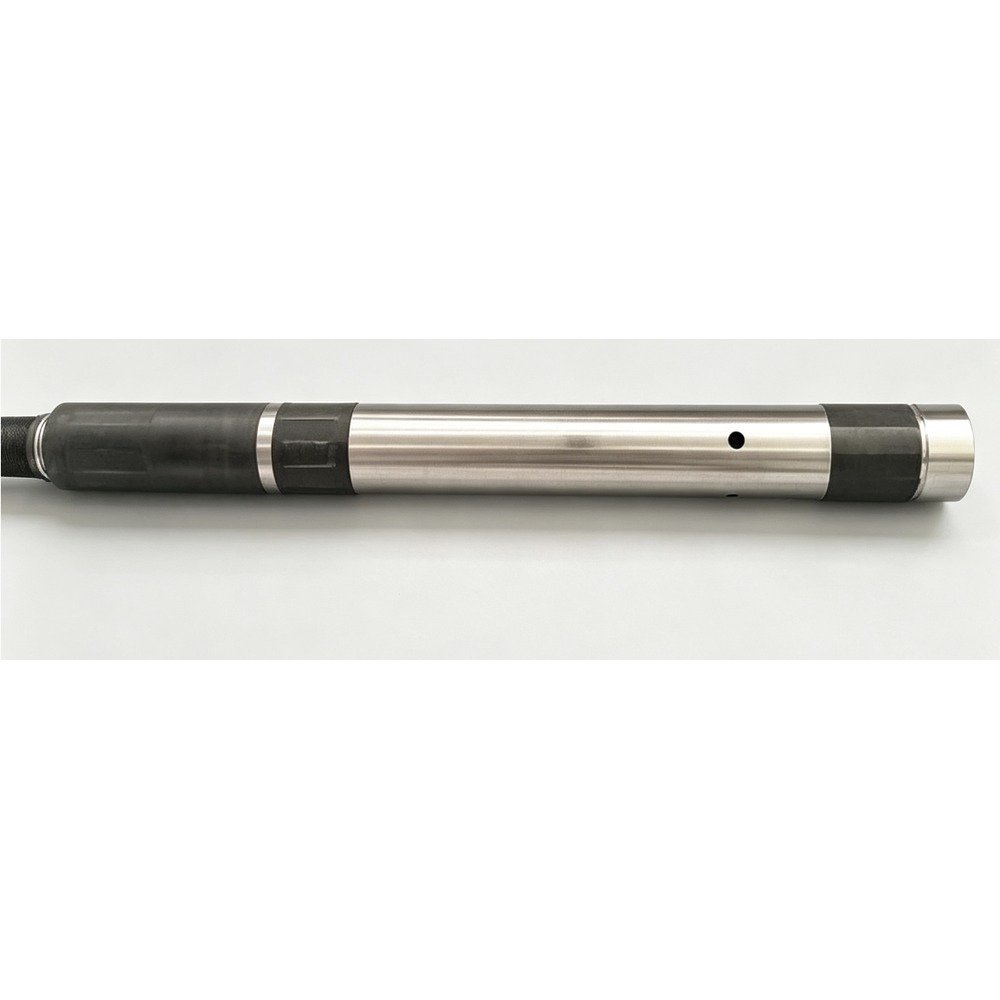

CAMTOP RD Rupture Disc Circulating Valve — 5 inch, 15,000 psi, alloy steel, annulus pressure operated circulating valve for drill stem testing
Key Features
- Rupture Disc Activation: Annulus pressure causes the rupture disc to burst at a predetermined pressure, pushing the circulating mandrel forward to open ports
- Two-Section Design: Power section (mandrel case + rupture disc) and circulating section (ports sealed by power mandrel)
- Wide Pressure Range: Rupture discs available for a wide range of pressure applications to suit various well conditions
- High Flow Area: 2025.8 mm2 flow area for efficient circulation during testing operations
- High Pressure Rating: Rated to 15,000 psi (105 MPa) with 140 MPa burst pressure
- H2S Sour Service: Compliant with NACE MR0175 for H2S-containing environments
- No Ball Valve Section: Lighter and simpler than the RD Safety Circulating Valve; purely a circulating tool
Technical Specifications
| Item | Specification |
|---|---|
| Product | RD Rupture Disc Circulating Valve |
| Type | APR Tools |
| Size | 5 inch (127.5 mm) |
| OD | 127.5 mm (5″) |
| ID | 57 mm |
| Length | 1220 mm |
| Working Pressure | 105 MPa (15,000 psi) |
| Tensile Strength | 2337 KN |
| Burst Pressure | 140 MPa |
| Collapse Pressure | 130 MPa |
| Torque Strength | 61 kN.m |
| Flow Area | 2025.8 mm2 |
| Working Temperature | -29C to +180C |
| Service | H2S NACE MR0175 (Above 175F) |
| Connection Thread | 3-1/2″ EUE/IF/CAS Box Pin |
| Application | Oil Well Downhole Testing Service |
Applications
- Cased hole drill stem testing (DST) operations
- Oil and gas well downhole testing service
- Formation testing and well completion operations
- Perforation and tubing string testing
- Circulation and fluid conditioning during well testing
- Sour-service (H2S) well testing environments
- High-pressure and high-temperature downhole conditions
Ordering Information
When requesting a quote, please specify the following parameters:
- Tool Size / OD: Required outside diameter (e.g., 5″, 3-7/8″)
- Working Pressure: Required pressure rating (5,000 / 10,000 / 15,000 psi)
- Connection Type: IF, EUE, CAS, or custom thread
- Service Environment: Standard or H2S / sour service
- Shear Pin Configuration: Required operating pressure values
- Rupture Disc Pressure Rating: (if applicable)
- Quantity Required: For pricing and delivery schedule
