CAMTOP OMNI Multi-Cycle Circulating Valve | 15K PSI | DST Service
3-7/8 inch & 5 inch | 105 MPa (15,000 psi)
Product Overview
The CAMTOP OMNI Multi-Cycle Circulating Valve is a full-opening, annulus pressure-operated reclosable circulating valve which can be opened and closed many times. Also known as the OMNI circulating valve in Halliburton type nomenclature.
The multi-cycle circulating valve is operated by repeatedly cycling the annulus pressure up to a predetermined value and then releasing this pressure. Each pressure cycle shifts the valve to the next position (open/close), allowing multiple circulation operations during a single trip.
The OMNI valve can be applied for full-opening formation testing in cased holes, oil tube tradition perforation, tube string testing, and cycle operation in the conjunction of perforation and full-opening formation testing. It makes the test program simpler and greatly reduces the reconnoitering cost.
Product: OMNI Multi-Cycle Circulating Valve | Type: APR Tools — Annulus Pressure Operated | Size: 3-7/8 inch & 5 inch | Working Pressure: 105 MPa (15,000 psi) | Service Environment: Mud, Crude Oil, Natural Gas with H2S and acid | Working Temperature: -29C to +204C (-20F to +400F)
Product Image

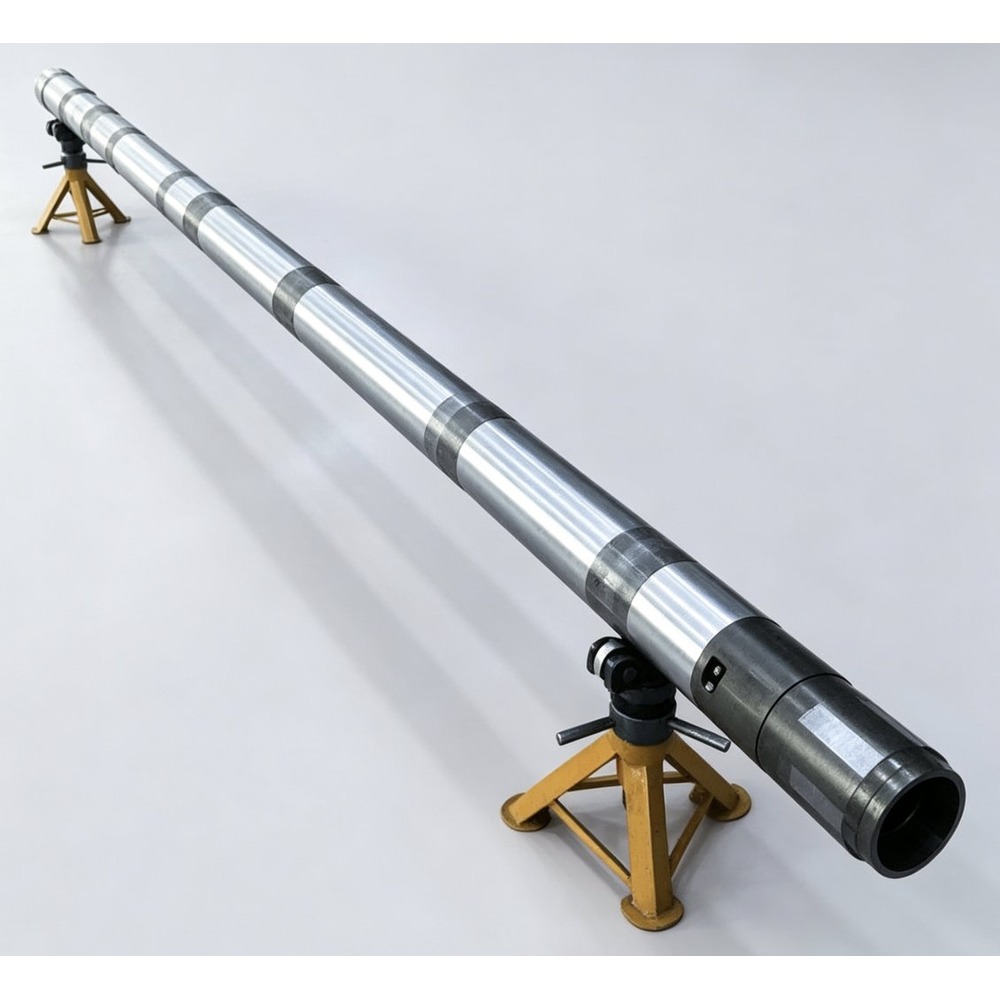

CAMTOP OMNI Multi-Cycle Circulating Valve — 3-7/8 to 5 inch, 15,000 psi, alloy steel/Inconel, annulus pressure operated reclosable circulating valve for drill stem testing
Key Features
- Multi-Cycle Operation: Can be opened and closed many times during a single trip by cycling annulus pressure to a predetermined value
- Full-Opening Design: Full bore through the tool allows wireline tool passage and unrestricted flow
- Annulus Pressure Operated: Operated by repeatedly cycling annulus pressure up and down; no wireline or coiled tubing required
- Inconel Option: Available in alloy steel or Inconel construction for corrosive environments
- Simplified Test Program: Makes the test program simpler and greatly reduces reconnoitering cost
- Versatile Applications: Full-opening formation testing, perforation, tube string testing, and cycle operations
- H2S and Acid Service: Suitable for mud, crude oil, natural gas with H2S and acid environments
Technical Specifications
| Item | Specification |
|---|---|
| Product | OMNI Multi-Cycle Circulating Valve |
| Type | APR Tools — Annulus Pressure Operated |
| Size | 3-7/8 inch & 5 inch |
| Working Pressure | 105 MPa (15,000 psi) |
| Service Environment | Mud, Crude Oil, Natural Gas with H2S and acid |
| Working Temperature | -29C to +204C (-20F to +400F) |
| Material | Alloy Steel / Inconel |
| Connection | EUE / IF / CAS |
| Application | Oil & Gas Well Downhole Drill Stem Testing Service |
| Design | Full-opening, reclosable, multi-cycle |
Applications
- Cased hole drill stem testing (DST) operations
- Oil and gas well downhole testing service
- Formation testing and well completion operations
- Perforation and tubing string testing
- Circulation and fluid conditioning during well testing
- Sour-service (H2S) well testing environments
- High-pressure and high-temperature downhole conditions
Ordering Information
When requesting a quote, please specify the following parameters:
- Tool Size / OD: Required outside diameter (e.g., 5″, 3-7/8″)
- Working Pressure: Required pressure rating (5,000 / 10,000 / 15,000 psi)
- Connection Type: IF, EUE, CAS, or custom thread
- Service Environment: Standard or H2S / sour service
- Shear Pin Configuration: Required operating pressure values
- Rupture Disc Pressure Rating: (if applicable)
- Quantity Required: For pricing and delivery schedule
Why Choose CAMTOP
- Specialized manufacturer of oilfield drill stem testing (DST) tools
- High-strength alloy steel and Inconel construction with full material traceability
- Multiple sizes, pressure ratings, and connection types available
- NACE MR0175 compliance for H2S / sour service environments
- API / ISO quality management and inspection procedures
- Application engineering support for DST string integration
- Competitive pricing with fast delivery from China
