CAMTOP 15D Single Backup for RS or 4500/5500/5600 open-type hydraulic power tubing tongs. Double-speed shift, planetary gearbox, self-lock safety door. Torque up to 13,000 N·m.
CAMTOP 15D Single Backup for RS or 4500/5500/5600 Tubing Tong | Hydraulic Power Tong
£0.00
Description
Product Overview
The CAMTOP 15D Single Backup for RS or 4500/5500/5600 tubing tongs works with a new pattern of open-type hydraulic power tong, manufactured using advanced technology from the USA and co-produced with an American company.
It adopts advanced tubing clamping technology and a special transmission system, and is the safe, convenient and effective tong for making-up and breaking-out of tubings of different given specifications. All these features make it an ideal tool for making up and breaking out common tubings in oil field work.
Product Image
Key Features
- Double-speed-shift design makes possible safe making up and breaking out of tubings.
- Gear reduction system consists of a planetary type gearbox which has the advantages of light weight, small volume, high ratio and high efficiency.
- Self-lock safety guard door — when it opens, it can lock the manual valve handle automatically; when it shuts, it can break away the lock situation, which assures operator safety at work.
- Quick shift between make-up and break-out — exchange the position of the jaw assembly and bushing assembly, and prompt shift between making up and breaking out can be realized.
- Flexible size range — changing the jaw and bushing assembly for different specifications will meet the needs of making up and breaking out in a given range.
- Open-type design for fast, convenient operation and easy maintenance on the rig floor.
- Wide model compatibility — available for RS/RWX, CTS, 4500 (HSC45), 5500 and 5600 tong models.
- High torque output — low gear torque up to 13,000 N·m (9,590 ft·lbs) on the 5600 model.
- USA technology, co-produced with an American company for reliable performance.
Technical Specifications
| Parameter | RS/RWX | CTS | 4500, HSC45 | 5500 | 5600 |
|---|---|---|---|---|---|
| Range | 1.05″ ~ 1.900″ 2 3/8″ ~ 4 1/2″ |
1.05″ ~ 2.063″ 2 3/8″ ~ 4 3/4″ |
|||
| High Gear Rated Torque | 1600 N·m 1200 ft·lbs |
2300 N·m 1700 ft·lbs |
2000 N·m 1470 ft·lbs |
1900 N·m 1400 ft·lbs |
2500 N·m 1840 ft·lbs |
| Low Gear Rated Torque | 6300 N·m 4650 ft·lbs |
9000 N·m 6670 ft·lbs |
7300 N·m 5380 ft·lbs |
9700 N·m 7150 ft·lbs |
13000 N·m 9590 ft·lbs |
| High Gear Rated Speed (r/min) | 83 | 68 | 96 | 101 | 76 |
| Low Gear Rated Speed (r/min) | 21 | 18 | 26 | 20 | 16 |
| Rated Working Pressure | 14 MPa (2000 psi) | ||||
| MWP (Maximum Working Pressure) | 17 MPa (2500 psi) | ||||
| Rated Flow | 114 L/min (30 gpm) | ||||
| Max. Flow | 151 L/min (40 gpm) | ||||
| Dimension (L×W×H) | 1300×680×380 mm 51.2″×26.8″×15″ |
788×1092×660 mm 31″×43″×26″ |
|||
| Weight | 350 kg (760 lbs) | 320 kg (705 lbs) | 350 kg (760 lbs) | ||

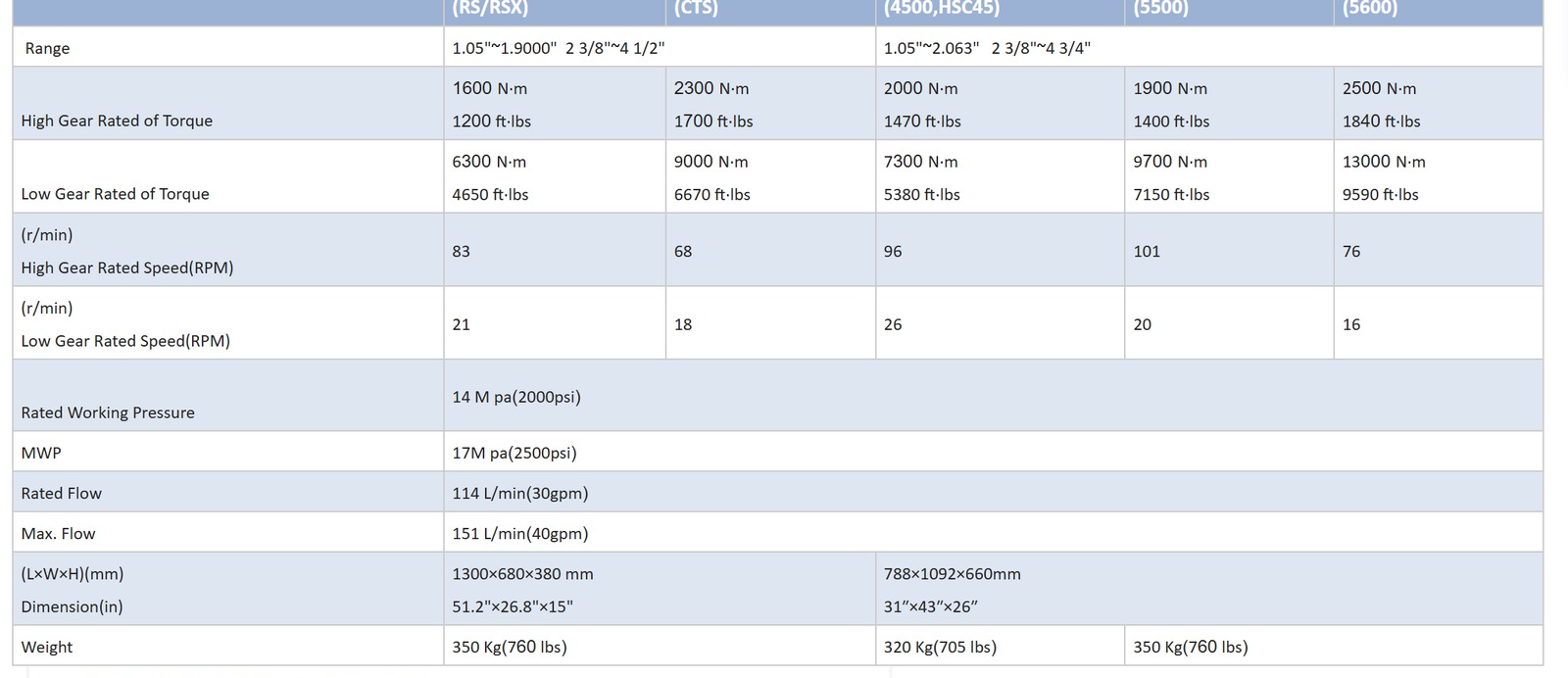

Specifications — Original Reference
Application Scenarios
- Making up and breaking out tubing joints (2 3/8″ to 4 3/4″) during workover and completion operations.
- Tubing running and pulling services on well servicing rigs.
- Oil field workover operations requiring safe, remote-controlled tong torque.
- Pairing with hydraulic power units rated at 14 MPa (2,000 psi) working pressure.
- Replacement or upgrade backup tong for RS, RWX, CTS, 4500, HSC45, 5500 and 5600 power tong models.
- Workshops and maintenance facilities performing tubing make-up tests.
Why Choose CAMTOP
- Advanced tubing clamping technology and special transmission system.
- Planetary gearbox reduction: light weight, small volume, high ratio, high efficiency.
- Safety-first design with self-lock guard door interlocked with the manual valve handle.
- One tong family covers a wide tubing size range by simply changing jaw and bushing assemblies.
- Manufactured with advanced USA technology in co-operation with an American company.
- Spare parts and technical support available worldwide from CAMTOP Shanghai.
Ordering Information
Product: 15D Single Backup for RS or 4500/5500/5600 Tubing Tong
Compatible models: RS/RWX, CTS, 4500, HSC45, 5500, 5600
Tubing range: 1.05″–2.063″ (2 3/8″–4 3/4″) depending on tong model
SKU: CT-15D-BK-001
Please specify your tong model and tubing size range when requesting a quotation so we can configure the correct jaw and bushing assemblies.
Contact CAMTOP for Orders & Technical Support
Email: sales@cposl.com
Phone: +86-18621723891
Address: Shanghai, China
