- Available with all common casing and tubing threads in all flange sizes, pressures and trims.
- Hot-dipped galvanized flanges conform to ASTM A153

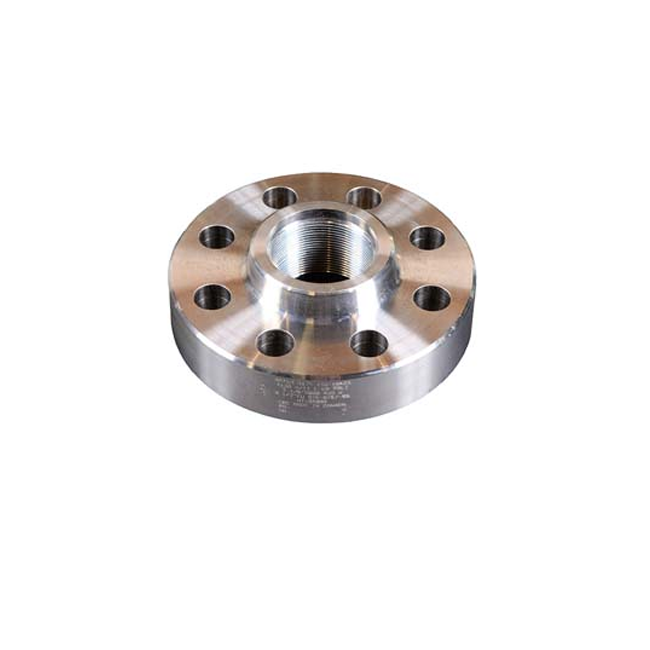

- Companion flanges threads conform to ASME B1.20.1

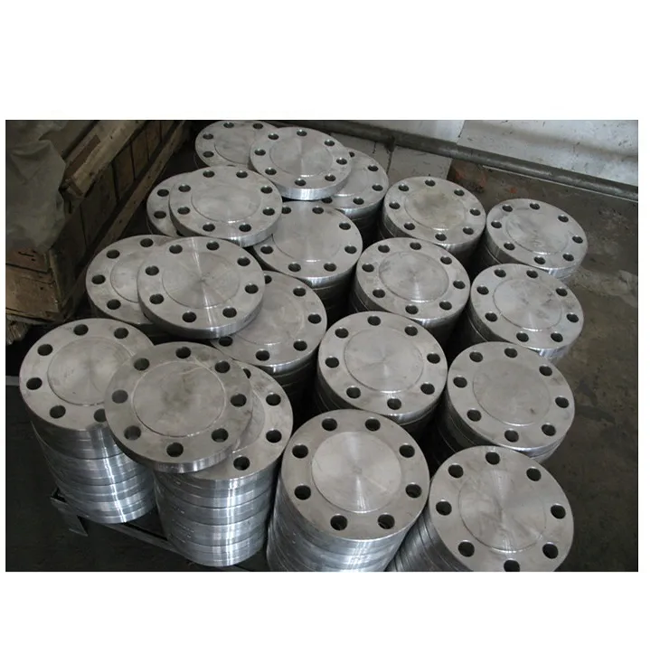

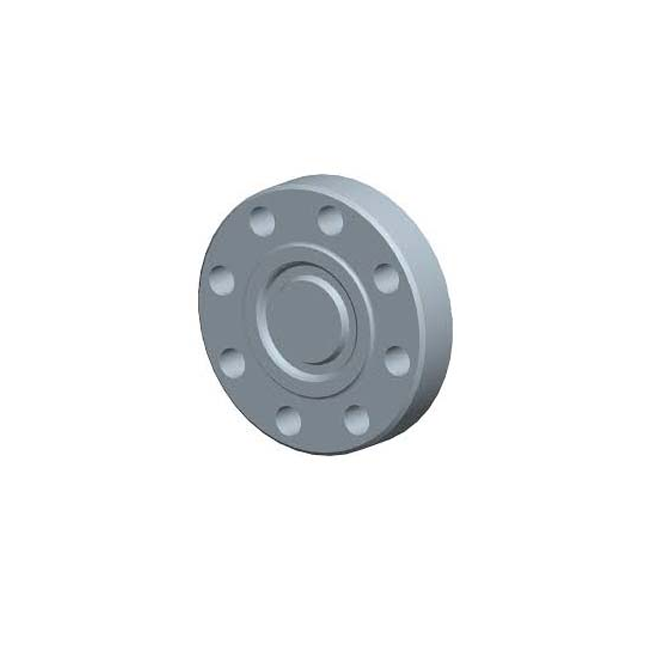

A Blind Flange is a solid disk used to block off a pipeline or to create a stop. Like a regular flange, it also has mounting holes around the perimeter and the gasket sealing rings machined into the mating surface. The difference is that a blind flange has no opening to allow fluid to pass through.
Size: 1-13/16 in ~ 26-3/4 in
Working Pressure: 2000PSI, 3000PSI, 5000PSI, 10000PSI, 15000PSI, 20000 PSI
Material: AISI 4130(forged)/ SUS316/Inconel 625 / 410 Stainless Steel
Face: RTJ, FF, RF
Connection: Bolted or Studded
Temp Class: L-U
Material Class: BB, CC, DD, EE, FF
Product Specification Level: PSL1, PSL2, PSL3, PSL4
Performance Requirement: PR1, PR2
