Description

140MPa Pneumatic High Pressure Stop Valve（140QGF6-00）

series globe valve is mainly used in hydraulic pipeline or hydraulic integrated system to control the flow of oil or cut-off, its valve core is conical seal and hydraulic balance type, with small opening force, good sealing performance and other characteristics.

This series of globe valves are mainly composed of valve body, valve core, adjusting rod, handwheel, etc. The valve body is made of steel forging, with nickel plating on the surface and excellent corrosion resistance.This series of globe valve has screw thread, flange, plate type and other installation connection, easy to choose.

140MPa气控超高压截止阀 140MPa Pneumatic High Pressure Stop Valve（140QGF6-00）

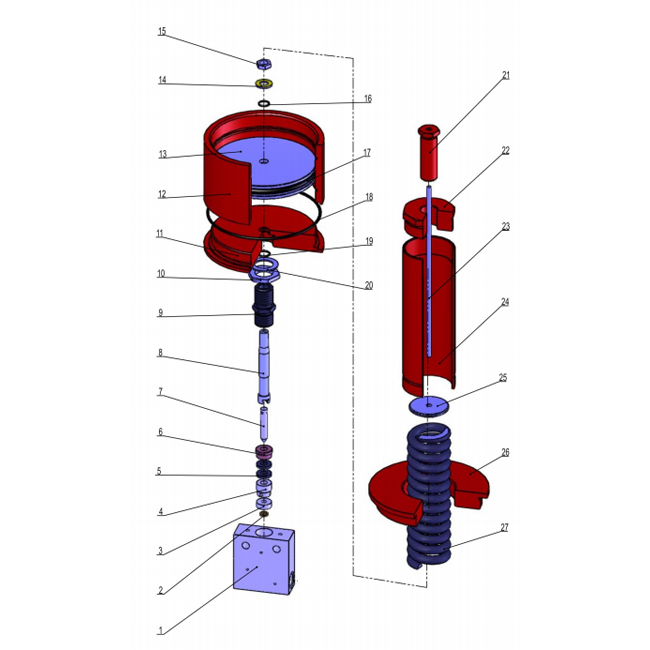

In repair kit维修包 (Item)序号 图号(Part No.) 名称(Description) 数量Qty
1 140GF6-01 阀体 Valve body 1
2 140GF6-13 密封垫 Seal Gasket 1
3 200GF6-02 阀座 Valve Seat 1
4 140GF6-04 支承套 Surpporting Sleeve 1
▲ 5 200GF6-04 密封垫 Seal Gasket 2
6 200AF6—06 压套 Pressing Sleeve 1
▲ 7 200GF6-03 阀锥 Valve Core 1
8 200GF4-09 螺杆 Valve Stem 1
9 200GF4-08 阀盖 Valve Cap 1
10 200GF4-15 锁紧螺母Lock Nut 1
11 200GF4-03 气缸下盖 Air Cylinder Lower Cover 1
12 200GF4-04 缸筒 Cylinder 1
13 200GF4-06 活塞Piston 1
14 GB 95-2002 10 垫圈Washer 1
15 GB/T 41-2000 M10 螺母Nut 1
▲ 16 GB-T 3452.1 O形密封圈O-Ring 1
▲ 17 GB-T 3452.1 112×7-A O形密封圈O-Ring 1
▲ 18 GB-T 3452.1 132×2.65-A O形密封圈O-Ring 1
▲ 19 GB-T 3452.1 11.8×1.8-A O形密封圈O-Ring 1
20 200GF4-14 垫圈Washer 1
21 200GF4-10 弹簧压母 Spring Retainer 1
22 200GF4-12 压帽 Retainer 1
23 200GF4-11 开关显示杆 Position indicator 1
24 200GF4-07 弹簧护罩Spring Sleeve 1
25 200GF4-16 弹簧压座 Spring retainer 1
26 200GF4-05 气缸上盖 Air cylinder upper cover 1
27 1-1/2″YQKG-07 弹簧 Spring 1
