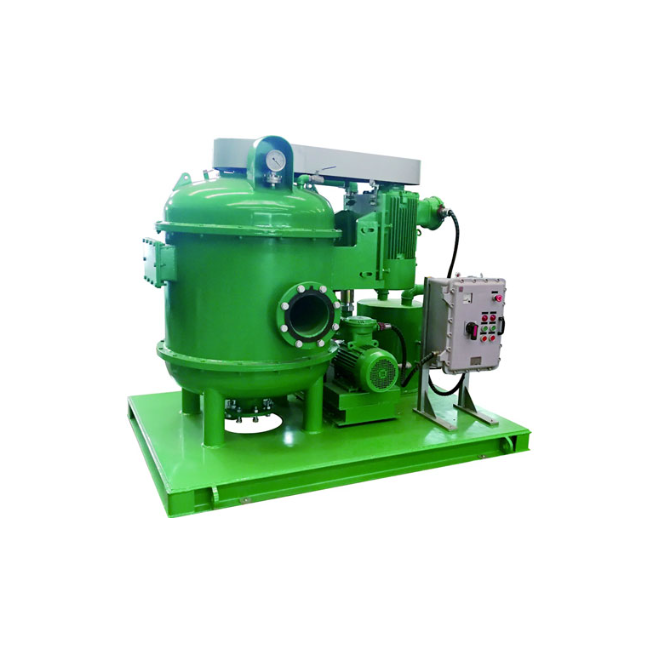

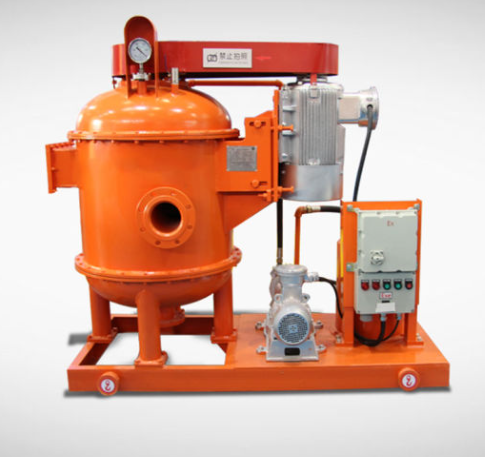

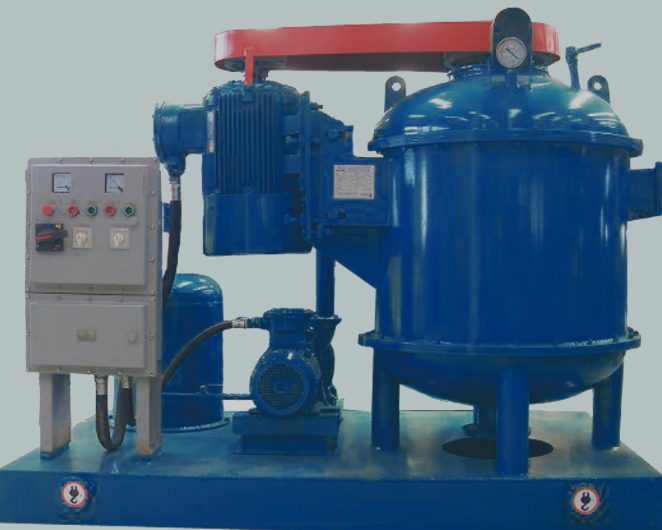

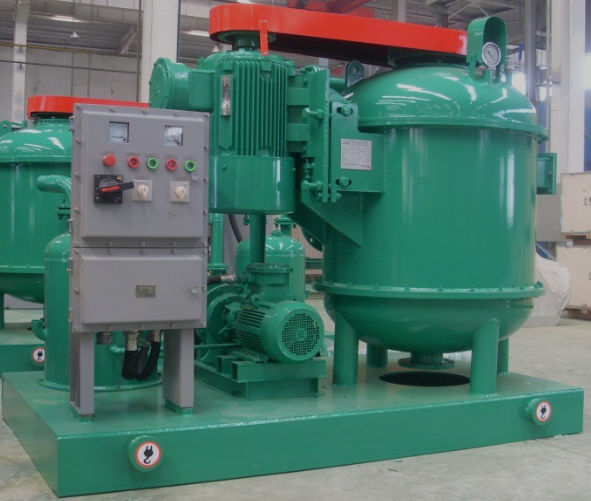

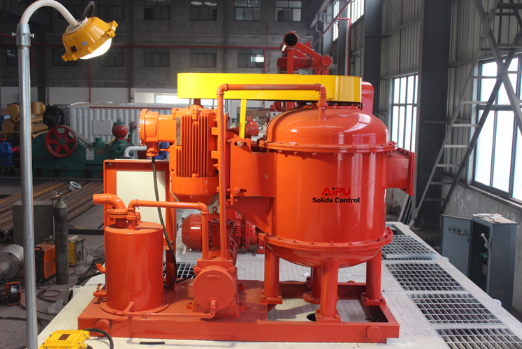

ZCQ series Vacuum Degasser is a special-purpose device and a new type one for the treatment of gas in the drilling fluids. It can get rid of various gas of invasive drilling quickly. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Also, at the same time vacuum degasser can be used as a heavy-power agitator and supported applicable to all types of mud circulation purification system. The vaccum degasser design of the structure is scientific and rational. So we are able to achieve an effective gas-liquid separation, filter out impurities and to ensure that the exhaust pipe is always smooth.
- Desilter Options with shaker and without shaker for flexible application.
- Desilter cones with PU material with better Abrasion resistance.
- No under shaker design structure compact and assembly flexible.
- Mini desilter cleaner with shaker for both weighted / unweighted mud in various drilling.
|Capacity||≤270 m3/h (1188GPM)||≤360 m3/h (1584GPM)|
|Vacuum Degree||-0.02~-0.04 Mpa|
|Main Motor Power||22Kw (30HP)||37Kw (50HP)|
|Pump Motor Power||7.5Kw (10 HP)|
|EX Standard||ExdIIBt4 / IEC EX/ ATEX|
|Suction Line Size||6 Inch|
|Output Size||8 Inch|
|The above specification and parameters for reference only.|
