Description

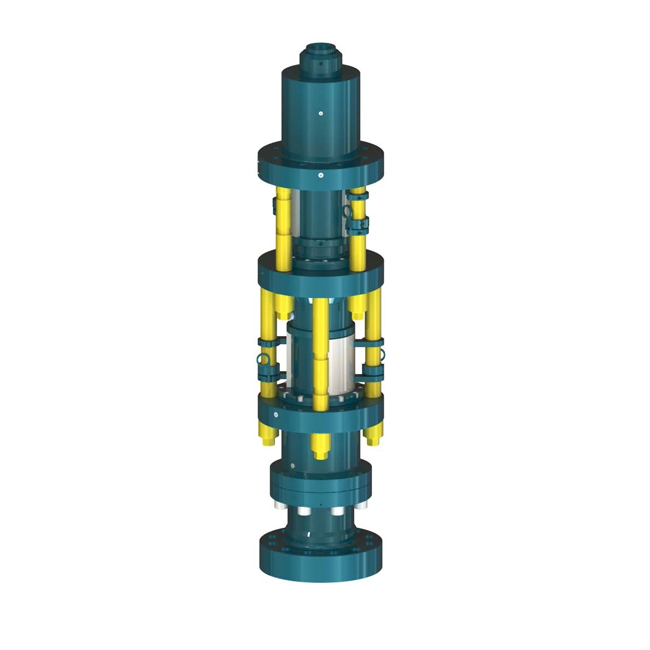

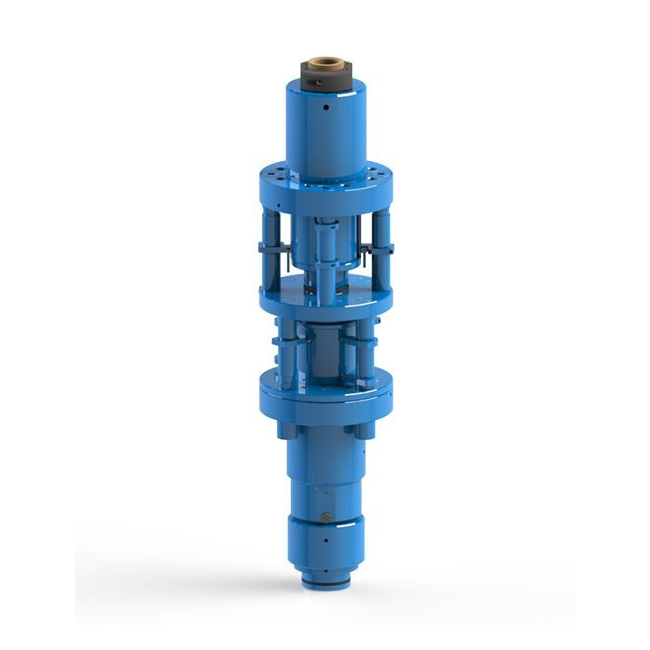

Stripper Packer



As coiled tubing runs in and out of the well, stripper packer can effectively pack-off on coiled tubing to prevent overflow of oil, gas, water and other fluids, avoiding natural resource waste and environmental pollution. It is an important well control unit to safeguard operation and personal safety.

To satisfy customer requirements, we offer 4 types of stripper packers, including side door, over/under, dual side door and tandem. Top and bottom connections may be flange or union to suit different needs. Each stripper packer is seal performance tested in strict accordance with API 16A before delivery to ensure its safety and reliability.

We can offer customized design as per customer requirements.

Features
Side Door Stripper Packer

Simple configuration and compact size.

Single hydraulic passage provides a clear layout, easy for connection.

Single hydraulic passage requires less seals, reliable and easy to maintain.

Side door design allows fast replacement of packer and bushing.

Model Main Bore Rated Pressure (psi) Max. Hydraulic Pressure (psi) Tubing Size Weight (lbs) Dimensions
3 1/16″-10K 2 9/16″ 10,000 5,000 1″-2″ 290 11.37″×11.37″×33.44″
4 1/16″-10K 4 1/16″ 10,000 5,000 1″-2 7/8″ 950 17.75″×17.75″×44.81″

Over/under stripper packer

Dual packer design enables continuous and safe operation in case of one packer failure.

Upper packer is installed from the top, while lower packer is installed from the side.

Compact size and lighter weight.

Model Main Bore Rated Pressure (psi) Max. Hydraulic Pressure (psi) Tubing Size Weight (lbs) Dimensions
4 1/16″-10K 4 1/16″ 10,000 3,000 1″-2 7/8″ 1,762 17.00″×17.00″×73.78″
4 1/16″-15K 4 1/16″ 15,000 3,000 1″-2 7/8″ 1,902 17.00″×17.00″×70.26″
4 1/16″-20K 4 1/16″ 20,000 3,000 1″-2 7/8″ 2,636 18.50″×18.50″×81.50″

Dual side door stripper packer

Dual packer design enables continuous and safe operation in case of one packer failure.

Upper and lower packers are both replaced from the side door, allowing fast replacement of packer and bushing.

Extension guide bushing helps to reduce wear and extend service life of the packer.

Model Main Bore Rated Pressure (psi) Max. Hydraulic Pressure (psi) Tubing Size Weight (lbs) Dimensions
4 1/16″-10K 4 1/16″ 10,000 3,000 1″-2 7/8″ 1,328 16.50″×16.50″×55.96″
4 1/16″-15K 4 1/16″ 15,000 3,000 1″-2 7/8″ 1,375 17.00″×17.00″×53.05″

Tandem Stripper Packer

With the union connection above, TANDEM stripper packer may be operated with the side door stripper packer, in case which fails, it will be energized to continue the operation.

Single hydraulic passage provides a clear layout, easy for connection

Upper and lower packers are both replaced from the side door, allowing fast replacement of packer and bushing.

Model Main Bore Rated Pressure (psi) Max. Hydraulic Pressure (psi) Tubing Size Weight (lbs) Dimensions
4 1/16″-10K 4 1/16″ 10,000 5,000 1″-2 7/8″ 1,164 17.75″×17.75″×57.98″
