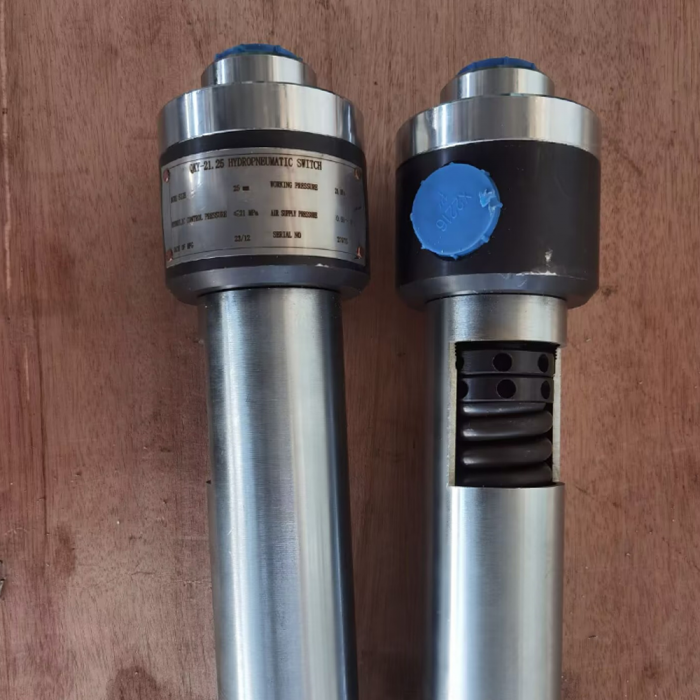

The hydro-pneumatic pressure switch is a two-position, two-way reversing valve that controls the starting and stopping of the pneumatic oil pump.
The hydro-pneumatic pressure switch is a two-position, two-way reversing valve that controls the starting and stopping of the pneumatic oil pump.

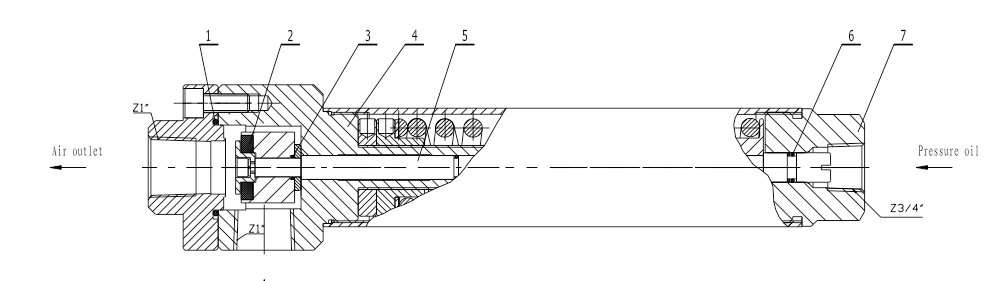

| 7 | Y10-14 | Valve back cover | 1 |
|---|---|---|---|
| 6 | GB3452.1-82 | “O”-ring | 1 |
| 5 | Y10-10 | Valve stem | 1 |
| 4 | Y10-06 | Valve seat | 1 |
| 3 | GB3452.1-82 | “O”-ring | 2 |
| 2 | Y10-02 | Sealing ring | 1 |
| 1 | GB3452.1-82 | “O”-ring | 1 |
| Item No. | Code | Description | Qty |
| Model QKY21-25 Hydraulic-pneumatic switch |
|||
| Drawing No. | Y10-00 | ||
