Iron Roughneck

Torque Readout System for automatic make-up/break-out operations.
Available for onshore and offshore rigs.
Precise torque measurement, dynamic clamping system.
Torque Readout System for automatic make-up/break-out operations.
Available for onshore and offshore rigs.

Description



Iron Roughneck

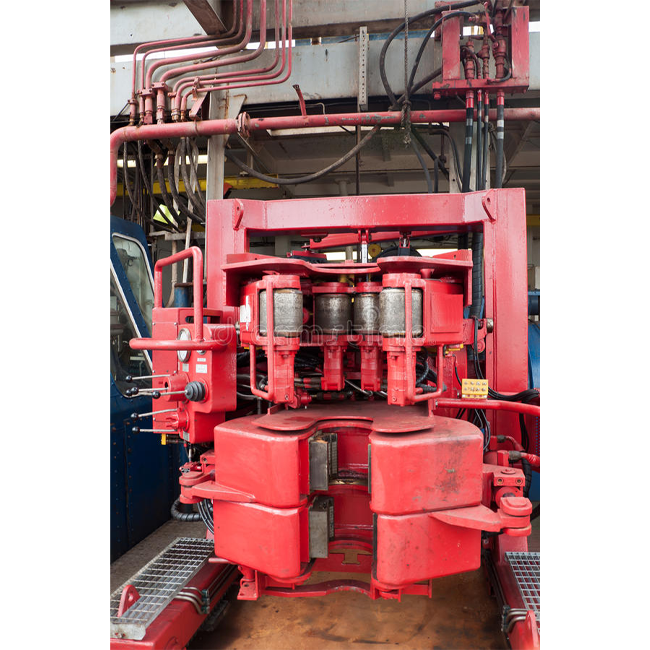

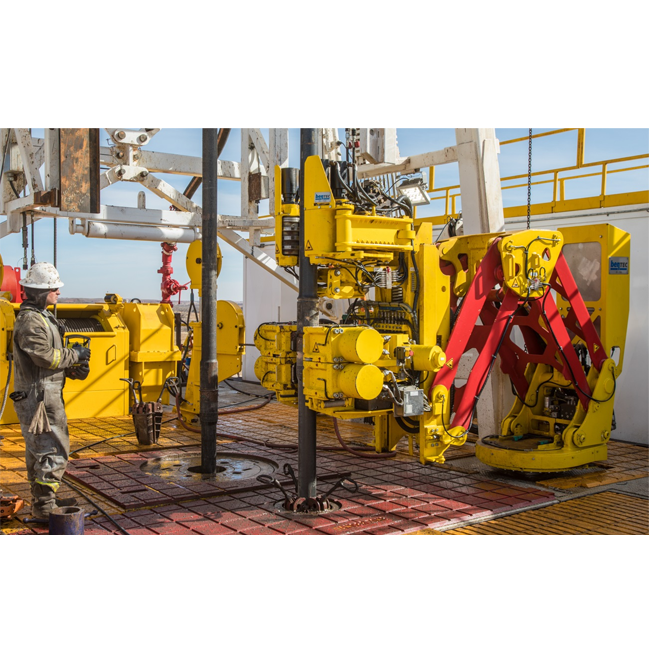

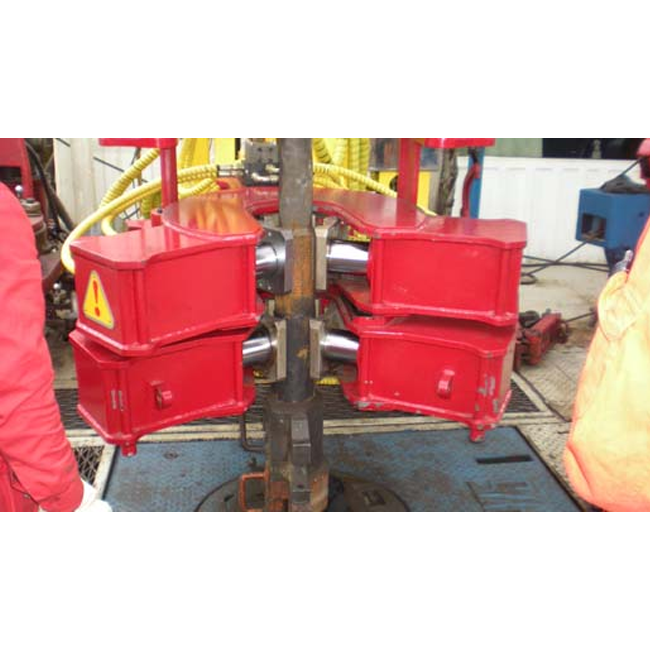

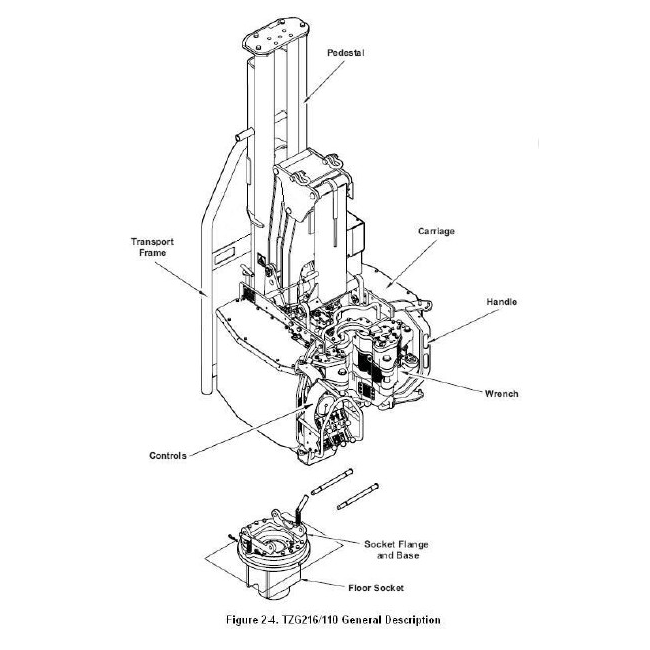

The TZG216/110 iron roughneck is an oil-rig tool used for make-up and break-out of drilling tubular connections. Designed for use on smaller rigs where floor space is limited, the durable TZG216/110 iron roughneck features a extend/retract scissor-arm system and is available in standard and tall models. With the tall pedestal iron roughneck model, the operator has the capability of raising the iron roughneck above the deck crew’s head in the parked position. Thus, the TZG216/110 allows clearance around well center and mousehole both during use and when placed in the parked position.

Size Range MM 88.9-216
Inch 3 1/2-8 1/2
Speed RPM 80
Spin Torque N.m 3050
Ft.lbf 2250
Make up Torque N.m 81350
Ft.lbf 60000
Break up Torque N.m 108456
Ft.lbf 80000
Weight KG 3450
LB 7600
