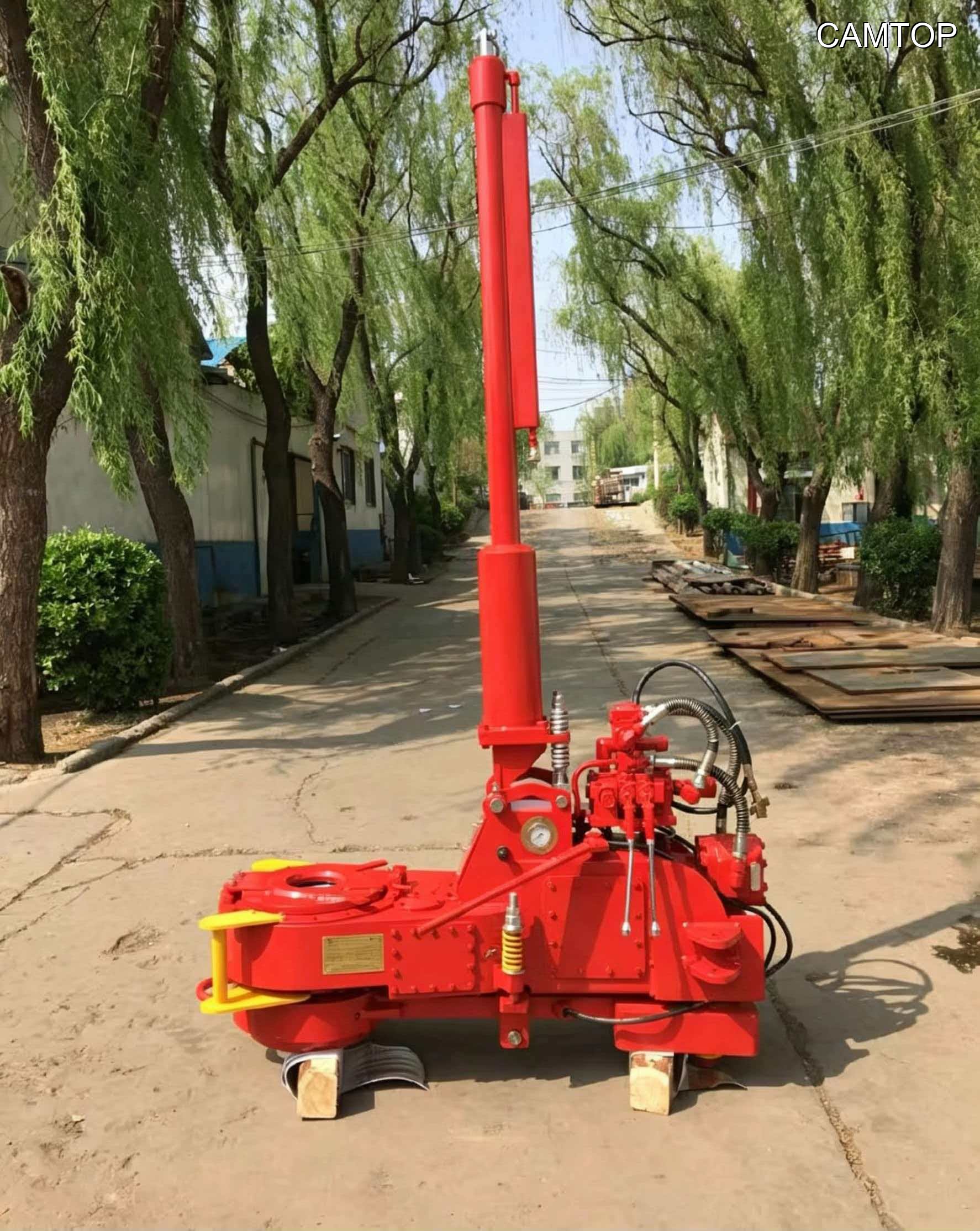

GILL Model 600 Power Tubing Tong
1-5/16″ to 6-5/8″ | High Torque 15,000 ft-lbs | Two-Speed Power Shift
Product Overview
The GILL Model 600 Power Tong is a safe, accurate, and reliable unit for the makeup and breakout of tubing and casing from 1-5/16″ to 6-5/8″ OD. Featuring a closed head design, two-speed power shift transmission, and pressurized oil bath lubrication, the Model 600 delivers consistent high-torque performance with reduced maintenance requirements in demanding oilfield operations.
Size Range: 1-5/16″ to 6-5/8″ (33.3mm to 177.8mm) | High Torque: 15,000 ft-lbs @ 2,000 psi | Weight: 2,100 lbs (953 kg) with backup tool & transport rack

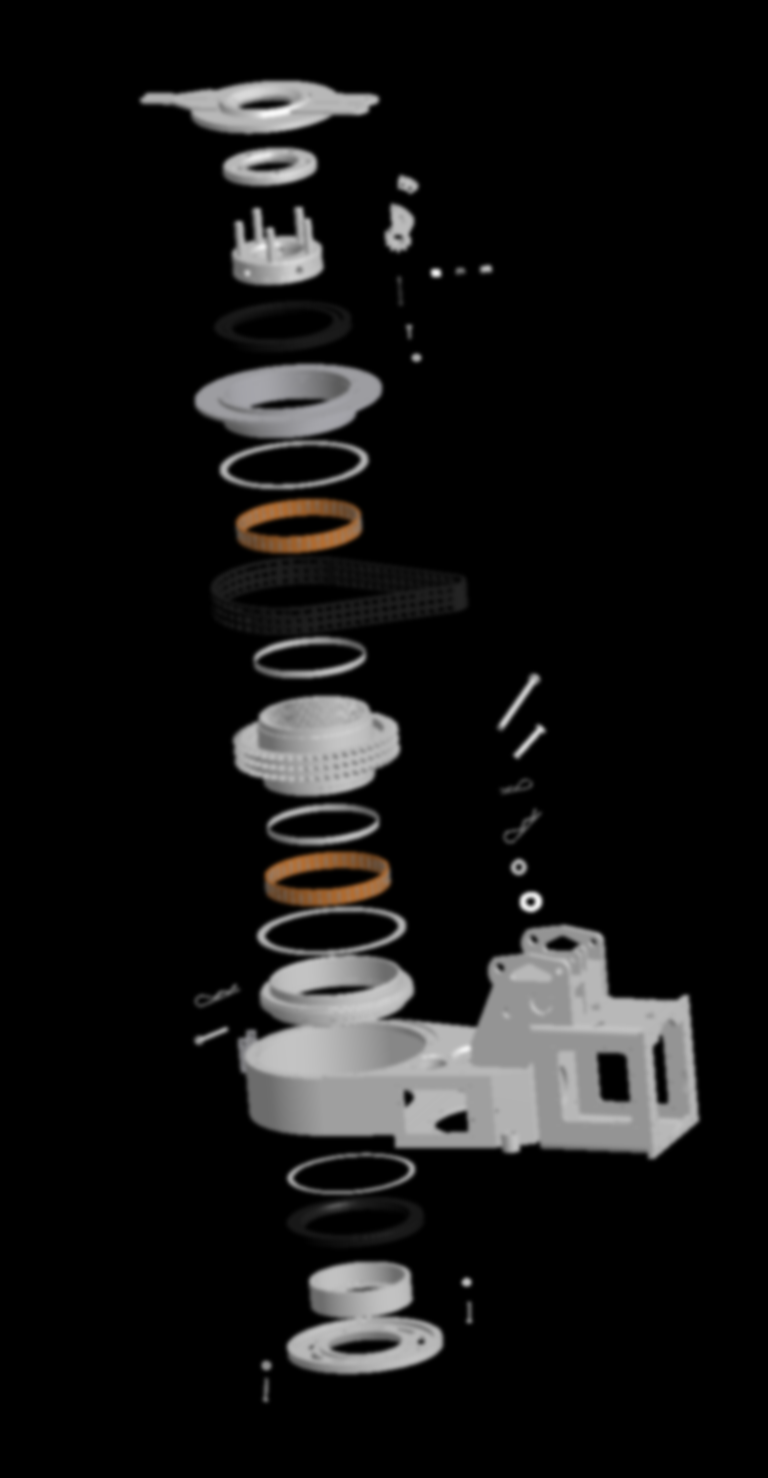

Assembly Drawing — Final Drive
GILL Model 600 Final Drive Assembly — For reference only

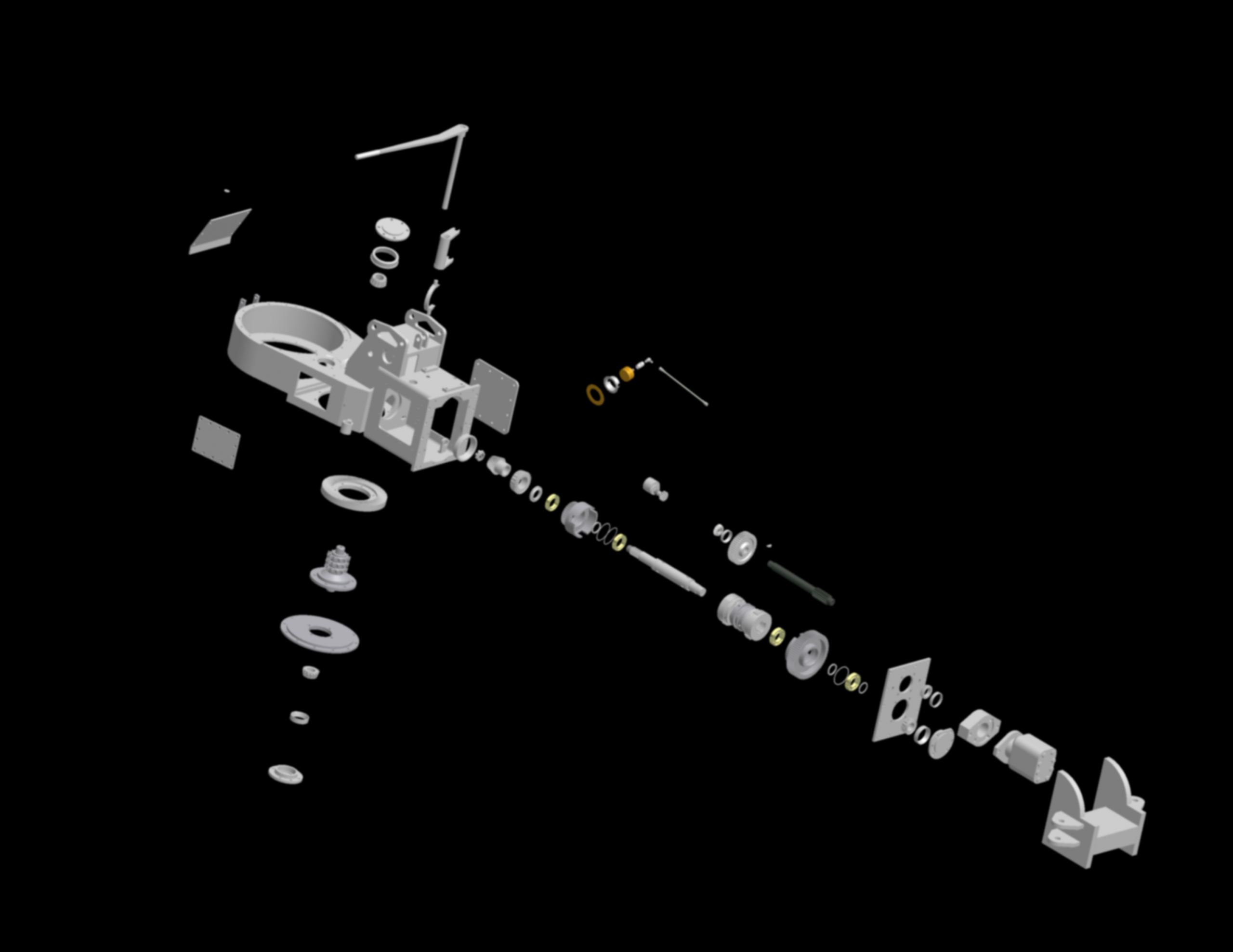

Assembly Drawing — Transmission
GILL Model 600 Transmission Assembly — For reference only
Key Features
- Closed Head Design: Tong remains in position during the entire trip, reducing makeup and breakout time
- Power Shift Transmission: Enables operator to change gears during tong operation without stopping
- Two-Speed Operation: High gear (76 rpm) for speed, Low gear (11 rpm) for maximum torque of 15,000 ft-lbs
- Pressurized Oil Bath Lubrication: Ensures uniform lubrication of all transmission components for extended service life
- Adjustable Clutch: Extends the life of transmission components with field-adjustable settings
- Direct Motor Drive: Minimizes power loss with improved drive alignment for quieter, more efficient operation
- Roller Chain Final Drive: Robust and serviceable power transmission system
- Split Guide Ring: Provides easier and safe access to jaws and final drive gear components
- Controlled Torque: Adjustable relief valve for precise makeup torque control
- Versatile Jaw Sets: Wide range of jaw sets available for 1-5/16″ through 6-5/8″ tubing and casing
Technical Specifications
| Item | Specification |
|---|---|
| Model | GILL Model 600 |
| Size Range | 1-5/16″ to 6-5/8″ (33.3 mm to 177.8 mm) |
| High Torque @ 2,000 psi | 15,000 ft-lbs (20,340 Nm) — Low Gear |
| Standard Torque @ 2,000 psi | 12,000 ft-lbs (16,272 Nm) — Low Gear |
| High Torque — High Gear | 2,500 ft-lbs (3,390 Nm) |
| Speed — High Gear | 76 rpm @ 33.5 gpm (127 LPM) |
| Speed — Low Gear | 11 rpm @ 33.5 gpm (127 LPM) |
| Weight (with backup & rack) | 2,100 lbs (953 kg) |
| Max System Pressure | 2,500 psi |
| Recommended Operating Pressure | 2,200 psi (relief valve setting) |
| Transmission Type | Power Shift, Two-Speed |
| Final Drive | Roller Chain |
| Lubrication | Pressurized Oil Bath (28 Qt capacity, API MS 30W) |
| Design | Closed Head with Split Guide Ring |
Torque Performance
| Gear | Speed (rpm) | Std. Torque | High Torque |
|---|---|---|---|
| Low Gear | 11 rpm | 12,000 ft-lbs | 15,000 ft-lbs |
| High Gear | 76 rpm | ~1,600 ft-lbs | 2,500 ft-lbs |
All torque values at 2,000 psi (138 bar) with 33.5 gpm flow rate. Based on Commercial M37X motor with 1.750″ gear width at normal oil temperature and viscosity.
Main Components
| Assembly | Description |
|---|---|
| Tong Case & Final Drive | Closed head design with split guide ring, roller bearings, drag ring assembly with jaw pins and drag plugs |
| Transmission | Two-speed power shift with adjustable clutch, ring gear cover, end plate, and pressurized oil bath |
| Clutch Assembly | Rockford-style adjustable clutch with slipper sleeve, adjustment collar, and anchor pin |
| Hydraulic System | Commercial M37X motor, torque control relief valve, operating valve with shifting lever |
| Hydraulic Lift (L600A) | Spring-cushioned lift cylinder, 6 feet of travel, hydraulic lines with self-sealing couplings |
| Backup Tool (BU600-A) | Wide jaw design reduces expendable cost by 75%, compatible with full jaw set range |
Jaw Sets & Size Range
Complete range of jaw sets available to cover 1-5/16″ through 6-5/8″ OD tubing and casing:
- 1″ Pins — Single Acting Jaws: 2-3/8″ to 6-1/16″ OD range with drag ring assemblies and jaw inserts
- 1″ Pins — Double Acting Jaws: 2-3/8″ to 4-1/2″ OD range for makeup and breakout without jaw reversal
- 1-1/4″ Pins — Backup Tool Jaws: 2-3/8″ to 3-11/16″ OD range for BU600-A backup tool
- Jaws are reversible — inserts can be turned around when worn to extend service life
- Drag ring assemblies available in multiple bore sizes with 1″ or 1-1/4″ jaw pins
Operation Highlights
- Makeup/Breakout: Jaws placed with “M” facing up for makeup, “B” facing up for breakout
- Torque Control: Adjustable relief valve on operating valve for precise makeup torque settings
- Power Shift: Change gears during operation without stopping the tong
- Safety: Anchor arm must be attached to anchor post before operation. Keep hands clear of tong head
- Installation: Spring-cushioned hydraulic lift with 6 ft travel, torque arm at 90° to power source
