GILL Model 600 Power Tong Spare Parts | NOV 600 Tong Replacement Parts

We supply high-quality spare parts and complete China-made GILL Model 600 Power Tongs for oilfield drilling and workover operations. Our power tong and replacement parts are compatible with NOV GILL Model 600 tubing tongs, ensuring reliable performance and long service life.

Our factory provides cost-effective alternatives to original NOV parts, widely used in drilling rigs, workover rigs, and oilfield maintenance operations.

Categories: Gill 600 Power Tong, Handing Tools, Uncategorized Tags: china power tong manufacturer, gill 600 power tong, gill 600 power tong parts, Hydraulic Power Tong, model 600 power tong spare parts, nov gill 600 tong parts, oilfield tubing power tong, power tong clutch assembly, power tong drag ring assembly, power tong jaw sets

Description
Reviews (0)

Description

GILL 600 Power Tong Specifications

Specification	Value
Size Range	1-5/16″ – 6-5/8″
Max Torque	15000 ft-lb
Hydraulic Pressure	2000 PSI
Speed	2 Speed (High / Low)
Application	Tubing & Casing Make-up / Break-out
Drive Type	Hydraulic Motor

These specifications are designed for oilfield tubing handling operations and drilling equipment systems.

Available GILL 600 Spare Parts

We supply full spare parts for Model 600 Power Tong, including:

Final Drive Parts

Final Drive Gear
Roller Chain
Roller Bearings
Oil Seal
Tong Case Assembly

Transmission Parts

Clutch Pack Assembly
Ring Gear & Pinion
Drive Shaft
Bearing Spacer
Hydraulic Motor

Clutch Assembly Parts

Clutch Body
Pressure Plate
Inner Disc
Outer Disc
Adjustment Collar
Clutch Spring

Tong Head Components

Drag Ring Assembly

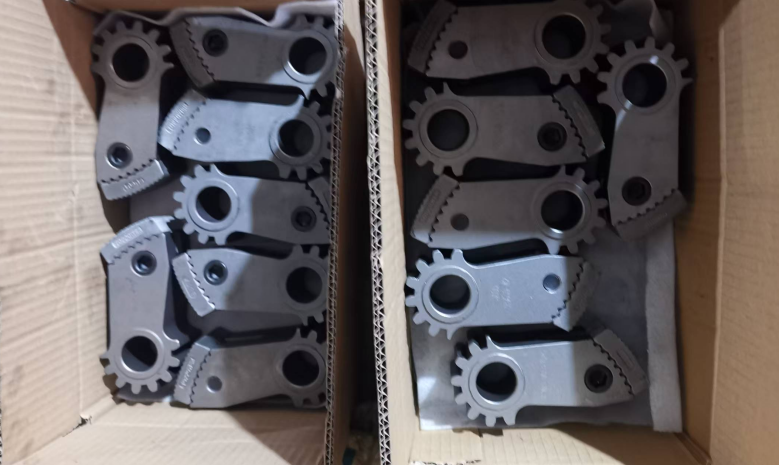

Jaw Sets

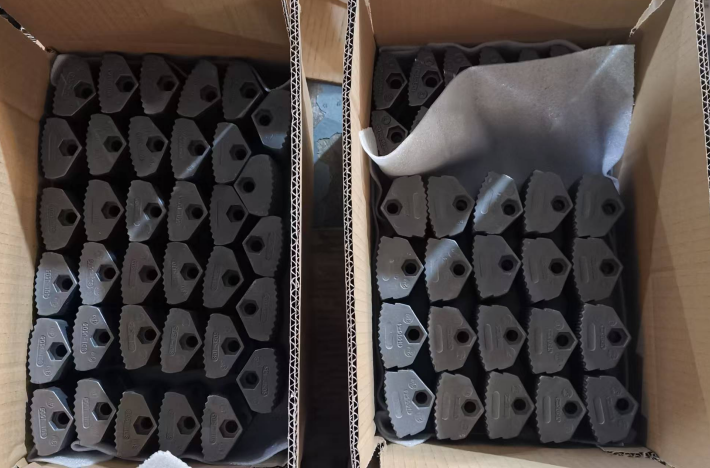

Inserts
Guide Bell
Cover Plate

Hydraulic System Parts

Hydraulic Valve
Relief Valve
Control Handle
Steel Tube Assembly
Check Valve

China Made Model 600 Power Tong

Our China-manufactured Model 600 Power Tong offers:

✔ Fully compatible with NOV GILL 600
✔ High torque performance
✔ Durable oilfield-grade materials
✔ Competitive factory pricing
✔ Fast spare parts availability

It is widely used in:

Oil drilling rigs
Workover rigs
Tubing running operations
Oilfield maintenance services

Advantages of Our Power Tong Products

Competitive Factory Price

Direct manufacturer supply reduces costs for oilfield contractors.

Full Spare Parts Support

Complete spare parts inventory ensures fast replacement.

Reliable Performance

Manufactured according to oilfield equipment standards.

Global Shipping

We supply to Middle East, Africa, Russia, South America, and Southeast Asia oilfields.

Why Choose Our Company

Professional oilfield equipment manufacturer
Strong engineering support
Custom spare parts manufacturing
OEM service available
Fast international logistics

FAQ

Q1: Are your spare parts compatible with NOV GILL Model 600?

Yes, our spare parts are fully compatible with NOV GILL Model 600 power tong equipment.

Q2: Do you supply complete power tong equipment?

Yes, we provide complete China-made Model 600 power tongs and spare parts.

Q3: What industries use the Model 600 Power Tong?

It is widely used in oilfield drilling, workover rigs, and tubing installation operations.

820311667-Tubing-Power-Tong-NOV-Gill-Model-600-Technical-Manual_13(1)

Part No	Description	Ref No	Qty
A600	Tong Case Assy	54-3-6	1
B500	Roller Bearing	93-7	2
B508	Bearing Cap (Bottom)	93-286-1	1
B606	Bearing Race	93-25-1	1
B607	Top Bearing Cap	93-2-1	1
BU517	Back-Up Tool Pin	147-42/147-43	1
D509	Drag Ring Sleeve	93-285	1
G600-A	Final Drive Gear	93-4-1	1
L617	Pull Pin	54-307	1
L617-3	Pull Pin for Lift	N/A	1
N503	Insert Single Acting 2-3/8–2-7/8	50-48-1	10
N507	Insert Screw & Nut (3/8 x 3)	11-683	10
O500	Oil Seal	58-47-1	2
O503	Oil Seal Protector	93-30	1
O504	Wear Band	58-100	2
R602	Base Ring	93-13-1	2
RC600	Roller Chain	59-13-1	1
W500-5	Flat Washer 3/4	11-255
W501-3	Lock Washer 3/8	11-196	42
X500-12	Capscrew 3/8 x 1	11-603	18
X500-14	Capscrew 3/8 x 2	14916	12
X500-18	Capscrew 3/8 x 2-1/4	11-160	12
Y500-5	Nut 3/8 Hex	11-76
Z506-7	Dowel Pin 3/8 x 1	11-285

Column 1

Column 2

Column 1 Value

Column 2 Value

Part No	Description	Ref No	Qty
A600	Tong Case Assy	54-3-6	1
A601	Ring Gear Cover	54-87	1
A602	Transmission End Plate	54-17-5	1
A603-A	Side Plate Assembly	55-295	1
A604	Side Plate for Chain	97-295	1
A607	Counter Balance	N/A	1
A608	Guard Cover	N/A	1
B503	Bearing	93-183	1
B601	Bearing	54-24	3
B602	Bearing	54-40	1
B604	Bearing	54-25-1	4
B605	Bearing	54-72	1
B609	Bearing Cap	54-23-1	1
B609-3	Bearing Cap	54-23	1
B610	Bearing Cap Back	N/A	1
B611-G	Motor Adapter	54-86-3	1
B612	Pinion Spacer	54-137-1	1
B612-2	Bearing Spacer	54-44-3	1
B612-3	Bearing Spacer	54-45-3	2
C600	Clutch Pack Assy	54-13-2	1
C601	Shifting Yoke	54-193	1
C602	Shifting Fork	54-28-3	1
C603	Clutch Shaft	54-14-5	1
C603-1	Clutch Shaft Nut	54-50-3	1
C618	Shifting Lever	N/A	1
G603	Ring Gear & Pinion	54-20-1	1
G604	High Drive Gear	54-10	1
G605-A	High Clutch Gear	54-9-2	1
G606-A	Low Clutch Gear	57-12-1	1
K500-3	Hypro Key 18	11-176	1
M600-1	Motor Standard Torque	54-164-1	1
P501-A	Oil Pump Assembly	119-202	1
R603-1	Spirolox Ring	11-901	1
S601	Drive Shaft	93-11	1
S600	Hub & Sprocket	54-21-1	1
W501-3	Lockwasher 3/8	11-196	1

Column 1

Column 2

Column 1 Value

Column 2 Value

Part No	Description	Ref No	Qty
C604	Anchor Pin	820-2	1
C605-A	Clutch Body	820-1	1
C606-A	Slipper Sleeve	820-11	1
C607	Adjustment Collar	820-12	2
C608	Pressure Plate	820-19	2
C608-1	Lock Bolt	821-10	4
C609	Inner Disc	820-14	16
C610	Outer Disc	820-9	18
C611	Thrust Plate	820-15	2
C612	Spring	820-16	6
C613	Pressure Plate Pin	820-20	6
C514	Dog of Clutch Body	819-17	6
C515	Dog Pivot Pin	819-18	6
C616	Split Ring	820-5	2
K500-4	Hypro Key 23	11-1142	6

Column 1

Column 2

Column 1 Value

Column 2 Value

Part No	Description	Ref No	Qty
166-16	1-1/2 Flat Washer		1
F500-10	ELL 3/8 FLR x 3/8 Pipe	11-1563	1
F501-4	ELL 3/8 HP Street	11-317	1
H502	Hose Assembly 3/8 x 66	12-130	1
L501	Lift Rod 1-1/2 x 78	123-3-1	1
L502-1	Top Cap Bushing	123-23	1
L502-A	Top Cap Assembly	123-1-1	1
L503	Working Barrel	123-2-1	1
L504-1	Cushion Spring	126-7-1	1
L505	Spring Housing	136-8-1	1
L507	Compression Spring Bolt	54-91-2	1
L508	Compression Spring	58-71	2
L509	Spring Guide	74-73	4
L510	Cup Retainer	123-4	1
L511	2-3/4 Cup	123-5-1	2
L512	Piston	123-9	1
L513	Bumper Washer	123-10	1
L514	Castle Nut	11-1076	1
L515	Clevis 1/2	11-148	1
L518	Pipe	123-14	1
L519	Hydraulic Pipe Cover	123-17	1
L606-1	Bottom Plate	N/A	1
O500-10	O-Ring	11-361	1
O500-16	O-Ring	11-356	2
O500-18	O-Ring	11-355	1
O500-20	O-Ring	11-353	1
O501-1	O-Ring Backup Ring	11-1367	2
O505	Oil Seal	N/A	1
Q500-1	Female Snap Coupler	N/A	1
Q500-2	Male Snap Coupler	11-947	1
Q500-3	Dust Cap	N/A	1
Q500-4	Dust Plug	N/A	1
R504-1	Snap Ring	11-816	1
V514	Check Valve	181-24-1	1
X500-39	Capscrew 5/8 x 2-1/4	11-1293	4
Y500-6	Nut 5/8	11-145	4
Y500-8	Nut 3/4	11-803	3
Z502-8	Cotter Pin	11-1153	3

Column 1

Column 2

Column 1 Value

Column 2 Value

Part No	Description	Ref No	Qty
A606	Valve Plate		1
C618-1	Shifting Lever	54-27	1
F501-13	Ell 1 HP Street	11-564	1
F503-10	Nipple 1 x Close HP	11-254	1
F503-17	Nipple 1 x 6 HP	11-337	1
M600-1	Motor M37X998	54-164-1	1
Q500-18	Dust Cap 16	11-560	1
T500-12	Pipe Steel Tube 1 Ell	11-963	4
T512	Tubing Return Tee	76-166	1
T600-A	Steel Tube Assy	10-636	1
T601-A	Steel Tube Assy	10-633	1
T602-A	Steel Tube Assy	10-638	1
V507-NSP	Relief Valve		1
V514	Check Valve for Lift	181-24-1	1
V516	Control Handle	867-23	2
V619-1	Valve Handle Linkage	54-117-1	4
V600	Hydraulic Valve	54-233-2	1

Column 1

Column 2

Column 1 Value

Column 2 Value

Part No	Description	Ref No	Qty
BU516	Dowel Pin 1/2 x 1-1/2	11-1335	10
BU606-3	Jaw Pin 1-1/4 Tapered	180-6-5	1
BU607	Backup Tool Gear	180-1-1	1
BU608	Top Cap	180-2-7	1
BU608-1	Plate Top Bottom		1
BU610	Swivel		1
BU612-A	Housing Assembly	180-5-11	1
BU614	Air Cylinder	214/217	1
BU615	Stirrup Spring		2
BU622	Backup Tool Stirrup	180-17-4	1
BU622-1	Adjusting Nut	147-13	1
BU623	Pull Pin	180-26	1
BU625-G	Anchor Pin	54-73
BU628	Anchor Spring	180-20	2
BU628-1	Spring Retainer		1
H519-48	Hose Assembly 1/4 x 48		2
J601	Backup Jaw	180-31	5
N507	Insert Screw & Nut	11-683	5
Q500-31	Male Coupling Half		2
W500-6	Flat Washer 1	11-577	1
W501-5	Lock Washer 1/2	11-806	10
W501-7	Lock Washer 3/4	11-117	10
X500-26	Capscrew 1/2 x 1	11-641	10
X500-45	Capscrew 3/4 x 3	11-985	8
X500-46	Capscrew 3/4 x 4	11-599	2
Y500-6	Nut 5/8	11-145	5
Y500-8	Nut 3/4	11-803	2
Z503-3	Grease Fitting 1/8	11-128	2
Z502-8	Cotter Pin	11-1153	1
Z506-7	Safety Pin	11-920	1

Column 1

Column 2

Column 1 Value

Column 2 Value
