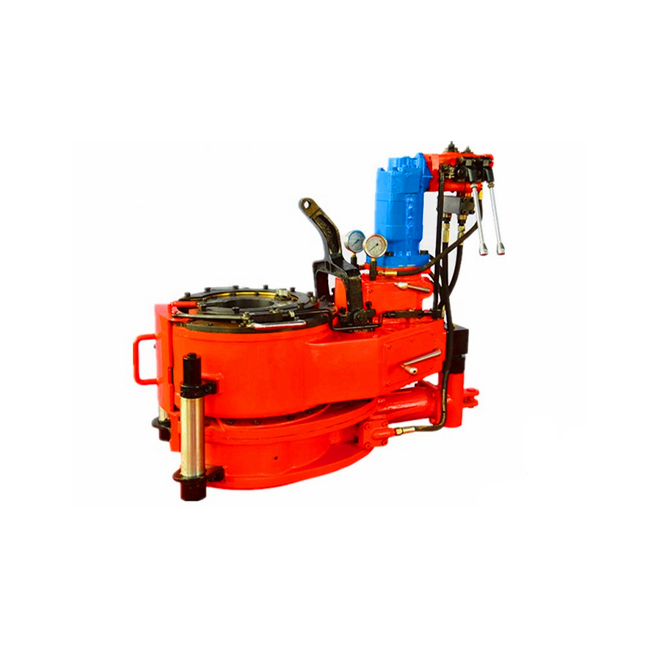

API Spec 7K Hydraulic Power Tong

Features:
1. Higher degree of mechanization and larger torque
2. With hydraulic lifting equipment
3. Performs safety, labor-saving and high-efficiency
4. Industrial standard SY/5074 and API Spec 7K Specification for Drilling Equipment.
5. Automatic Door Open / Close
6. Make-up / Break-out Drill Collars & Bottom Hole Assemblies

Description

API Spec 7K Hydraulic Power Tong

The series of hydraulic power tongs adopt inner cam rolling-up clamping mechanism, with a hydraulic backup tong. It is an ideal tool for makeup or breakout of various of tubings, and small sizes of casings and drill pipes in workover operation. The tong with extra long rod is available for backup tong to grip tubing body. The power tong also can be equipped with automatic torque control system.

Features:
1. Higher degree of mechanization and larger torque
2. With hydraulic lifting equipment
3. Performs safety, labor-saving and high-efficiency
4. Industrial standard SY/5074 and API Spec 7K Specification for Drilling Equipment.
5. Automatic Door Open / Close
6. Make-up / Break-out Drill Collars & Bottom Hole Assemblies

Model ZQ203-125 ZQ203-100 ZQ203-100A ZQ203-100B ZQ162-50 ZQ127-25
Size rang mm 127-203 121-203 121-203 121-203 85-162 65-127
in 3 1/2coupling 3 1/2coupling 3 1/2coupling 3 1/2coupling 2 3/8coupling 2 3/8coupling
8body 8body 8body 8body 5body 3 1/2coupling
Max.torque kN.M 125 100 100 100 50 25
ft.lbf 92200 73750 73750 73750 36880 18440
Speed of tong Hi. rpm 40 40 40 40 60 65
Speed of tong To. rpm 2.7 2.7 2.7 2.7 4.1 10.5
Hydraulic system
pressure rating
Mpa 20 16.6 16.6 16.6 16 12
Psi 2900 2400 2400 2400 2320 1740
Hydraulic system
pressure rating
L/min 114 114 114 114 120 180
gpm 30 30 30 30 32 48
Stoke of shifting
cylinder
mm 1500 1500 1500 / 1000 1000
in 59 59 59 / 39.4 39.4
Moving distance
of tong
mm / / / 0-3000 / /
in 0-59
Lifting distance
of tong
mm / / 0-485 0-1800 / /
in 0-19 0-31.5
Overall dimensions mm 1720×1050×1750 1700×1000×
1400
1700×1000×
1400
1750×1650
×2050
1570×800
×1190
1110×790
×820
in 68×41×69 67×39×55 67×39×55 69×65×81 62×31×47 44×31×32
Weight Kg 2600 2400 2500 3250 1500 620
Ib 5730 5290 5510 7165 3310 1360
