CAMTOP Gas Charging Valve — Reliable Pre-Charge Solution for Bladder Accumulators
The CAMTOP Gas Charging Valve is a precision-engineered pre-charge / gas valve designed for installation on bladder-type hydraulic accumulators used in BOP control systems, wellhead panels, and other high-pressure hydraulic circuits. Forged from high-strength carbon steel with a stainless steel valve stem and a corrosion-resistant brass cap, every valve is factory pressure-tested to deliver leak-tight service from 1,500 PSI up to 10,000 PSI.
Engineered to API-style accumulator mounting interfaces, the CAMTOP gas valve accepts industry-standard 7/8″-14 UNF charging and gas ports, allowing operators to pre-charge nitrogen with a standard gas charging kit. Viton® and NBR O-ring options cover standard and low-temperature service, while the stainless valve seat provides repeatable sealing performance over thousands of charge/discharge cycles.
CAMTOP Gas Charging Valve — standard 7/8″-14 UNF configuration
Key Features
- Wide Pressure Range: 1,500 PSI to 10,000 PSI working pressure covers 1-quart to 15-gallon bladder accumulators.
- Forged Carbon Steel Body: High-strength steel hex body with zinc-plated finish for corrosion resistance in harsh offshore and onshore environments.
- Brass Valve Cap: Precision-machined brass cap (AI-S-303) for repeatable nitrogen charging; stainless steel cap option (AI-S-303-SS-316) available for sour service (H₂S).
- Stainless Steel Valve Core: Type 304/316 stainless internal poppet (AI-S-304) provides leak-tight sealing and extended cycle life.
- Standard UNF Threads: 7/8″-14 UNF OD thread, 3/8″-24 UNF, 1/2″-20 UNF, 5/8″-18 UNF, and 0.305″-32 UNEF thread options for direct fit on all major accumulator brands.
- O-Ring Sealed: NBR (standard) or Viton® (high-temp) O-ring at the mounting interface; field-replaceable without removing the valve from service.
- 100% Factory Pressure Tested: Every valve is helium-leak tested at rated working pressure before shipment.
- Repairable Design: All wearing parts (valve core, cap, O-ring) available as individual replacement kits — no need to scrap the complete valve.
- API / ASME Compliant: Designed to ASME Boiler & Pressure Vessel Code Section VIII accumulator standards; suitable for API 16D BOP control systems.
- Traceable Manufacturing: Each valve serialized with material certifications (EN 10204 3.1) and pressure-test reports supplied on request.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Pre-charge / Gas Charging Valve for Bladder Accumulators |
| Working Pressure Range | 1,500 – 10,000 PSI (103 – 690 bar) |
| Accumulator Size Range | 1 Quart to 15 Gallon bladder accumulators |
| Body Material | Forged Carbon Steel, zinc-plated (SS 316 optional) |
| Valve Core | Stainless Steel 304 / 316 (AI-S-304) |
| Valve Cap (Standard) | Brass (AI-S-303) |
| Valve Cap (Stainless) | Stainless Steel 316 (AI-S-303-SS-316) — for sour service |
| O-Ring Seal | NBR (standard) / Viton® (high-temp) / EPDM (low-temp) |
| Standard Charging Thread (OD) | 7/8″-14 UNF (Type A) |
| Operating Temperature | -20°C to +120°C (NBR) / -10°C to +200°C (Viton®) |
| Compatible Media | Nitrogen (N₂), argon, dry air |
| Standard Compliance | ASME BPVC Section VIII, API 16D |
| Testing | 100% helium leak tested at rated pressure |
Component Parts
All CAMTOP gas charging valves are built from a standardized set of replacement parts, allowing quick field service with on-hand spares. Use the part numbers below to order individual components or complete repair kits.
| Item | Part Description | CAMTOP Part Number |
|---|---|---|
| 1 | Valve core (stainless poppet) | CT-S-304 |
| 2a | Valve cap (brass, standard) | CT-S-303 |
| 2b | Valve cap (stainless 316, sour service) | CT-S-303-SS-316 |
| 3 | Valve cap (1-quart size) | CT-1QT-303 |

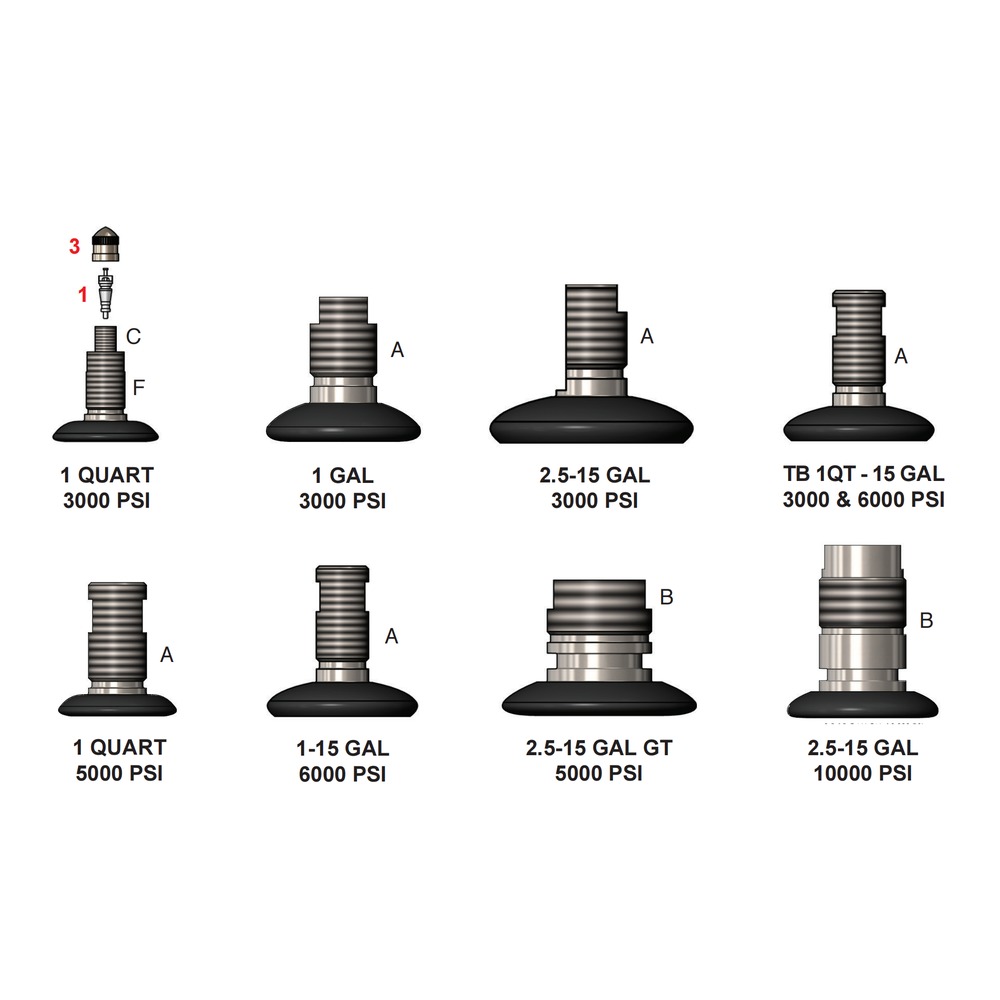

CAMTOP Gas Valve Size Variants — complete assemblies from 1 Quart to 15 Gallon accumulators, 3,000 to 10,000 PSI
OD Thread Specifications
CAMTOP gas charging valves are available in six OD thread configurations to match all major bladder-accumulator brands (Parker, HYDAC, Rexroth, Accumulators Inc., etc.). Custom thread designs including European (DIN, BSPP) available on request.
| Code | Thread Specification | Typical Application |
|---|---|---|
| A | 7/8″-14 UNF | Standard gas charging port (most US accumulators) |
| B | 2″-12 UNF | Large-bore high-pressure charging |
| C | 0.305″-32 UNEF | Schrader-type gas valve (poppet) |
| D | 3/8″-24 UNF | Small accumulator gas port |
| E | 1/2″-20 UNF | Medium accumulator gas port |
| F | 5/8″-18 UNF | Standard 1-quart accumulator |

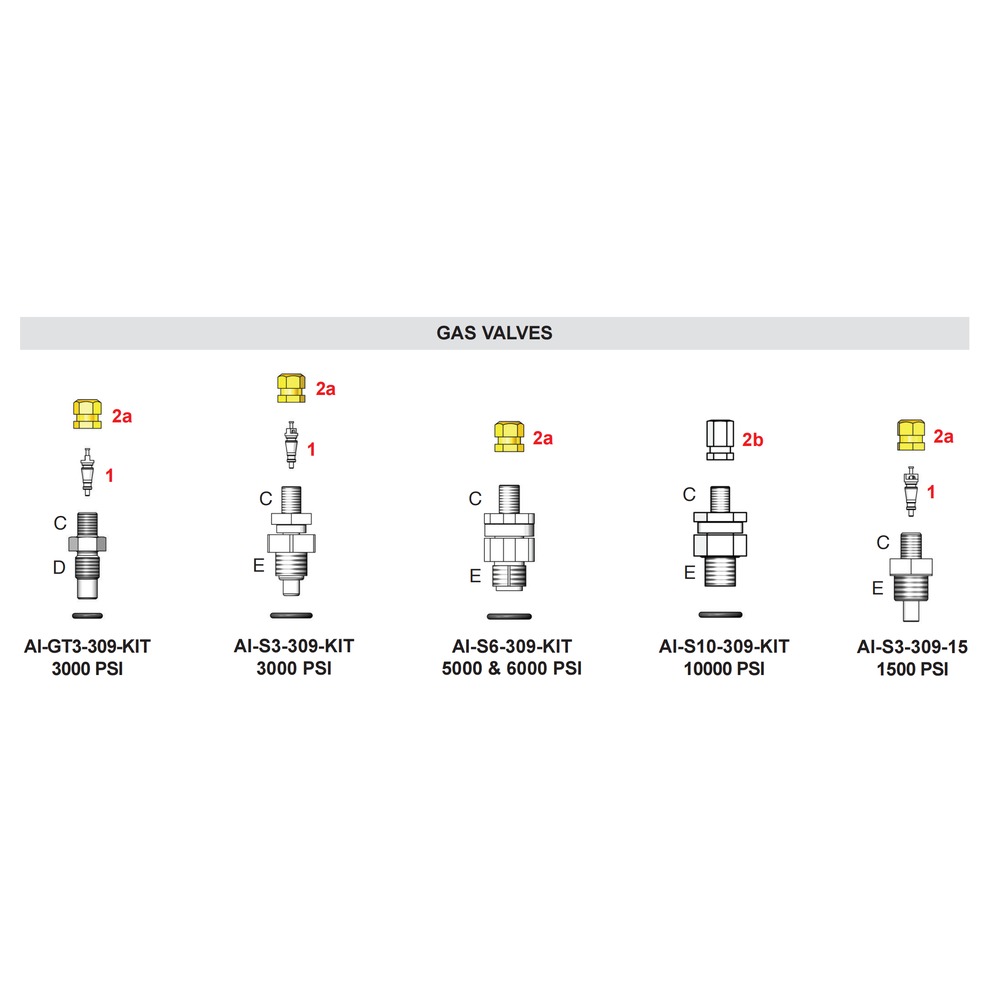

CAMTOP Gas Valve Repair Kit Variants — 5 standard kits covering 1,500 to 10,000 PSI service
Gas Valve Kit Variants
CAMTOP supplies pre-assembled repair kits for the most common accumulator size / pressure combinations. Each kit includes valve core, cap, and mounting O-ring ready for direct installation.
| CAMTOP Kit P/N | Pressure Rating | Accumulator Size | OD Thread |
|---|---|---|---|
| CT-1QT-303 | 3,000 PSI | 1 Quart | A (7/8″-14 UNF) |
| CT-1-303 | 3,000 PSI | 1 Gallon | A (7/8″-14 UNF) |
| CT-1-4-303 | 3,000 PSI | 2.5 – 15 Gallon | A (7/8″-14 UNF) |
| CT-1QT-8-303 | 5,000 PSI | 1 Quart | A (7/8″-14 UNF) |
| CT-TB-303 | 3,000 – 6,000 PSI | 2.5 – 15 Gallon (TB) | A (7/8″-14 UNF) |
| CT-S6-303 | 6,000 PSI | 2.5 – 15 Gallon | A (7/8″-14 UNF) |
| CT-GT8-303 | 5,000 PSI | 2.5 – 15 Gallon (GT) | A (7/8″-14 UNF) |
| CT-S10-303 | 10,000 PSI | 2.5 – 15 Gallon | A (7/8″-14 UNF) |
Working Principle
The CAMTOP gas charging valve uses a poppet-style check mechanism: the stainless steel valve core (item 1) is spring-loaded against a precision-machined seat. During factory or field pre-charging, a gas charging kit is connected to the valve cap; opening the cap lifts the poppet and allows nitrogen to flow into the gas side of the bladder accumulator. Once the desired pre-charge pressure is reached, the cap is closed and the poppet seats, providing a leak-tight seal.
During operation, the gas side of the accumulator maintains its pre-charge pressure indefinitely; the valve only opens when an external charging kit is attached. The O-ring seal at the mounting interface ensures no leakage of hydraulic fluid past the valve threads into the gas port.
Applications
- BOP Control Systems: Pre-charge nitrogen bottles on API 16D accumulator banks
- Wellhead Control Panels: Hydraulic accumulators for surface safety valves (SSV) and subsurface safety valves (SCSSV)
- Coiled Tubing Units: Hydraulic pressure storage for injector / reel control
- Snubbing & Workover Rigs: Accumulator pre-charge on hydraulic power units
- Offshore Production Platforms: HPU accumulators for ESD / ESD-1 / ESD-2 systems
- Onshore Drilling Rigs: Mud pump charge accumulators and BOP closing units
- Subsea Equipment: ROV-operated hydraulic accumulators (with SS 316 cap option)
- General Industrial: Any bladder-type hydraulic accumulator requiring periodic nitrogen pre-charge
Why Choose CAMTOP
- Direct Replacement: CAMTOP gas valves are dimensionally interchangeable with industry-standard Accumulators Inc. / HYDAC / Parker designs — no adapter or modification required.
- Higher Pressure Rating: Standard 10,000 PSI rating exceeds the 6,000 PSI industry default for 15-gallon accumulators.
- Material Upgrades: Optional SS 316 valve cap and Viton® O-ring for sour-service (NACE MR0175) and high-temperature applications.
- Spare Parts Stocked: Individual components (CT-S-304, CT-S-303) and complete repair kits available from stock — minimize downtime.
- Quality Documentation: Every valve ships with material certificates, pressure-test report, and serial number traceability.
- Custom Configurations: Special threads, materials, and pressure ratings available on request — minimum order quantity 10 pieces.
Ordering Information
To order the CAMTOP Gas Charging Valve, please specify:
- Accumulator size (1 quart / 1 gallon / 2.5–15 gallon)
- Working pressure rating (3,000 / 5,000 / 6,000 / 10,000 PSI)
- OD thread specification (A / B / C / D / E / F)
- Cap material (brass / SS 316)
- O-ring material (NBR / Viton® / EPDM)
- Quantity and required delivery date
For special configurations or engineering support, contact our sales team with your accumulator manufacturer and model number.
