CAMTOP Dual Split Wiper | Drill Pipe Wiper 17″ 19″ 22″ 26″ OD | API 7K Oilfield Rig Floor Cleaner

Description

CAMTOP Dual Split Wiper — Drill Pipe Wiper for Oilfield Rig Floor

CAMTOP Dual Split Drill Pipe Wiper is a high-quality rig-floor accessory designed to clean drilling mud, oil, debris, and fluids from the drill pipe as it is hoisted out of the hole. Manufactured from long-lasting, durable rubber compound (Natural Rubber or Nitrile NBR) that is resistant to water, oil-based drilling mud, mud acid, and alkali, with a steel reinforcing ring molded in place for added structural support. The dual-split (clam-shell) design allows the wiper to be installed or removed around an existing drill string without disassembling the rig — ideal for land and offshore drilling operations.

Available in OD sizes from 9″ to 26″ (including 17″, 19″, 22″, 26″) and inner bore sizes from 2 3/8″ to 5″ to fit standard drill pipe, drill collar, and casing connections. Manufactured in compliance with API 7K, API 6A, API 8C, ISO 9001 specifications.

---

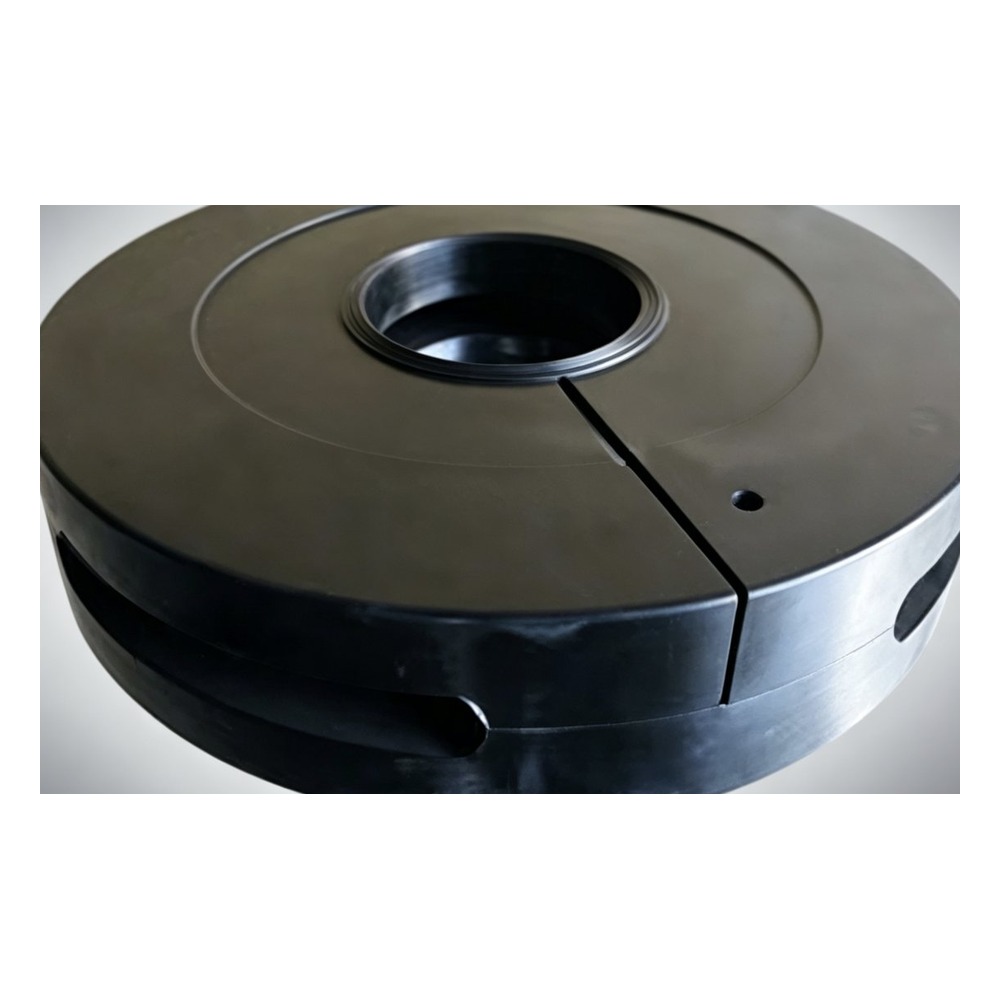

Product Image

---

Key Features

• Dual-Split (Clam-Shell) Design — Install or remove around existing drill pipe without cutting or threading; quick field assembly.
• Premium Rubber Compound — Made of Natural Rubber or Nitrile (NBR) for superior elasticity and long service life.
• Embedded Steel Ring — Carbon steel reinforcement molded in place prevents deformation under drilling-torque loads.
• Drilling Mud & Oil Resistant — Withstands water-based, oil-based, and synthetic-based drilling fluids.
• Temperature, Tear & Abrasion Resistant — Performs in harsh winter and high-temperature desert environments.
• Acid & Alkali Resistant — Suitable for corrosive mud chemistries and H₂S-bearing formations.
• Hardness >85 Shore A — Optimized rubber hardness for tight sealing without damaging pipe coating.
• API 7K Compliant — Manufactured under API Spec 7K / 6A / 8C quality system.
• Wide Size Range — OD 9″–26″, bore 2 3/8″–5″ cover all standard drill pipe and collar sizes.
• Easy Rig-Floor Installation — Two halves clamped together; no special tools or rig modifications required.

---

Technical Specifications

Item	Parameter
Product Name	Dual Split Drill Pipe Wiper
Brand	CAMTOP
Rubber Material	Natural Rubber or Nitrile (NBR)
Steel Material	Carbon Steel (embedded reinforcing ring)
Hardness (Shore A)	60 ± 5 (standard) / >85 (heavy-duty)
Tensile Strength	≥ 16 MPa
Elongation at Break	≥ 460 %
Outer Diameter (OD)	9″ – 26″ (standard: 17″, 19″, 22″, 26″)
Inner Bore Size	2 3/8″ – 5″ (covers standard drill pipe & collar)
Wiper Type	Dual Split (clam-shell) — also available in flat solid & low-profile
Color	Black (custom colors available)
Operating Temperature	-40 °C to +120 °C
Certifications	API 7K, API 6A, API 8C, ISO 9001
Application	Land & offshore oil drilling rig floor

---

Available Models & Sizes

No.	Wiper Type	Outer Diameter (OD)	Inner Bore Size	Rubber Material
1	Low Profile Pipe Wiper	9″	2 3/8″, 2 7/8″, 3 1/2″, 4″, 4 1/2″, 5″	Natural / Nitrile
2	Flat Solid Pipe Wiper	12″	2 3/8″, 2 7/8″, 3 1/2″, 4″, 4 1/2″, 5″	Natural / Nitrile
3	Split Dual Pipe Wiper	14″	2 3/8″, 2 7/8″, 3 1/2″, 4″, 4 1/2″, 5″	Natural / Nitrile
4	Flat Solid Pipe Wiper	17″	2 3/8″, 2 7/8″, 3 1/2″, 4″, 4 1/2″, 5″	Natural / Nitrile
5	Split Dual Pipe Wiper	17″	2 3/8″, 2 7/8″, 3 1/2″, 4″, 4 1/2″, 5″	Natural / Nitrile
6	Flat Solid Pipe Wiper	19″	2 3/8″, 2 7/8″, 3 1/2″, 4″, 4 1/2″, 5″	Natural / Nitrile
7	Split Dual Pipe Wiper	19″	2 3/8″, 2 7/8″, 3 1/2″, 4″, 4 1/2″, 5″	Natural / Nitrile
8	Split Dual Pipe Wiper	22″	2 3/8″, 2 7/8″, 3 1/2″, 4″, 4 1/2″, 5″	Natural / Nitrile
9	Split Dual Pipe Wiper	26″	2 3/8″, 2 7/8″, 3 1/2″, 4″, 4 1/2″, 5″	Natural / Nitrile

---

How It Works

The CAMTOP Drill Pipe Wiper is mounted on the rotary table or below the drill floor. As the drill string is hoisted up out of the hole, the rubber wiper blades engage the pipe OD and scrape off drilling mud, oil, water, and debris as the pipe passes through. This keeps the rig floor clean and prevents slippery, hazardous conditions for the crew, while also reducing mud loss and environmental contamination. The dual-split design allows the two halves to be wrapped around the drill pipe without breaking the string.

---

Applications

• Land drilling rigs (onshore oil & gas fields)
• Offshore drilling platforms & jack-up rigs
• Workover rigs and snubbing operations
• Geothermal drilling operations
• Mining exploration drill rigs
• Casing-running operations with large OD casing strings
• HPHT (high-pressure high-temperature) wells
• H₂S / sour-service environments (with NBR rubber option)

---

Why Choose CAMTOP

• API-Certified Manufacturing — Every wiper produced under API 7K / 6A / 8C quality system with full traceability.
• Direct Factory Pricing — Shanghai-based OEM manufacturer, no middleman markup.
• Fast Delivery — Common sizes in stock; custom sizes in 7–10 working days.
• Custom Rubber Compounds — Choose Natural Rubber (cost-effective) or NBR (oil/H₂S resistant) based on your well conditions.
• Custom Colors & Logo — Available for OEM branding at no extra MOQ surcharge.
• 24/7 Technical Support — Engineering team helps select the right size and rubber hardness for your drilling program.

---

Ordering Information

To order or request a quotation, please specify:

• Wiper type: Dual Split (Clam-Shell) (also available: Flat Solid, Low Profile)
• Outer diameter (OD), e.g., 17″, 19″, 22″, or 26″
• Inner bore size: 2 3/8″, 2 7/8″, 3 1/2″, 4″, 4 1/2″, or 5″
• Rubber material: Natural Rubber or Nitrile (NBR)
• Color / custom logo (optional)
