CAMTOP Ditch Magnet is a high-performance magnetic solids control tool that traps and removes metal particles from drilling mud, protecting mud pumps and downhole equipment.

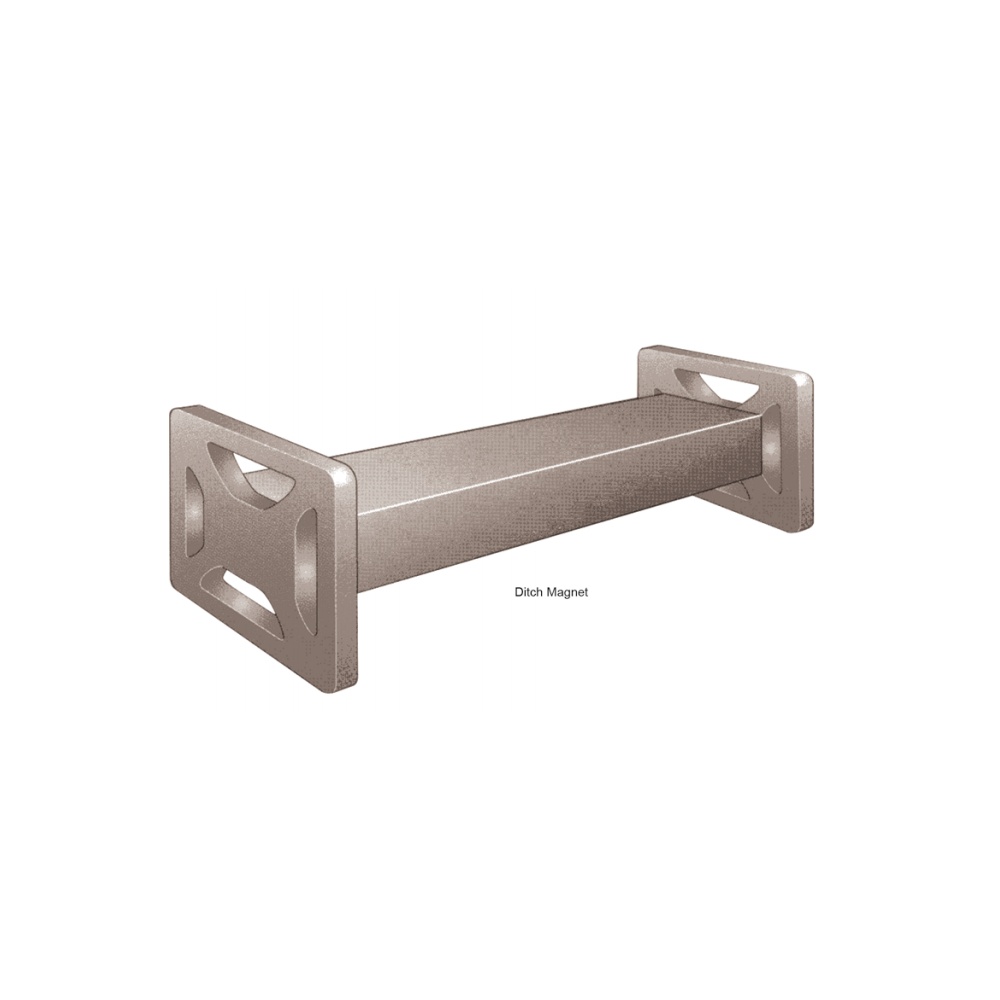

CAMTOP Ditch Magnet
Description
|
200×620 mm Outside Dimension |
1400 Gs Magnetic Pole Surface Strength |
19 Kg Weight |
Product Overview
CAMTOP Ditch Magnet is the best available and most effective means of trapping and removing metal particles from the drilling mud that the shale shaker will not catch. This unit captures all metals having magnetic attraction and holds them until they can be removed from the mud stream.
The magnet is particularly valuable during milling operations. Removal of mill cuttings and debris reduces wear of mud pumps and other equipment, as well as eliminating problems caused by the return downhole of harmful debris. It is equally effective during washover and fishing jobs.
Structure
CAMTOP Ditch Magnet is made of a high-performance magnet. It features simplicity, strong magnetic field, ruggedness and a high power-to-weight ratio.
Operation
No special instructions are required to operate the ditch magnet. It is most effective when suspended by soft line in the mud ditch. It may also be suspended by soft line in the shaker discharge.
When the cuttings or debris are enough and need to be removed, take off the magnet and open the inserting plate from the end with pull rod. Pull out the magnet pole body and the cuttings and debris will drop down. The magnet body shall be cleaned with fresh water and assembled again for use.
Maintenance
The unit should be cleaned several times per day depending on milling rate. Just remove the magnet and clean with fresh or salt water hose. Wipe all cuttings from the unit and return it to duty. The unit may be cleaned less often during other operations when return cuttings come slower.
Specifications – Ditch Magnet
| Outside Dimension (mm) | Magnetic Effective Area (mm) | Strength in Magnetic Pole Surface (Gs) | Strength from 10 mm to Magnet Pole Surface (Gs) | Weight (Kg) |
|---|---|---|---|---|
| 200×620 | 125×500 | 1400 | 700 | 19 |
Key Features
|
High-Performance Magnet Strong magnetic field delivers effective capture of ferrous metal particles from drilling mud. |
Simple & Rugged Design Built for harsh drilling environments with minimal parts and high power-to-weight ratio. |
|
Easy to Operate No special instructions required; simply suspend in the mud ditch or shaker discharge. |
Quick Cleaning Pull-rod design allows fast removal of captured debris and easy fresh-water rinse. |
|
Protects Downhole Equipment Reduces wear on mud pumps and other equipment by removing harmful metal debris. |
Versatile Applications Effective during milling, washover, fishing and routine drilling operations. |
When Ordering Please Specify
| ✔ Outside dimension and magnetic effective area |
| ✔ Required magnetic surface strength (Gs) |
| ✔ Quantity and lifting / suspension arrangement |
Applications
| ▶ Milling operations | ▶ Washover jobs | ▶ Fishing operations |
| ▶ Shale shaker discharge | ▶ Mud ditch metal recovery | ▶ Mud pump protection |
Contact CAMTOP for a QuoteGet competitive pricing and technical support for CAMTOP oilfield tools.
