Back Pressure Valve – Type ‘H’ BPV for Tubing Hangers
Description
CAMTOP Type ‘H’ Back Pressure Valve (BPV)
The CAMTOP Type ‘H’ Back Pressure Valve (BPV), also known as an ‘H’ BPV, is a type of check valve installed in tubing hangers to isolate well production. Type H back pressure valves are designed to hold pressure from below and enable fluids to be pumped from above as needed for well-control.
Capabilities of CAMTOP Type ‘H’ BPVs
- API tubing sizes from 2″ to 6-5/16″, up to 20KSI working pressure
- Non-Monogrammed and API Monogrammed — M/C: AA-HH, T/C: P-U, PR2
What is an ‘H’ BPV designed for?
- Balance pressure at removal from the tubing hanger
- Corrosion resistance — NACE and API 6A compliant
- Enhanced load-bearing — QPQ Nitride
- High-pressure seal performance — Viton, HSN, and Nitrile seals
CAMTOP Type ‘H’ Back Pressure Valves are test and field-proven, with an equivalent service history of over 35 years in wellhead manufacturers and repair facilities worldwide.

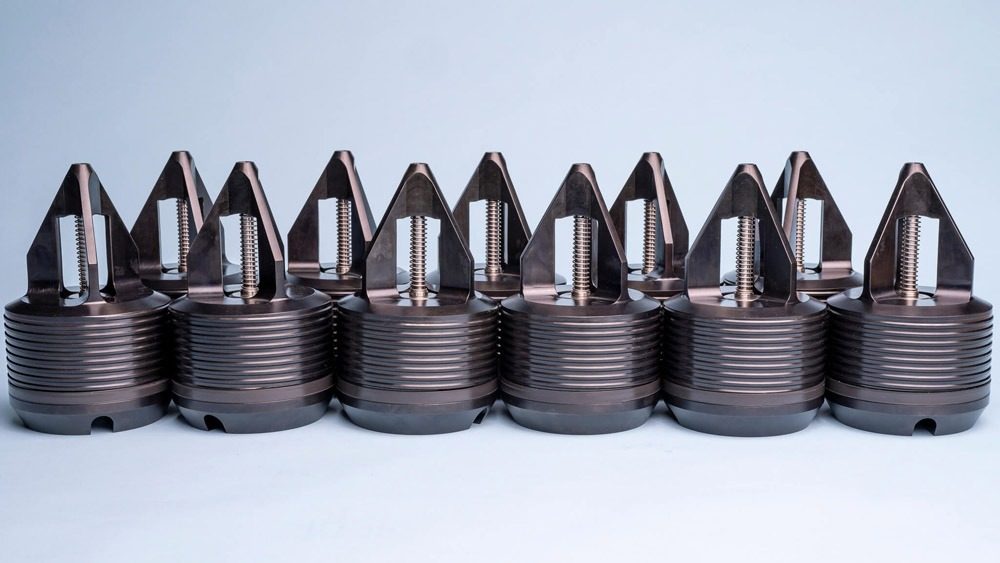

Product Images
‘H’ Back Pressure Valve Specifications
Standard — PSL N/A, PR1, Non-Monogrammed (QPQ Nitride, Viton Seals, Inconel Spring)
| Size (Nominal) | Part # |
|---|---|
| 1-3/4″ Max OD – 1.775″ (1.00-8UN BOX THD) | A1275 |
| 2″ Slimline, Max OD – 2.020″ | A1278 |
| 2″ Max OD – 2.020″ | A1280 |
| 2-1/2″ Max OD – 2.485″ | A1285 |
| 3″ Max OD – 3.030″ | A1290 |
| 3-1/2″ Max OD – 3.530″ | A1292 |
| 4″ Max OD – 3.980″ | A1295 |
| 4-3/32″ Max OD – 4.085″ | A1300 |
| 4-1/4″ Max OD – 4.250″ | A1294 |
| 4-3/8″ Max OD – 4.370″ | A1288 |
| 4-3/4″ Max OD – 4.730″ | A1324 |
| 5″ Max OD – 4.980″ | A1334 |
| 5″ Max OD – 5.010″ | A1405 |
| 6″ (4 TPI) Max OD – 5.980″ | A1368 |
| 6-5/32″ (4 TPI) Max OD – 6.135″ | A1395 |
| 6-1/16″ (2 TPI) Max OD – 6.0575″ | A1370 |
| 6-1/8″ (2 TPI) Max OD – 6.1205″ | A1375 |
| 6-5/16″ (2 TPI) Max OD – 6.3075″ | A1380 |
API Monogrammed — PSL N/A, PR2, Complete with Hydro-Test
| Size (Nominal) | Part # |
|---|---|
| 1-3/4″ Max OD – 1.775″ (1.00-8UN BOX THD) | A1275-1 |
| 2″ Slimline, Max OD – 2.020″ | A1278-1 |
| 2″ Max OD – 2.020″ | A1280-1 |
| 2-1/2″ Max OD – 2.485″ | A1285-1 |
| 3″ Max OD – 3.030″ | A1290-1 |
| 3-1/2″ Max OD – 3.530″ | A1292-1 |
| 4″ Max OD – 3.980″ | A1295-1 |
| 4-3/32″ Max OD – 4.085″ | A1300-1 |
| 4-1/4″ Max OD – 4.250″ | A1294-1 |
| 4-3/8″ Max OD – 4.370″ | A1288-1 |
| 4-3/4″ Max OD – 4.730″ | A1324-1 |
| 5″ Max OD – 4.980″ | A1334-1 |
| 5″ Max OD – 5.010″ | A1405-1 |
| 6″ (4 TPI) Max OD – 5.980″ | A1368-1 |
| 6-5/32″ (4 TPI) Max OD – 6.135″ | A1395-1 |
| 6-1/16″ (2 TPI) Max OD – 6.0575″ | A1370-1 |
| 6-1/8″ (2 TPI) Max OD – 6.1205″ | A1375-1 |
| 6-5/16″ (2 TPI) Max OD – 6.3075″ | A1380-1 |
Inconel — All API 6A Material Classes, Non-Monogrammed (Inconel Valve, Viton Seals, Inconel Spring)
| Size (Nominal) | Part # |
|---|---|
| 1-3/4″ Max OD – 1.775″ (1.00-8UN BOX THD) | I1275 |
| 2″ Slimline, Max OD – 2.020″ | I1278 |
| 2″ Max OD – 2.020″ | I1280 |
| 2-1/2″ Max OD – 2.485″ | I1285 |
| 3″ Max OD – 3.030″ | I1290 |
| 3-1/2″ Max OD – 3.530″ | I1292 |
| 4″ Max OD – 3.980″ | I1295 |
| 4-3/32″ Max OD – 4.085″ | I1300 |
| 4-1/4″ Max OD – 4.250″ | I1294 |
| 4-3/8″ Max OD – 4.370″ | I1288 |
| 4-3/4″ Max OD – 4.730″ | I1324 |
| 5″ Max OD – 4.980″ | I1334 |
| 5″ Max OD – 5.010″ | I1405 |
| 6″ (4 TPI) Max OD – 5.980″ | I1368 |
| 6-5/32″ (4 TPI) Max OD – 6.135″ | I1395 |
| 6-1/16″ (2 TPI) Max OD – 6.0575″ | I1370 |
| 6-1/8″ (2 TPI) Max OD – 6.1205″ | I1375 |
| 6-5/16″ (2 TPI) Max OD – 6.3075″ | I1380 |
Repair Kits — Standard (Piston, Stem, Spring, BPV OD Seal)
| Size (Nominal) | Part # |
|---|---|
| 1-3/4″ | R1275 |
| 2″ Slimline | R1278 |
| 2″ | R1280 |
| 2-1/2″ | R1285 |
| 3″ | R1290 |
| 3-1/2″ | R1292 |
| 4″ | R1295 |
| 4-3/32″ | R1300 |
| 4-1/4″ | R1294 |
| 4-3/8″ | R1288 |
| 4-3/4″ | R1324 |
| 5″ Max OD 4.980″ | R1334 |
| 5″ Max OD 5.010″ | R1405 |
| 6″ (4 TPI) | R1368 |
| 6-5/32″ (4 TPI) | R1395 |
| 6-1/16″ (2 TPI) | R1370 |
| 6-1/8″ (2 TPI) | R1375 |
| 6-5/16″ (2 TPI) | R1380 |
Repair Kits — Inconel
| Size (Nominal) | Part # |
|---|---|
| 1-3/4″ | R1275-I |
| 2″ Slimline | R1278-I |
| 2″ | R1280-I |
| 2-1/2″ | R1285-I |
| 3″ | R1290-I |
| 3-1/2″ | R1292-I |
| 4″ | R1295-I |
| 4-3/32″ | R1300-I |
| 4-1/4″ | R1294-I |
| 4-3/8″ | R1288-I |
| 4-3/4″ | R1324-I |
| 5″ Max OD 4.980″ | R1334-I |
| 5″ Max OD 5.010″ | R1405-I |
| 6″ (4 TPI) | R1368-I |
| 6-5/32″ (4 TPI) | R1395-I |
| 6-1/16″ (2 TPI) | R1370-I |
| 6-1/8″ (2 TPI) | R1375-I |
| 6-5/16″ (2 TPI) | R1380-I |
Why Choose CAMTOP
- Full size range — 1-3/4″ to 6-5/16″ up to 20KSI working pressure
- API Monogrammed or non-monogrammed — material classes AA-HH, temp P-U, PR1/PR2
- QPQ Nitride enhanced load-bearing, Viton/HSN/Nitrile seals, Inconel spring
- Repair kits in stock for every size — standard and Inconel trims
- Factory hydro-test — every API monogrammed valve is hydro-tested before shipment
- 24/7 technical support — direct engineering line
Ordering Information
Specify the part number from the size chart above, or contact us with your tubing size, working pressure and material trim requirements.
